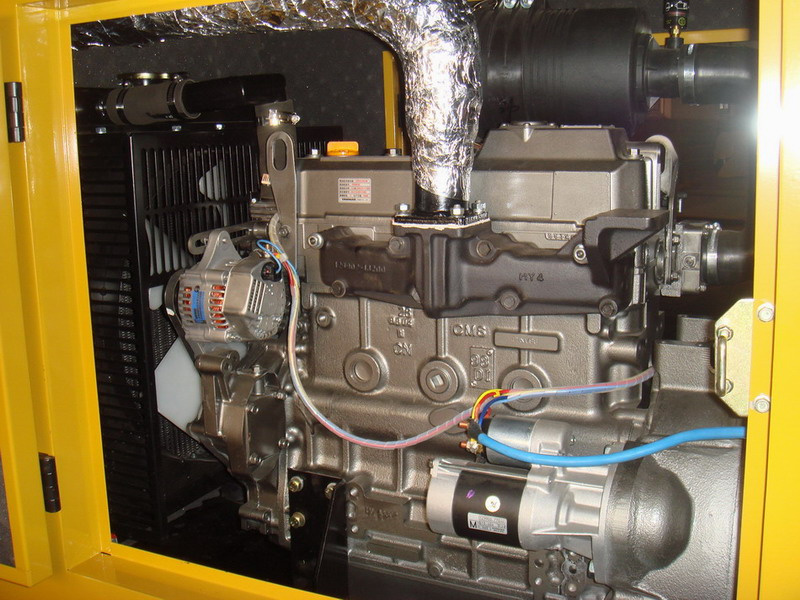

20KW/25KVA Yanmar Silent Generator (HF20Y2)
Yanmar Diesel Generator/Diesel Generator Set/Generators Power From 8KVA up to 60KVA, with compacted structure and simple operation and the feature of environmental friendly, high reliability and fuel efficiency.
It is compliant with EU and EPA emission standard. As small power genset, it is widely used in the area of industry, railway, construction and so on. Yanmar engines are imported from Japan.
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
General Data Sheet
|
Japan Yanmar Generators 50HZ / 60HZ |
|
MODEL OF GENERATOR |
HF08Y2 |
HF10Y2 |
HF12Y2 |
HF16Y2 |
HF20Y2 |
HF24Y2 |
HF30Y2 |
HF40Y2 |
HF50Y2 |
|
Continuous output of generator |
8KW |
10KW |
12KW |
16KW |
20KW |
24KW |
30KW |
40KW |
50KW |
|
DIESEL ENGINE |
Model |
3TNV76-GGE |
3TNV82A-GGE |
3TNV88-GGE |
4TNV88-GGE |
4TNV84T-GGE |
4TNV98-GGE |
4TNV98-GGE |
4TNV98T-GGE |
4TNV106T-GGE |
|
Type |
In-line, 4-stroke, direct injection |
|
No. of cylinder |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Induction system |
Naturally aspirated |
Turbocharged |
Naturally aspirated |
Turbocharged |
Turbocharged |
|
Displacement(L) |
1.331 |
1.642 |
1.496 |
1.995 |
3.319 |
3.319 |
3.319 |
3.319 |
4.412 |
|
Compression ratio |
19.2: 1 |
19.1: 1 |
18.9: 1 |
18.9: 1 |
18.5: 1 |
18.5: 1 |
18.5: 1 |
18.5: 1 |
18: 01 |
|
Bore*Stroke(mm) |
76 * 84 |
82 * 84 |
88 * 90 |
88 * 90 |
84 * 90 |
98 * 110 |
98 * 110 |
98 * 110 |
106 * 125 |
|
Rated output(KW) |
9 |
11 |
13.2 |
18 |
21 |
34.1 |
34.1 |
41.4 |
56 |
|
Rated speed(rpm) |
1500 |
|
Fuel consumption (g/kw. h) |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
≤ 218 |
|
Lubricant capacity(L) |
5.5 |
6.7 |
6.7 |
7.4 |
10.5 |
10.5 |
10.5 |
10.5 |
14 |
|
Coolant capacity(L) |
1.8 |
2 |
2 |
2.7 |
4.2 |
4.2 |
4.2 |
4.2 |
6 |
|
Cooling method |
positive water cooling cycle |
|
Starting method |
D. C. 12V Electric starting |
|
ALTERNATOR |
Model |
WHI164B |
WHI164C |
WHI164D |
WHI184E |
WHI184F |
WHI184G |
WHI184H |
WHI224D |
WHI224E |
|
Rated power |
8KW |
10KW |
12KW |
16KW |
20KW |
24KW |
30KW |
40KW |
50KW |
|
Rated voltage(V) |
220; 230 (380/220; 400/230; 415/240; etc. ) |
|
Rated current(A) |
According to the selected voltage and phase |
|
Rated frequency |
50HZ |
|
Rated speed(rpm) |
1500 |
|
Insulation class |
H |
|
Power factor |
1 for single phase / 0.8 lagging for 3-phase |
|
Phase connection |
1-phase or 3-phase |
|
Winding connection |
3 or 4 -wire connected (12-wire for 3-phase) |
|
Excitation method |
Brushless |
|
Voltage regulation |
AVR |
|
BATTERY |
Included |
|
CONTROL PANEL |
V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp. and pressure gauges, indicating lamp, hour meter, key starter, etc. |
