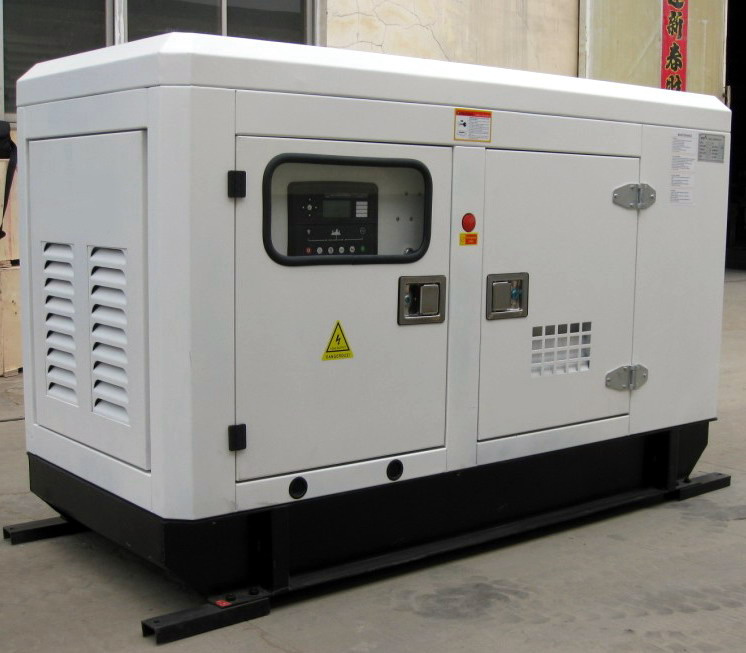

20kw (25kVA) Silent Generator

20KW(25KVA) Silent Generator

Generator/Diesel Generator/Diesel Generator Set/Generator Set/Generating Set/Diesel Generating Set/Power Generator/Silent Generator/Soundproof Generator/Diesel Genset/Genset

1, Quanchai Diesel Engine
2, Stamford/Leroy-somer/Marthon Alternators
3, CE / ISO Approved
4, 1-Year Warranty

Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
China famous brand Quanchai diesel engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options.

Control Systems

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

General Data Sheet
