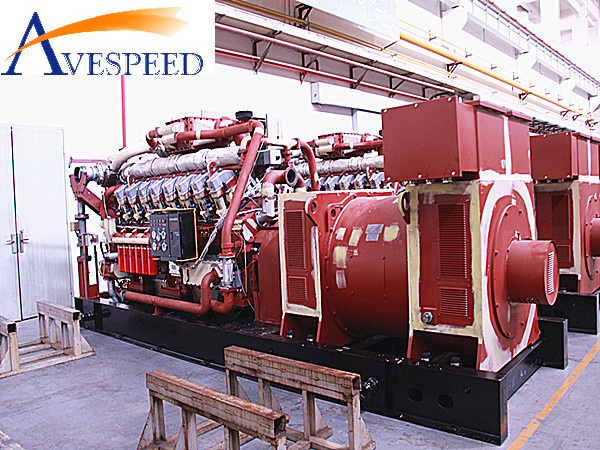

20kw-1000kw Reliable Running Diesel Generator

20kw-1000kw Reliable Running Diesel Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set/sets
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
20kw-1000kw reliable running diesel cheap generator for sale

All engine rating data based on ISO 3046/1;
Reference conditions: Ambient 25 centigrade, Total Barometric Pressure: 100kPa, Relative humidity 30%, Intercooler coolant in: 25 centigrade;
Fuel characteristics: Related density: 0.84+-0.005, Lower heat value: 42700kj/kg, Consumption tolerance: +5%;
Power: An overload of 10% is permitted for one hour in every twelve hours of operation.
Characteristics:
1. Meet with: ISO8528, IEC60034, ISO3046
2. Marine medium speed engine driven
3. Brushless self excited alternator with AVR
4. Application: Marine gen-set, Stationary gen-set and Containerized gen-set
5. Easy installation, Low noise, Low operation cost.

Avespeed- generator sets adopt imported engine originally manufactured by Carterpillar and Rolls-Royce, USA, UK. This engine adopts the latest technology and high quality grind-proof materials to make sure first level products, furthermore matches the Leroy Somer alternator manufactured by EMERSON Group, strictly tests before sale, the technology and quality can reach the best international standard. It features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission, some models can reach EPAII, III Emission standard, which an ideal power system of prime and standby usage.

Adopting 3phases&4lines output, with output 380V/220V, frequency 50Hz/60Hz, power factor 0.8, neutral point to earth and protection performance comply with NEMA1 and IP22 standard.
MAIN SPECFICATIONS OF PERKINS RANGE GENSETS
GENSET Continuous Model P68 P72 P80 P91 P108
Continuous Output 68/85 72/90 80/100 91/114 108/135
TECHNICAL DATA
DIESEL ENGINE MODEL 1006TGA 1006TG1A 1006TG2A 1006TAG 1006TAG
Engine Characters Water-cooled, in line, 6-cylinders, 4stroke, direct injection, Dry cylinder liner, 1500rpm
Constant Output(KW) 84.3 92.3 121
Standby Output(KW) 92.7 102 134
Aspiration Turbocharged Turbocharged Turbocharger and aftercooled
Bore(mm)xStroke(mm) 100x127
Cubic Capacity(liters) 5.99
Piston Speed(m/s) 6.35
Compression Ratio 16.0:1 17.0:1
Stability bandwidth ≤±0.8% ≤±0.25%
Steady governing rate ≤5% ≤1%
Acoustic Pressure ≤91.2dBA(at full load,1m distance) 93.4dBA
Exhaust temperature() 545 550 571
Exhaust Back pressure 6kPA
Air Induction System Dry element type with back pressure warning indication
Lube Temperature/capacity 125ºC/16.1L(MAX) 125ºC/19L(MAX)
BMEP:Kpa(prime power) 1283 1404 1964
Heat Rejection to Exhaust 59.1KW/min 66.5KW/min 115KW/min
Heat Rejection to Cooling 56kw/min 63KW/min 65.5/min
Cooling System Volume 27.7L 27.7L 37.2L
Cooling Air Flow 135m3/min 135m3/min 154m3/min
Combustion Air Flow 5.74m3/min 5.74m3/min 8.38m3/min
Exhaust Gas Flow 15.5m3/min 16.24m3/min 24.14m3/min
Min. Fuel Consumption ≤205g/kw.h
ALTERNATOR MODEL YHG224G YHG274C YHG274C YHC274D YHG274E
Continuous Output(KW/KVA) 68/85 80/100 800/100 91/114 112/140
Power Efficiency 90.2% 90.4% 90.4% 90.8% 91.7%
Voltage Regulation ±1.0% with 4% engine governing
Waveform Distortion No load≤1.5%, and non-distorting balanced linear load≤5%
THF/TIF ≤2%/≤50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Key Word: Generator for Sale
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
