20kw-1000kw Biogas Gas Generator/ Natural Gas Generator/ Biomass Generator
| Price: |
US $ 13500/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
20KW-1000KW Biogas Gas Generator/Natural Gas Generator/Biomass Generator/CNG Gas generator/LNG Gas Generator/LPG Gas GeneratorCamda H series gas genset is based on the famous diesel genset parts, then adopting the leading technology for gas genset of the world. Its main parts, from material to producton all strictly according with the international standard. Special design and processing technics make the genset more stable and endurable. Installed with special High-precision Governor, Camda gas genset has the performance of high precision, strong anti-sudden load rising ability and short time recovering.
Power range: 20KW-1000KW
Frequency:50HZ or 60HZ
Speed:1500RPM or 1800RPM

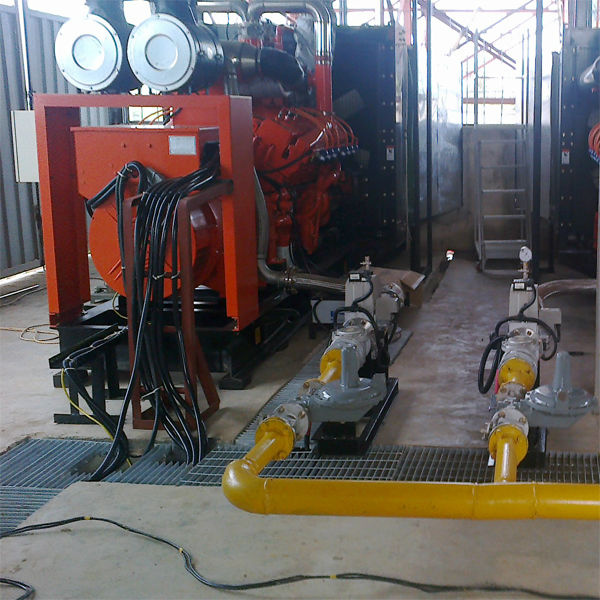

Gas Power Generation Project Pictures
| Genset Model | KDGH25-G | KDGH50-G | KDGH100-G | KDGH120-G | KDGH500-G |
| Genset Rated Power (kW/KVA) | 25/31 | 50/63 | 100/125 | 120/150 | 500/625 |
| Engine Model | HG4B | HG6B | HGN14 | HGN14 | HGK38 |
| Engine Rated Power (KW) | 33 | 56 | 135 | 135 | 550 |
| Type | Inline, four stroke, electronic-control spark plug ignition, water-cooling, dry cylinder jacket, premix proper ratio of air and gas before combustion | Inline, four stroke, electronic-control spark plug ignition, water-cooling, wet cylinder jacket, premix proper ratio of air and gas before combustion | Vee, 12 cycle, inter-cooling, Turbocharger, wet cylinder jacket, premix proper ratio of air and gas before combustion |
| Cooling mode | Radiator fan cooling for closed-type cooling mode,
or heat exchanger water cooling for cogeneration unit |
| Cylinders | 4 | 6 | 6 | 6 | 12 |
| Bore x Stroke(mm) | 102*120 | 102*120 | 140*152 | 140*152 | 159*159 |
| Displacement (L) | 3.92 | 5.88 | 14 | 14 | 37.8 |
| Compression ratio | 11.5:1 | 11.5:1 | 11.5:1 | 11.5:1 | 9:1 |
| Rated speed (r/min) | 1500 |
| Fuel | Natural gas or biogas |
| Gas consumption ratio (g/kWh ) | ≤ 230 g/kWh ( 0.30 m3/kW@h)(97% natural gas) |
| Ignition order | 1-3-4-2 | 1-5-3-6-2-4 |
| Idling speed(r/min) | 700 |
| Oil recommended | SAE 15W/40CD CNG special lube oil |
| Oil consumption | ≤1.0g/kW.h |
| The highest exhaust(ºC) | ≤600 |
| Prod Model: |
H SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Fuel Type: |
Biogas/Methane Gas/Natural Gas/CNG/LPG |
| Gas Engine: |
Cummins/Perkins |
| Gas Generator: |
Leroy Somer/Stamford |
| Certificate: |
CE, ISO9001, ISO18001, ISO14001, SGS.etc. |
| Warranty Time: |
1 Year or 2000 Running Hours |
| Gas Source: |
Gas |
| Power: |
20-1000kw |
Camda New Energy Equipment Co., Ltd Established in 1998, Camda began to engage in manufacturing and servicing DIESEL GENERATOR, supplying a wide range of products, such as Cummins, Perkins, Lovol, Daewoo, Deutz, etc. With production reaching 5000 pieces annually, Camda diesel generator includes:
Cummins: Prime power 18kw (22.5kVA) - 1080kw(1350kVA)
Perkins: Prime power 8kw (10kVA) - 1800kw ( 2250kVA)
Daewoo: Prime power 130kw (162kVA) - 600kw (750kVA)
Deutz: Prime power 20kw (25kVA) - 120kw (150kVA)
For GAS GENERATOR, presently Camda can supply natural gas and biogas generator from GE Jenbacher, Wachesha, Daewoo. We are the most important distributor of GE Jenbacher and Wachesha in China. Our own brand gas generator, Camda H series, is developed by us in cooperation with Cummins and has been displayed at Shanghai Expo 2010. Camda gas genset is in service in UK, Russia, Italy, and many other countries, with power ratings:
Camda H series: 24kw (30kVA) - 500kw (625kw)
Daewoo: 100kw (125kVA) - 310 (387.5kVA)
Camda also is an experienced package system supplier engaged in biogas production and power generation. We can take projects from conception to implementation, including design, project management, manufacturing, installation and commissioning. Camda's biogas power plant covers landfill, farm waste, and food waste.
Accomplished around 170 biogas power plants in China.
Investing and operating 2 landfill site (CDM project), fitted up with gas generator with power output of 10 MW.
Built up a demo project processing 10 tons/day of food waste.
