| Price: | Negotiable |
|---|---|
| Trade Terms: | by Sea |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
| Model | Prime Power | Standby Power | ||||||||
| VP20E | 16.2KW/20.3KVA |
17.82KW/22.33KVA |
||||||||
| Power Output at Different Voltage | ||||||||||
|
Voltage (V) |
Frequency (Hz) |
Phases | Power Factor (cos) |
Standby Current (A) |
Prime Current (A) |
Standby Power (KW/KVA) |
Prime Power (KW/KVA) |
|||
| 440/254 | 50 | 3 | 0.8 | 36.62 | 33.2 | 17.8/22.3 | 16.2/20.3 | |||
| 400/230 | 50 | 3 | 0.8 | 40.29 | 36.62 | 17.8/22.3 | 16.2/20.3 | |||
| 380/220 | 50 | 3 | 0.8 | 42.4 | 38.55 | 17.8/22.3 | 16.2/20.3 | |||
| 220/127 | 50 | 3 | 0.8 | 73.25 | 66.59 | 17.8/22.3 | 16.2/20.3 | |||
|

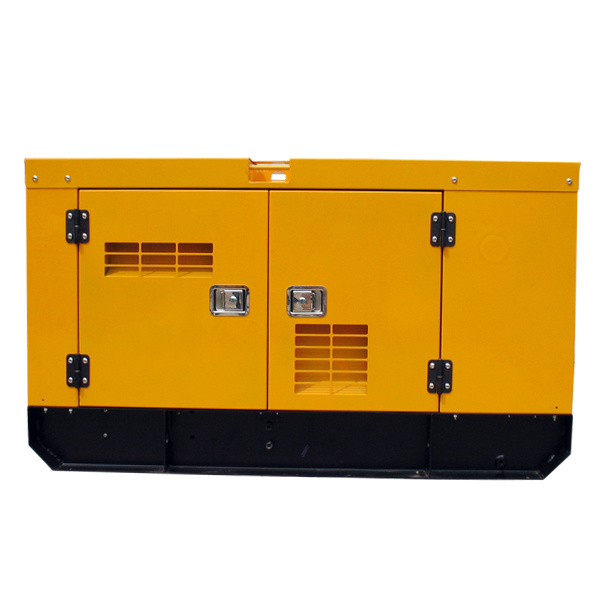

Dimensions(Silent type) |
1650× 780× 950(mm) | |||||||||
| Net Weight | 650kg | |||||||||
| Engine Data | ||||||||||
| Brand / Model | Perkins/404D-22G | |||||||||
| Number of Cylinder | 4 | |||||||||
| Cylinder Arrangement | Vertical In-line | |||||||||
| Cycle | 4 Stroke | |||||||||
| Aspiration | Naturally Aspirated | |||||||||
| Combustion System | Indirect Injection | |||||||||
| Compression Ratio | 23.3: 1 | |||||||||
| Bore and Stroke | 84x100mm | |||||||||
| Displacement | 2.216L | |||||||||
| Direction of Rotation | Anti-clockwise viewed on flywheel | |||||||||
| Cooling System | Water Cooled | |||||||||
| Total Coolant Capacity | 7.0L | |||||||||
| Total Lubrication | 10.6L | |||||||||
| Dimensions | 946x497x840mm | |||||||||
| Weight(Dry) | 242kg | |||||||||
| Alternator Data | ||||||||||
| Brand / Model | Stamford /PI144D | |||||||||
| Number of Phase: | 3 | |||||||||
| Connecting Method: | 3 Phase and 4 Wires, “ Y” type connecting | |||||||||
| Number of Bearing: | 1 | |||||||||
| Power Factor: | 0.8 | |||||||||
| Protection Grade: | IP23 | |||||||||
| Altitude Requirement: | ≤ 1000m | |||||||||
| Exciter Type: | Brushless, Self-exciting | |||||||||
| Insulation Class/Temperature Rise: | H/H | |||||||||
| Telephone Influence Factor (TIF): | < 50 | |||||||||
| THF: | < 2% | |||||||||
| Steady State Voltage Regulation: | ≤ ± 1% | |||||||||
| Alternator Capacity: | 20KVA | |||||||||
| Alternator Efficiencies: | 85.1% | |||||||||
| Optional Parts | ||||||||||
| Engine: | Water Jacket Heater / Water Separator | |||||||||
| Alternator: | Permanent Magnet Generator(PMG)/ Anti Condensation Heater | |||||||||
| Control System: | Auto Control Panel / ATS / Battery Charge | |||||||||
| Others: | Spare Parts / Tools / Daily Fuel Tank | |||||||||
| Prod Model: | VP20E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | SGS |
| Alternator: | Stamford |
| Engine Brand: | UK Perkins |
| Rated Power: | 16kw/20kVA |
| Delivery Time: | 25 Days |
| Output Type: | AC Three Phase |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Self-Starting Diesel Generator |
