1. 20kVA~200kVA Ricardo Generator/ Diesel Generator/ Diesel Genset
2. Powered by Ricardo Engine
3. With Stamford / Leroy Somer / Marathon Alternators
4. With CHINT / ABB MCCB & Electronic Components
5. Electric Start with Battery
6. Base Integrated Fuel Tank
7. ATS, Deepsea / ComAp / Smartgen Controller
8. Comply with ISO8528/GB2820
9. After-sale Services

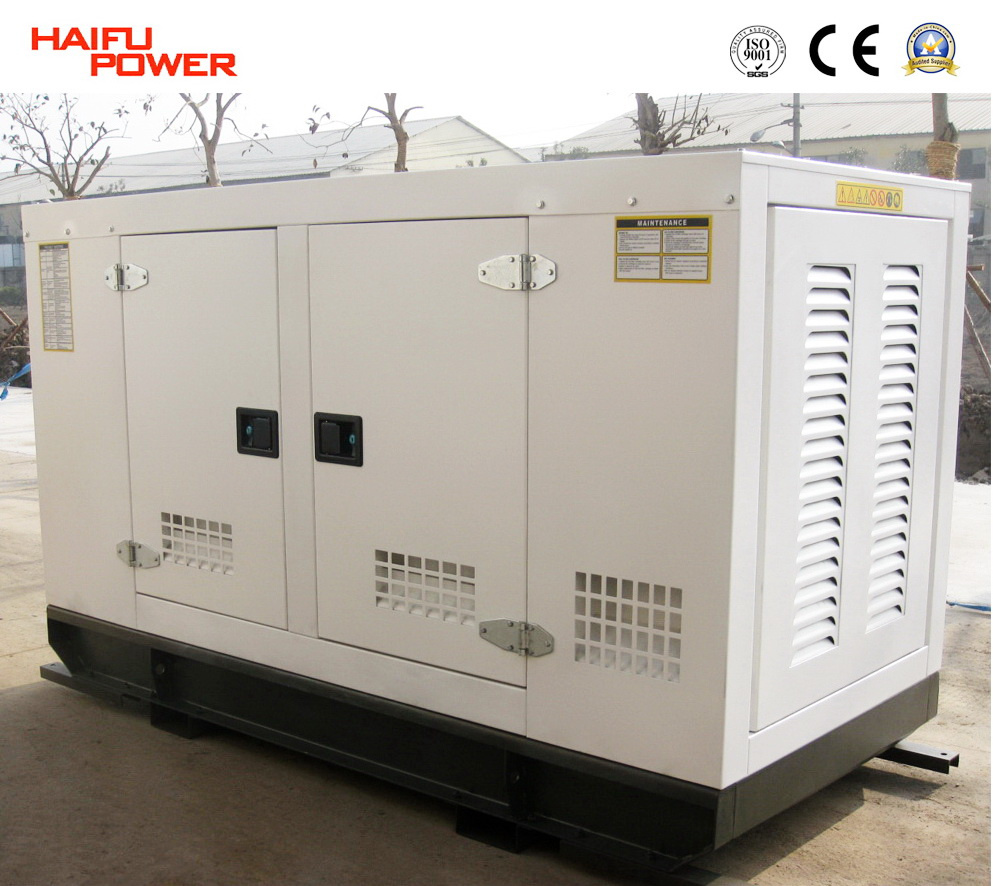

Genset Model: HF80R2
Continuous Output: 80KW/100kVAEngine Brand & Model: Ricardo R6105ZD
No. Of Cylinder: 6
Bore X Stroke: 105X125mm
Engine Power: 90KW
Fuel Consumption: ≤ 208g/kw. H
Displacement: 6.49L
Engine Speed: 1500rpm
Starting System: DC 24V Electric Start
Alternator Brand & Model: Stamford UCI274C
Frequency: 50Hz
Voltage: 380/220V
Phase Connection: 3-phase 4-wire
Excitation: Brushless
Insulation Class: H
Power Factor: 0.8
Voltage Regulation: AVR
Rated Current: 151.9A
Control Panel: Standard Equipped or LCD Digital Controller
Options: ATS, Trailer
Control SystemsStandard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.
EngineHeavy duty diesel engine
Four stroke, water cooled
12V and 24V stater and charge alternator
Cooling radiator and fan
Maintenance free battery including ract and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer
AlternatorBrushless, single bearing, flexible disc
Insulation class: H
Protection class: IP23
Self-exciting and Self-regulation
CanopyAll canopy designed with modular principles
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Base FrameBase frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Control SystemControl, monitor and protect the Generator Set including:
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop
General Data Sheet| Model | Engine | Generator Power (kw) | Cylinder No. | BorexStroke | Displacement | Fuel Consumption (g. kw/h) | Dimension (mm) | Weight (kg) |
| HF20R | 495D | 20 | 4 | 95× 115 | 3.26 | 230 | 1600× 600× 1000 | 650 |
| HF30R | K4100ZD | 30 | 4 | 100× 115 | 3.61 | 230 | 1600× 600× 1000 | 700 |
| HF40R | R4105ZD | 40 | 4 | 105× 125 | 4.33 | 230 | 1850× 700× 1200 | 750 |
| HF50R | R4105ZD | 50 | 4 | 105× 125 | 4.33 | 230 | 1850× 700× 1200 | 1000 |
| HF75R | R6105ZD | 75 | 6 | 105× 125 | 6.49 | 230 | 2300× 700× 1500 | 1100 |
| HF90R | R6105AZLD | 90 | 6 | 105× 130 | 6.75 | 224 | 2400× 700× 1500 | 1200 |
| HF100R | R6105AZLD | 100 | 6 | 105× 130 | 6.75 | 215 | 2400× 700× 1500 | 1250 |
| HF120R | R6105IZLD | 120 | 6 | 105× 135 | 7.01 | 225 | 2450× 700× 1500 | 1300 |
| HF150R | R6113ZLD | 150 | 6 | 113× 125 | 7.52 | 225 | 2800× 900× 1500 | 1800 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
