1. 20kVA~180kVA Lovol Power Generator/ Power Generation/ Diesel Generator
2. Powered by Lovol Engine
3. With Stamford / Leroy Somer / Marathon Alternators
4. With CHINT / ABB MCCB & Electronic Components
5. Electric Start with Battery
6. Base Integrated Fuel Tank
7. ATS, Deepsea / ComAp / Smartgen Controller
8. Comply with ISO8528/GB2820
9. After-sale Services

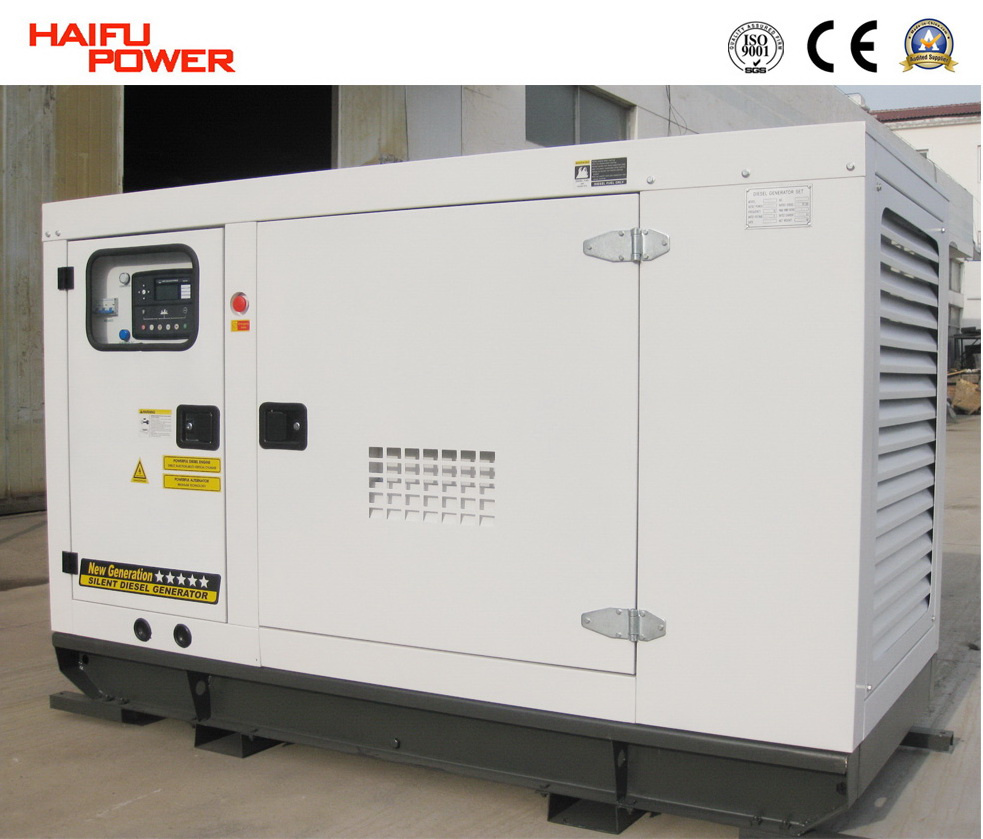

Lovol 1000 Series Power Generator/Power Generation/Power Plant/Diesel Generator Set/Power Generation/Gensets Power From 20kVA up to 180kVA, with compacted structure and best configuration. Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options
Control SystemsStandard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and
Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.
EngineHeavy duty diesel engine
Four stroke, water cooled
12V and 24V stater and charge alternator
Cooling radiator and fan
Maintenance free battery including ract and cable
Flexible fuel connection hoses and manual oil sump drain valve
Exhaust silencer
AlternatorBrushless, single bearing, flexible disc
Insulation class: H
Protection class: IP23
Self-exciting and Self-regulation
CanopyAll canopy designed with modular principles
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Base FrameBase frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Control SystemControl, monitor and protect the Generator Set including:
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop
General Data Sheet| Genset Model | Frequency 50HZ / 60HZ | Fuel Consumption | Engine Model | Cylinder No. | Alternator Model | Dimension/Silent (mm) |
| Rated Output | g/kw.h |
| (KW/KVA) | L * W * H |
| HF18L | 18 / 22.5 | 208 | 1003G | 3 | WHI184E | 2300*1150*1400 |
| HF22L | 22 / 27.5 | 208 | 1003G | 3 | WHI184F | 2300*1150*1400 |
| HF30L | 30 / 37.5 | 208 | 1003TG | 3 | WHI184H | 2300*1150*1400 |
| HF40L | 40 / 50 | 208 | 1003TG | 3 | WHI224D | 2300*1150*1400 |
| HF50L | 50 / 62.5 | 208 | 1004TG | 4 | WHI224E | 2300*1150*1400 |
| HF60L | 60 / 75 | 208 | 1004TG | 4 | WHI224F | 2300*1150*1400 |
| HF70L | 70 / 87.5 | 208 | 1006TG1A | 6 | WHI224G | 2850*1200*1600 |
| HF80L | 80 / 100 | 208 | 1006TG1A | 6 | WHI274C | 2850*1200*1600 |
| HF90L | 90 / 112.5 | 208 | 1006TG2A | 6 | WHI274D | 2850*1200*1600 |
| HF100L | 100 / 125 | 208 | 1006TAG1A | 6 | WHI274E | 2850*1200*1600 |
| HF112L | 112 / 140 | 208 | 1006TAG | 6 | WHI274ES | 2850*1200*1600 |
| HF128L | 128 / 160 | 208 | 1106C-P6TAG3 | 6 | WHI274F | 2950*1250*1650 |
| HF144L | 144 / 180 | 208 | 1106C-P6TAG4 | 6 | WHI274G | 2950*1250*1650 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
