Home Generator Products 20kVA (16kw) Perkin Silent Diesel Generator in Stock for Sale

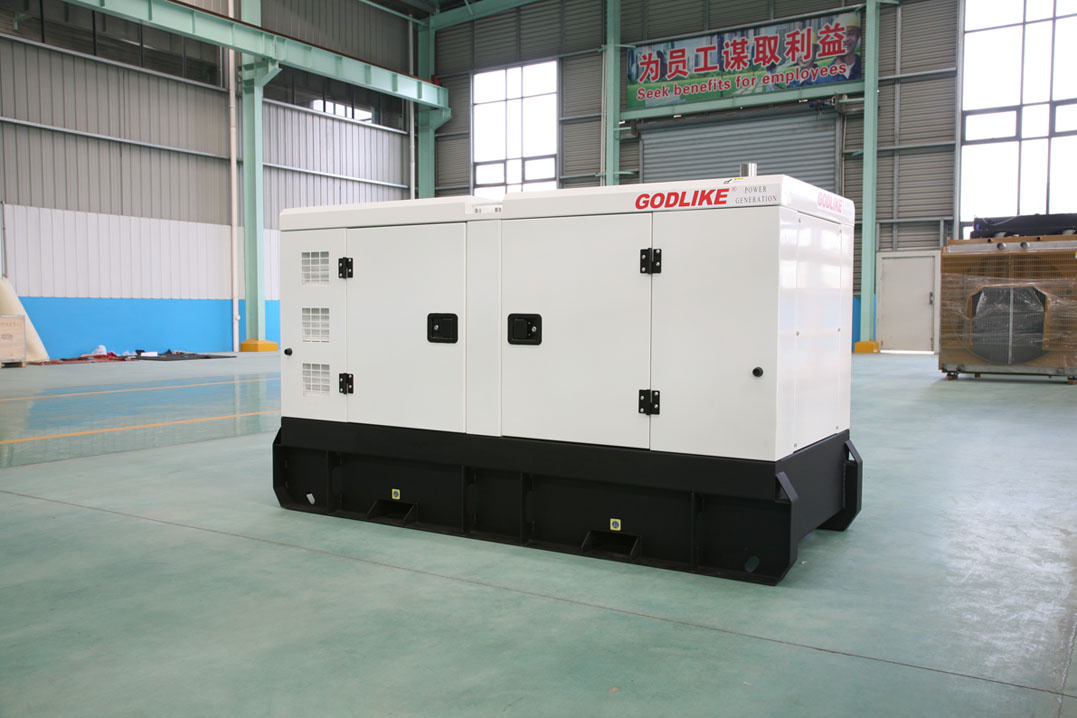

20kVA (16kw) Perkin Silent Diesel Generator in Stock for Sale

20kVA (16kw) Perkin Silent Diesel Generator in Stock for Sale
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

data sheet :
Model GDP20*S
Phase3 Phase
Power Factor0.8cosØ
Frequency50HZ
SpeedRPM1500
Max. Power     KVA22
KW17.6
Rated Power       KVA20
KW16
Rated Voltage    V400
Rated Current         A 28
Fuel Consumption L/H 4.6
Generator Controller              Auto Multi-function
Engine Model.                           404A-22G/404D-22G
Alternator Model.    JDG184E
Clinder No.      4/L
Starting SystemElectric Start
Cooling MethodWater-cooling
Protection GradeIP23
Insulation ClassH
Size  (MM)Silent Type2100*740*1115
Open Type1611*560*1191
OptionalATS (auto transfer switch)

GODLIKE POWER type gensets
 GODLIKE POWER offers a wider range of gensets, as well as other types of electrical
equipment and services.
ü Gensets: single-phase and three-phase generators, manually operated or with
automatic (AMF) operation, stationary or mobile, installed outdoors - with
soundproof canopy, or indoors - open frame models, covering a power range
between 10 and 2000kVA.
ü The GODLIKE POWER genset series has been designed to fulfill all the energetic
necessities of every type of electric appliance, having a compact design, powerful,
reliable, easy to use and with silent operation.
ü GODLIKE POWER gensets are equipped with diesel engines from famous genset engines manufacturers.

Internal combustion engine -  Godlike power  gensets are equipped with
best quality, world wide famous engines.
The engines equipping the JDG series are reliable, low-noise,
powerful, with low fuel consumption and manufactured using innovative
technologies.
4 stroke, water-cooled, direct injection, in-line 2-6 cylinders, naturally aspirated or turbocharged Diesel engines.
Mechanical or electronic governor.
Electric starter motor 12/24V DC.
Battery charging alternator 12/24V DC.
Fuel pump and fuel filter(s), oil pump and oil filter(s), fuel injection
pump, air filter(s).
Oil pressure sensors, engine temperature sensors.
Automatic engine shutdown in case of genset malfunction.
Pre-heating system (only for automatic gensets).
Exhaust system with low-noise muffler(s) and bellow(s).
GENERATOR -  Synchronous, 4 pole, single bearing or double bearing , brushless.
Self excited and self regulated by AVR (Automatic Voltage Regulator).
IP23 protection degree.
Insulation class H.
SKID (BASE FRAME)
The engine-generator assembly is made by coupling the two major
components via the SAE coupling system. Thanks to the special anti-
vibration rubber damper pads, the genset does not induce noticeable
vibrations to the surrounding foundation. The maximum vibration level
induced to the genset base frame is 5mm/s.
FUEL TANK , is incorporated in the genset's base frame. As genset
manufacturer, GODLIKE POWER can adapt to the customers' requests by enlarging
or reducing the fuel tank capacity, in order to ensure the requested genset
autonomy. In addition, the gensets can be equipped with large capacity
auxiliary (external) fuel tanks with automatic refueling system.
SOUNDPROOF CANOPY , made from electrostatic spray-
painted steel sheet, which reduces the corrosive action of atmospheric
and surrounding environmental agents.
EXHAUST MUFFLER , ensures silent genset operation and
reduces the environmental impact of exhaust gas according to the
relevant EU standards.
COMMAND AND CONTROL PANEL
The control panel is included in the genset assembly, fitted on the
genset's base frame and can be visualized through one of the canopy
door's plexiglas window.
The gensets are equipped with manually operated or automatic
operation electric panels, according to the customer's request.
The panels offer multiple set-up and protection functions and operating
modes. The gensets can also be remote operated and monitored using
the PC, including via Internet and GSM, as an optional extra. The
control panel is friendly and easy to use. The automatic control panels
can be manufactures as a dual electrical board (the control-side
apparatus is separated from the switchgear).
QUALITY STANDARDS
The GODLIKE POWER series gensets are designed and manufactured by our
company according with the latest issued CE!
Item
No
Genset ModelPower Out Put
400V/50HZ/1500RPM/3P/0.8 ( Y )
Perkins
Engine
Model
Godlike
Alternator
Model
Prime 40  degree
1GDP97KW9KVA403A-11GJDG 164B
2GDP97KW9KVA403D-11GJDG 164B
3GDP1310KW13KVA403A-15G1JDG 164C
4GDP1310KW13KVA403D-15GJDG 164C
5GDP1512KW15KVA403A-15G2JDG 164D
6GDP2016KW20KVA404A-22GJDG 184E
7GDP2016KW20KVA404D-22GJDG 184E
8GDP2721KW27KVA404D-22TGJDG 184F
9GDP3024KW30KVA1103A-33GJDG 184G
10GDP3024KW30KVA1103A-33GJDG 184G
11GDP4536KW45KVA1103A-33TG1JDG 224C
12GDP4536KW45KVA1103A-33TG1JDG 224C
13GDP6048KW60KVA1103A-33TG2JDG 224E
14GDP6048KW60KVA1103A-33TG2JDG 224E
15GDP6552KW65KVA1104A-44TG1JDG 224E
16GDP8064KW80KVA1104A-44TG2JDG 224GS
17GDP8064KW80KVA1104C-44TAG1JDG 224GS
18GDP9072KW90KVA1104C-44TAG2JDG 274H
19GDP10080KW100KVA1104C-44TAG2JDG 274C
20GDP10080KW100KVA1006TG2AJDG 274C
21GDP135108KW135KVA1006TAGJDG 274ES
22GDP150120KW150KVA1006TAG2JDG 274E
23GDP150120KW150KVA1106A-70TAG2JDG 274E
24GDP181145KW181KVA1106A-70TAG3JDG 274G
25GDP200160KW200KVA1106A-70TAG4JDG 274H
26GDP208166KW208KVA1306C-E87TAG3JDG 274H
27GDP225180KW225KVA1306C-E87TAG4JDG 274J
28GDP250200KW250KVA1306C-E87TAG6JDG 274K
29GDP275220KW275KVA1606A-E93TAG4JDG 314DS
30GDP300240KW300KVA1606A-E93TAG5JDG 314D
31GDP350280KW350KVA2206C-E13TAG2JDG 314E
32GDP375300KW375KVA2206C-E13TAG3JDG314FS
33GDP400320KW400KVA2206C-E13TAG3JDG 314F
34GDP455364KW455KVA2506C-E15TAG1JDG 354C
35GDP500400KW500KVA2506C-E15TAG2JDG 354D
36GDP600480KW600KVA2806C-E18TAG1AJDG 354E
37GDP625500KW625KVA2806A-E18TAG2JDG354FS
38GDP650520KW650KVA 2806A-E18TAG2JDG354F
39GDP750600KW750KVA 4006-23TAG2AJDG404B
40GDP800640KW800KVA 4006-23TAG3AJDG404C
41GDP900720KW900KVA 4008TAG1AJDG404D
42GDP1023818KW1023KVA 4008TAG2AJDG404E
43GDP12501000KW1250KVA 4012-46TWG2AJDG404G

Prod Model: GDP20*S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire: 100% Pure Copper Wire
Customer Service: Iws
Cooling Method: Air Cooled
Installation Method: Fixed
Output Type: AC Three Phase
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
