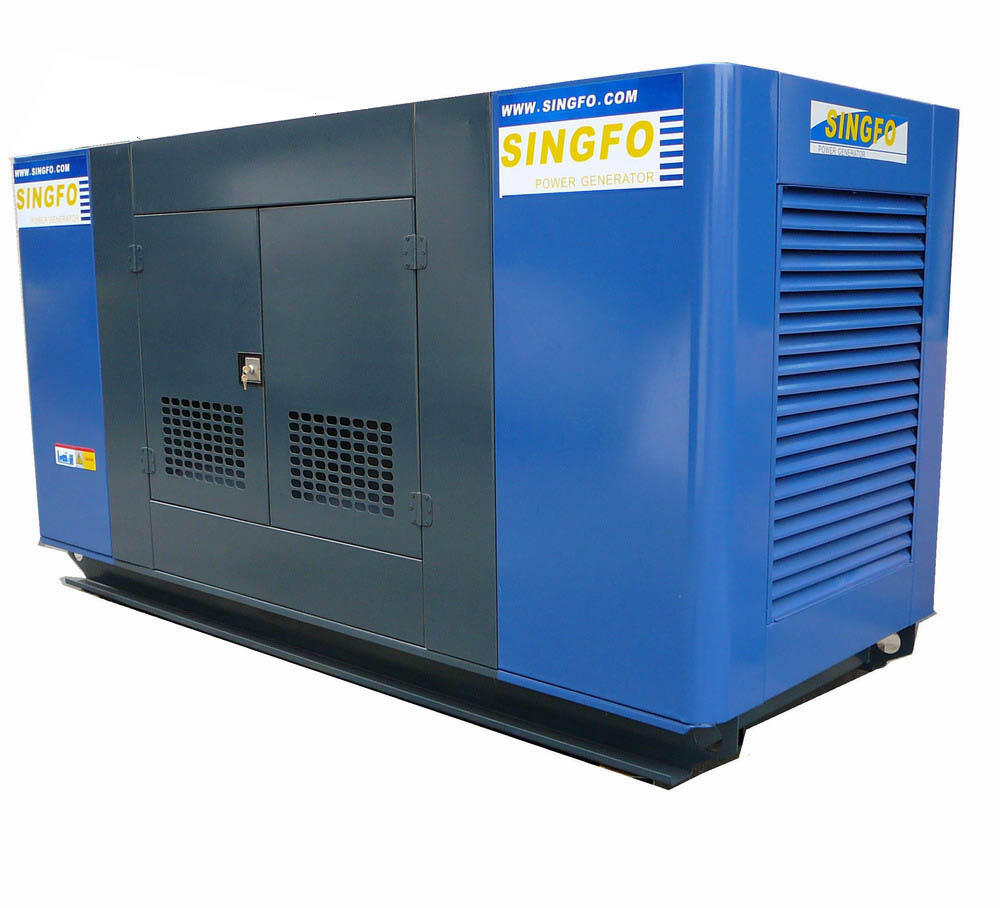

Super-Silent Diesel Generator
Power: 45KW/56kVA
60Hz:
Standby power: 50KW/62. Prime power: 50KW/62.5kVA
Standby power: 55KW/69kVA
Genset parameters:
1. Power factor: COSΦ =0.8lagging
2. Start-up mode: Electric
3. Noise level: 60-65dB
4. Fuel consumption: 13.5L/H(50Hz), 18L/H(60Hz)
5. Rated currency(AMPS): 85.5
6. Automatic protections for low oil pressure, high water temperature, over-speed, over-current
7. Package dimension: 2500mm*900mm*1450mm 1120Kg
Engine parameters:
1. Cummins model: 4BTA3.9-G2
2. Power: 55KW(50Hz)/ 65KW(60Hz)
3. Rated voltage: 380/440V it can be set according to different requirement
4. Cylinders and layout: 4L
5. Start-up mode: DC24V electric start
6. Voltage control: AVR
7. Insulation: H
8. Protection: IP23
9. Overload: 110%
11. Displacement: 3.92L
12. Steady Speed Droop: ≤ 1%
13. Radiator: Air inter-cooling
14. Speed governing: Electric
Alternator parameters:
1. Stamford model: UCI224E
2. Power: 48KW(60kVA)
3. Protection: IP21
4. Frequency fluctuation: ≤ 0.5 %
5. Frequency regulation: ≤ 0.5 %stable
6. Voltage control: AVR
7. Voltage: 380/440V
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
