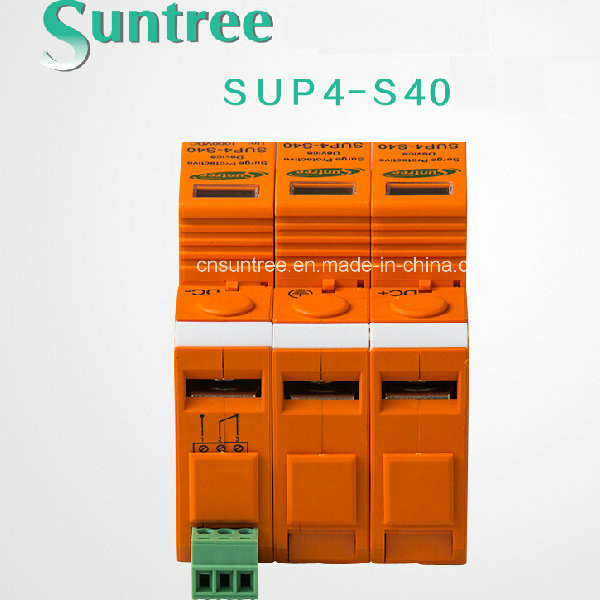

20KA-40KA DC1000V solar surge generator
The SUP series Surge Protection are designed to protect against lightning surge voltages in photovoltaic power supply networks.
These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection. The SUP series is available for the main operating voltages in photovoltaic: 1000 Vdc.
The use of SUP series Surge Protection is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side),
Especially if the line routing is external and long. The electrical diagram of the SUN-S40 series is based on high energy PV equipped with specific thermal disconnectors and related failure indicators.
The SUP series is made with plug-in modules to allow a fast and easy maintenance in case of failure (disconnection from the DC network).
| SUP2-PV series surge protector | SUP4-PV |
| PV DC specific (LEC 6614-1/EN 61643-11) |
| Pole | 2 pole | 3 pole |
| Electrical Parameter |
| Classifical test | II | II |
| Uoc max (V DC) | 500 | 900 |
| Uc (V DC) | 500 | 1000 |
| In(8/20)us (KA) | 20 | 20 |
| Imax(8/20)us (KA) | 40 | 40 |
| Up (KV) | 2.0 | 3.8 |
| Remote control and indication |
| Indication window |
| Plug-in module |
| Remote signal contact |
| Remote signal contact | Max working volt | 250V AC/30V DC | 250V AC/30V DC |
| Max working amp 1A (250V/AC) | 1A (250V/AC) | 1A (250V/AC) |
| 1A (30V DC) | 1A (30V DC) | 1A (30V DC) |
| Wiring & installation |
| Wiring capacity(mm2) | Hard wire | 4-25 | 4-25 |
| Flexible wire | 4-16 | 4-16 |
| Stripping length | 10 | 10 |
| Terminal screwa | M5 | M5 |
| Torque(Nm) | Main ciruit | 3.5 | 3.5 |
| Remote signal contact | 0.25 | 0.25 |
| Protection class | All profile | IP40 | IP40 |
| Connection port | IP20 | IP20 |
| Installation environment | No obvious shock and vibration |
| Altitude(m) | ≤ 2000 | ≤ 2000 |
| Working temperature | -3.0--+70 | -3.0--+70 |
| Relative humidity | 30%-90% | 30%-90% |
| How to install | Install with H35-7.5/DIN35 stell mounting rail |
| Size(mm) (W*H*L) | W | 36 | 54 |
| H | 90 | 90 |
| L | 67.6 | 67.6 |
| Weight (KG) | 0.25 | 0.38 |
| Nominal PV system volt | 600V | 100V | 1200V |
| MCOV(UCPV) | 700V DC | 1170V DC | 1200V DC |
| Max system discharge Current (8/20us) (Imax) | 40KA | 40KA | 30KA |
| Volt protection leve (UP) | ≤ 2.5KV | ≤ 4.0KV | ≤ 4.5KV |
| Volt protection Level at 5KA (UP) | ≤ 2.0KV | ≤ 3.5KV | ≤ 4.0KV |
| Integrate fuse breaking capacity/interrupting rating | 30KA/1000V DC | 30KA/1000V DC | 30KA/1200V DC |
| Technology | Short-circuit interruption (SCI) overcurrent protection |
| Operating temperature range | -40 to +80 |
| Nominal discharge current | 12.5KA |
| Response time (ta) | <25ns |
| Operating state/fault indication | Green (good) / Red (replace) |
| Mounting | 35mm DIN Rail per EN 60715 |
| Degree protection | IP20 |
| capacity | 3 modules DIN 43880 |
AC SPD
| AC SPD | Class C |
| Max. continuous voltage Uc | 275 V | 320 V | 420 V/ 440V |
| pole | 1P 2P 1P+N 3P 3P+N 4P |
| Nominal discharge current (8/20μs) In | 20 kA |
| Max. discharge current (8/20μs) Imax | 40 kA |
| Lightning impulse current (10/350) [N-PE] limp | ≤ 12.5 kA |
| Voltage protection level [L-N] Up | 1.0 kV | 1.5kV | 1.6kV |
| Voltage protection level [N-PE] Up | ≤ 1.2kV |
| Response time tA | ≤ 25 ns |
| Max. back-up fuse | 125 A gl/gG |
| Short-circuit withstand current | 25kA/50Hz |
| Operating temperature range TU | -40°C+80°C |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| Mounting on | 35 mm DIN rail acc. To EN 60715 |
| Degree of protection | IP 20 |
| Housing material | Thermoplastic; extinguishing degree UL 94 V-0 |
| Remote signaling contact (floating switch) | Yes (optional accessory) |
| Switch capacity | AC: 250V/0.5A; 125V/3 A |
| Cross-sectional area for remote signaling terminals | Max. 1.5 mm2 solid / flexible |
| Product Model | Product Model | SUP1 D,C,B |
| The number of poles | 1P , 2P , 1P+N, 3P , 3P+N, 4P |
| Rated working voltage Un(V) | 230/400 |
| nominal discharge current (8/20μs)kA | 10 | 20 | 30 | 60 |
| Max discharge current | 20 | 40 | 60 | 100 |
| Max Continuous Operating Voltage | 275 | 320 | 440 | 460 | 275 | 320 | 420 | 460 | 275 | 320 | 420 | 460 | 275 | 320 | 420 | 460 |
| Protection level | <1.0 | <1.4 | <1.6 | <1.8 | <1.2 | <1.6 | <1.8 | <2.0 | <1.5 | <1.8 | <2.0 | <2.2 | <1.6 | <1.8 | <2.2 | <2.4 |
| Prepose fuse | 25AGL | 50AGL | 80AGL | 80AGL |
| Response time (ns) | <25 |
| Leak current 75% Uc 1mA | <20μA |
| Testing classification | II |
| Protection class | IP20 |
| Ambient temperature limited | -40°C~+80°C |
| Material of insulation sheath | PBT/PA66 |
| Fire Retardant level UL94 | VO |
| Installation method | 35mm standard electric rail |
| Outside color | red |
| Recommended fuse or breaker A | 40~63 |
Sectional area of the linked
power line (mm ) | Phase/Null line | 1.5~3.5 hard wire |
| Ground lead | 1.5~3.5 double color |
| Accord to standards | IEC61643-1 IEC61643-21 UL1449 |
