Home Generator Products 2016 High Technical Tire Nitrogen Filling Device with CE&ISO9001 Certification

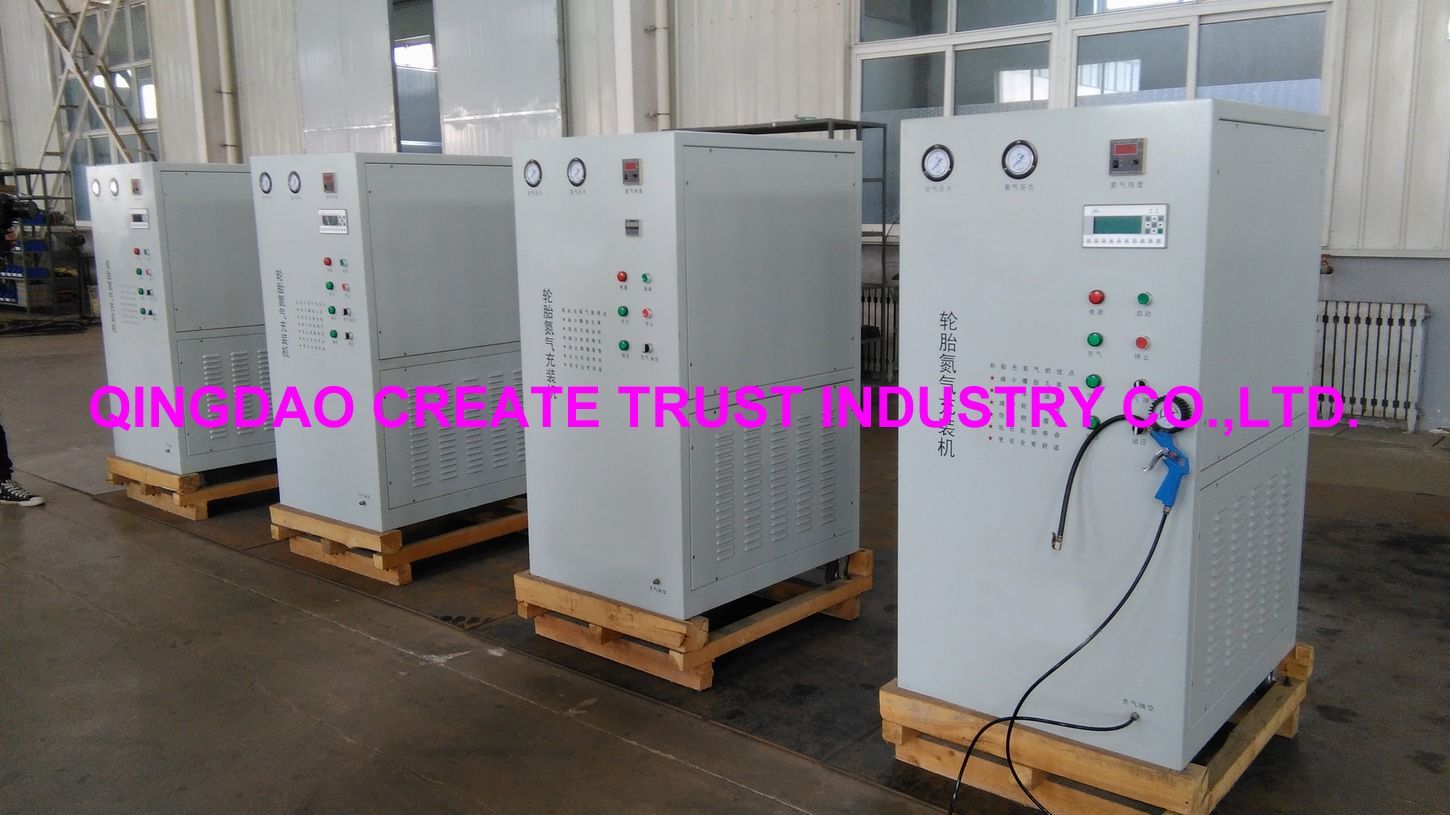

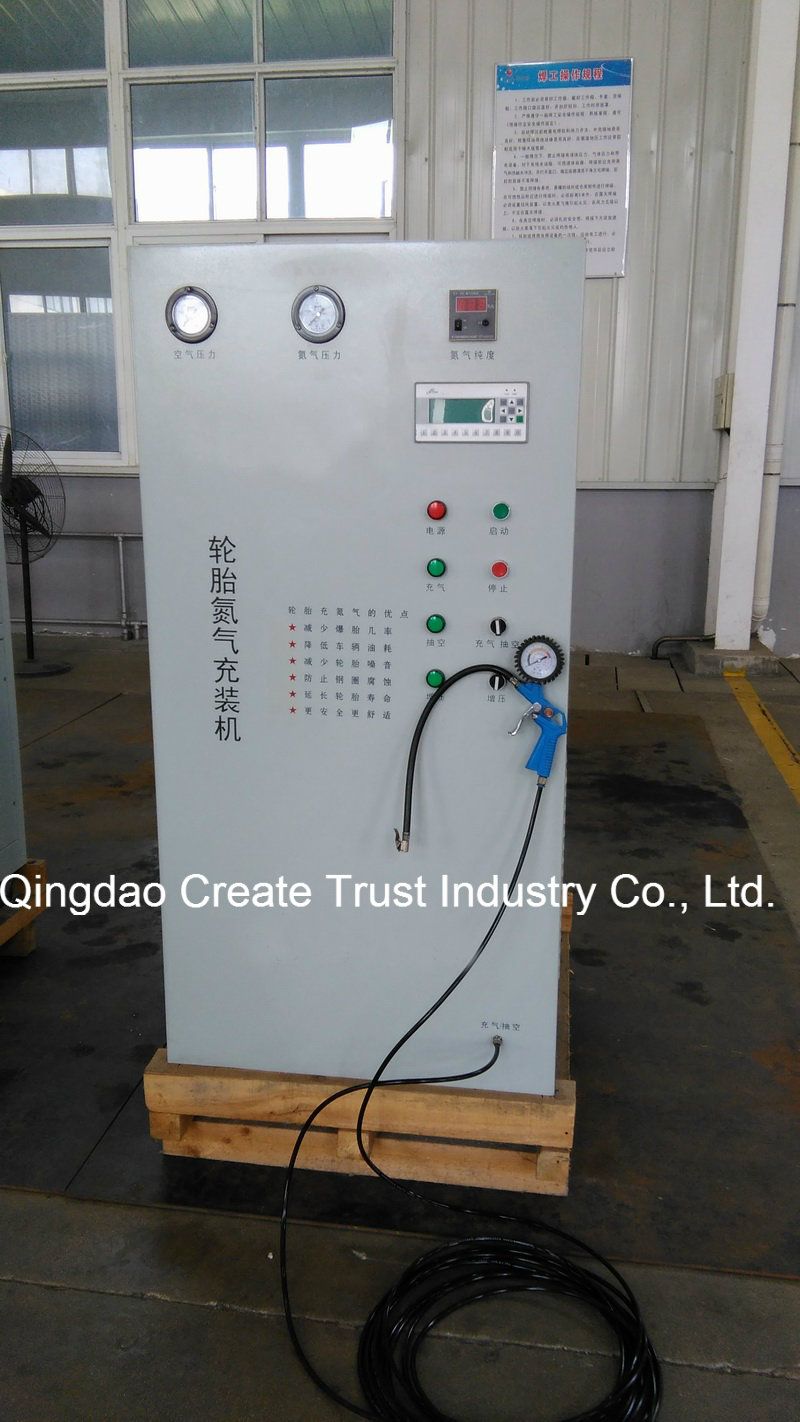

2016 High Technical Tire Nitrogen Filling Device with CE&ISO9001 Certification

2016 High Technical Tire Nitrogen Filling Device with CE&ISO9001 Certification
Price: US $ 2000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Name of device :  tire nitrogen filling device,tire nitrogen filling machine,tyre nitrogen filling equipment,tyre nitrogen filling device,PSA nitrogen generator.

Usage:

The decice is specially designed for tire inflatable use. We adopt the

"PSA nitrogen making technology", can provide ≥98purity nitrogen. High purity, and no water,or powder ect inclueded,  widely used in automobile servings or army truck .

Features:

The device include air compressor,nitrogen making,nitrogen pressure increasing ,tire cacuum,inflatable nitrogen , complete system . Full automatic,
Very economic ,convenient and practical .

Main parameters below :


Output for the nitrogen5Nm3/h
Purity98%
Pressure for the nitrogen1.4Mpa
Voltage (can design as your requests)380/220V 3phase 50HZ
Powder for whole group3.2KW
Weight 350kg
Size (L×W×H)700×900×1550mm

Consist of whole group devices :

Air compressor, radiater,air accumulator,filter,adsorber,pressure pump,vacuum device,cooling   fan, solenoid valve,pipes and control system.

First -  You just connect the electric ,and press on button,the tire introgen filling device will be working condition.

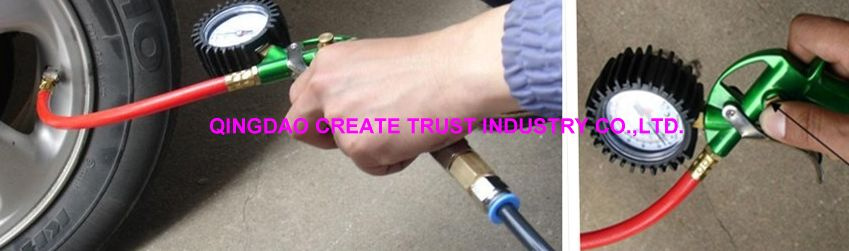

Then pressure gun mouth connect the charging connector of tire, to let air defleted,the device will make vacuum of tire.



Fill nigtrogen, just turn the button to the filling position, the pressure gage will show the pressure. When reach the standards, just loose the switch.


The advantage for the nitrogen filling device :

1- reduce blowout

2- improve the steady of driving and comfortable

3- make longlife use of tire

4- reduce the oil consume

5- make low costs of transport


Service :

Warranty: one year, but we will provide contious service when you need.

Our company cooperate with ARMY and have very strict quality warranty.

So if you buy from us, we promise you will satisfied with our products.

Certification : CE,ISO9001



Prod Model: CX98
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Using Object: Tyre or Tire Nitrogen Filling
Control System: Automatic and Convenient
Purity: More Than 98%
Type: Tire Inflators
Certification: RoHS
Update Method: by Internet
