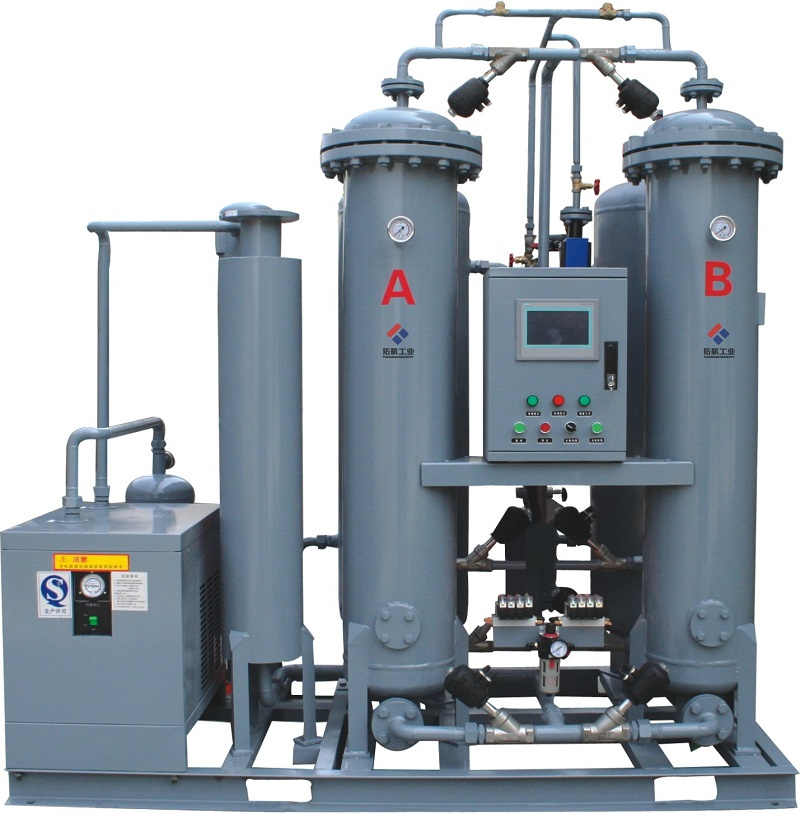

2015 New Style High Purity Oxygen Generator

Product Profile
The advantage of low energy consumption of freezing compressed air dryer has been known by vast users, and adsorption compressed air dryer can reach low dew point. However, limitation of dew-point temperature of freezing compressed air dryer and high energy consumption of adsorption compressed air dryer are hot potatoes puzzling manufacturers of compressed air dryers all the time. Therefore, Tuohang Electric has successfully developed dry purification equipment TZH type combined low dew- point compressed dryer of new generation.

TZH combined low dew- point compressed dryer is the combination of freezing drying technology and absorption drying technology, which breaks through simple collusion way of freezing device and absorption device, so that advantages of freezing devices and absorption device are developed fully. And then you can save evergy consumption, so that you investment can be taken back as soon as possible.

TZH combined low dew-point compressed dryer is the unique dry device through appraisal of new products among products of the same kind.


Product Features
High performance
With stable outlet temperature, it can gain stable outlet compressed air with low dew point and and high quality, which can remove impurities and moisture completely.
Signification energy saving
The working principle of low-temperature absorption and normal-temperature regeneration can reduce regenration air comsumption of absorbing agent(amount of regeneration air is=3%) and decrease power consumption of freezing compressed machine from 20% to 40%.
Simple maintenance
Reduce water content of compressed air through freezing system at first, so as to extend life of absorbing agent, to lengthen work cycle, and to reduce valve friction.
Space Saving
With compact structure design, when compared with simple series system of freezing devices and absorbing devices, it saves more spaces.
Optimal pressure dew point
Design pressure dew point as -40º Cor 70º Caccording to user requirements.

Model(THN Standard Model)	Output(Nm³/h)	Effective Air Consumption	Air Purification System	Import and Export Caliber(mm)
THN-10F	10	0.41	T-0.5	DN15	DN15
THN-20F	20	0.83	T-1	DN25	DN25
THN-30F	30	1.24	T-1.6	DN25	DN25
THN-40F	40	1.65	T-3	DN32	DN25
THN-50F	50	2.07	T-3	DN32	DN40
THN-80F	80	3.31	T-6	DN40	DN40
THN-100F	100	4.13	T-6	DN40	DN40
THN-120F	120	4.96	T-6	DN40	DN50
THN-150F	150	6.2	T-10	DN50	DN50
THN-200F	200	8.27	T-10	DN50	DN50
THN-300F	300	12.4	T-20	DN65	DN50
THN-400F	400	16.5	T-20	DN65	DN50
THN-600F	600	24.8	T-30	DN80	DN50
THN-800F	800	33.1	T-40	DN100	DN65
THN-1000F	1000	41.3	T-50	DN100	DN80
THN-1200F	1200	49.6	T-50	DN125	DN80
THN-1500F	1500	62.0	T-70	DN125	DN80
THN-2000F	2000	82.7	T-90	DN150	DN80
