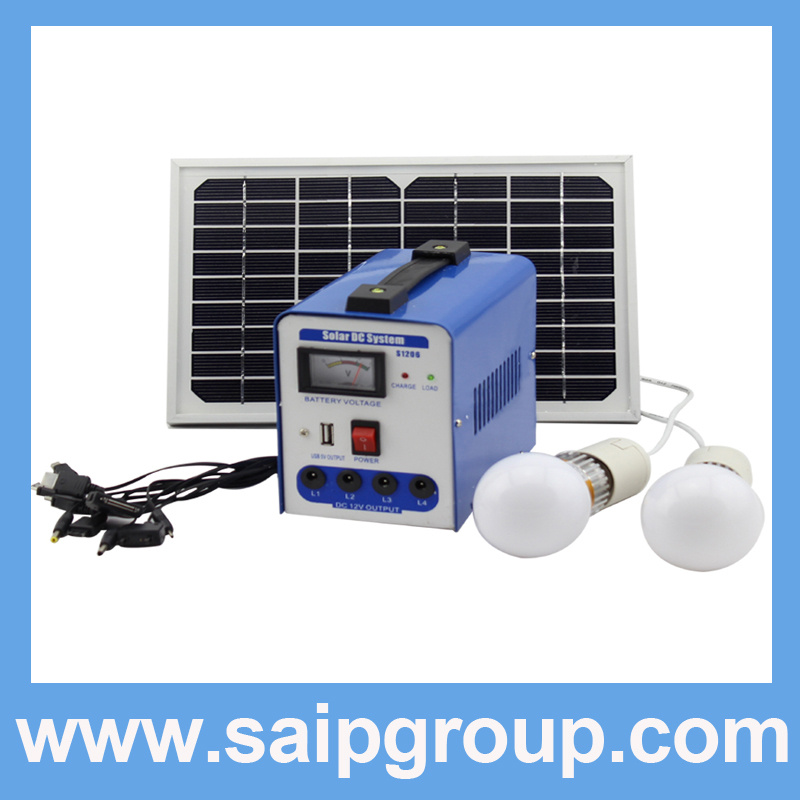

2014 New Mini DC Solar Generators (SP1212)
1. Energy saving, environmental -friendly
2. Long life service
3. Low maintanence
4. CE&RoHS
Introduction:
We adopt the PV generating technology to develop and the product has the features of no pollution, no noise and maintenance-free. The DC system can provide the functions of lighting and mobile charging.
1. Avoid using the machine under such conditions as having flammable or explosive or erosive gas and too hot places.
2. This system equips with solar panel and battery. Under the condition of fully charged, it can supply power for 2PCS 3W LED lights and charge the mobile. ( the parameters differ according to the different geographical, using condition and using time)
|
Model |
S1212 |
|
Battery Capacity |
4AH |
|
Rated Charging Current |
1A |
Rated Discharge Current |
2A |
|
Rated Working Voltage |
12V |
Solar Panel Voltage |
≤25 |
|
Floating Charge Voltage |
14V |
No-load Loss |
≤8mA |
|
Low Voltage Disconnecting Point |
10.5V |
Low Voltage Reconnecting Point |
11.5V |
|
USB Port Current |
≤500mA |
Humidity Requirement |
-15°c-40°c |
|
Working Temperature |
-10°c-50°c |
Storage Temperature |
≤90%,No Condensation |
|
Dimension |
223mm*128mm*140mm |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
