Introduction:

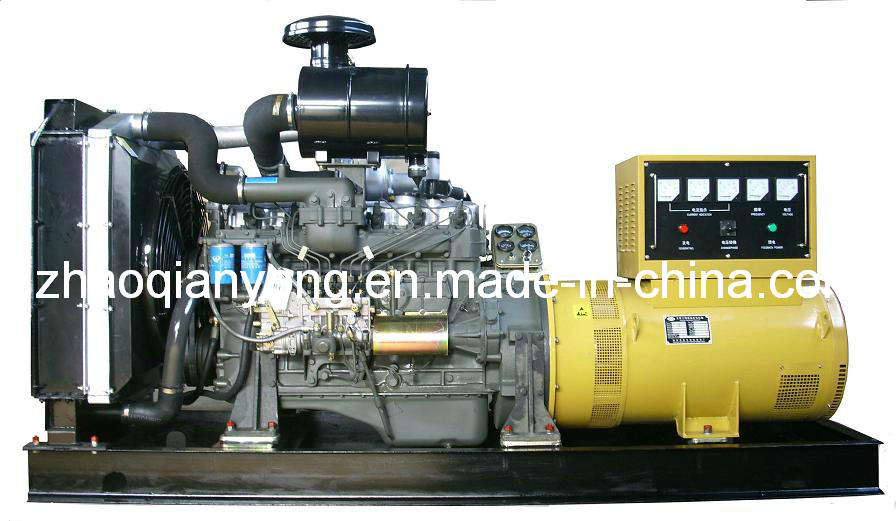

GF2 series diesel generating sets adopt the up-to-date technique of A. C. Synchronous generator excitation system, high quality diesel engines are coupled with the generators.
This sets are designed for using in towns, fishing ports, high buildings, railways, sites, ships etc as an electric power source or as reserved power for using on emergent case.
The main technical data of GF series all meet the national standard of GB/T2820-1997, this item work out specially for the industrial using diesel generating sets.
Note: We supply the generator from 15kw-500kw, if you need more information, pls contact me directly.
Main Technical Data As Form:
|
Gensets Model |
Diesel Model |
Generator Model |
Rotated Output(kw) |
Output Voltage |
Rotated Current |
Rated Speed(rmp) |
Starting method |
Dimension |
Net Weight |
|
XMGF-75 |
R6105ZD |
TZH2-75 |
75/93.75 |
400/230 |
150 |
1500 |
12V D.C Electric |
2300*730*1550 |
1200kg |
|
LGF_ 150KW |
R6113ZLD |
TZH2-150 |
155/ 193.75 |
400/230 |
270 |
1500 |
DC24V D, C Electric |
2600*880*1600 |
1500kg |
|
GF_ 250KW |
G128ZLD1 |
HJI-250 |
250/312.5 |
400/230 |
450 |
1500 |
12V
D. C Electric |
2860*1100*1600 |
2500kg |
The company is a professional manufacturer specialized in production of oil pressing machines under the Ministry of Machinery Industry of the State.
Now we have and develop the main products:
Vegetable oil machine;
Biodiesel oil machine;
Biomass machine;
Flour mill machine and line, etc.
Its products have been well sold to nearly 40 states and areas both home, enjoying a high reputation, which have got the first of the similar products in 1999 and passed ISO9001 in Jan., 2000.
We have the special exporting company, also to find the others'product according to the inquires of clients!
