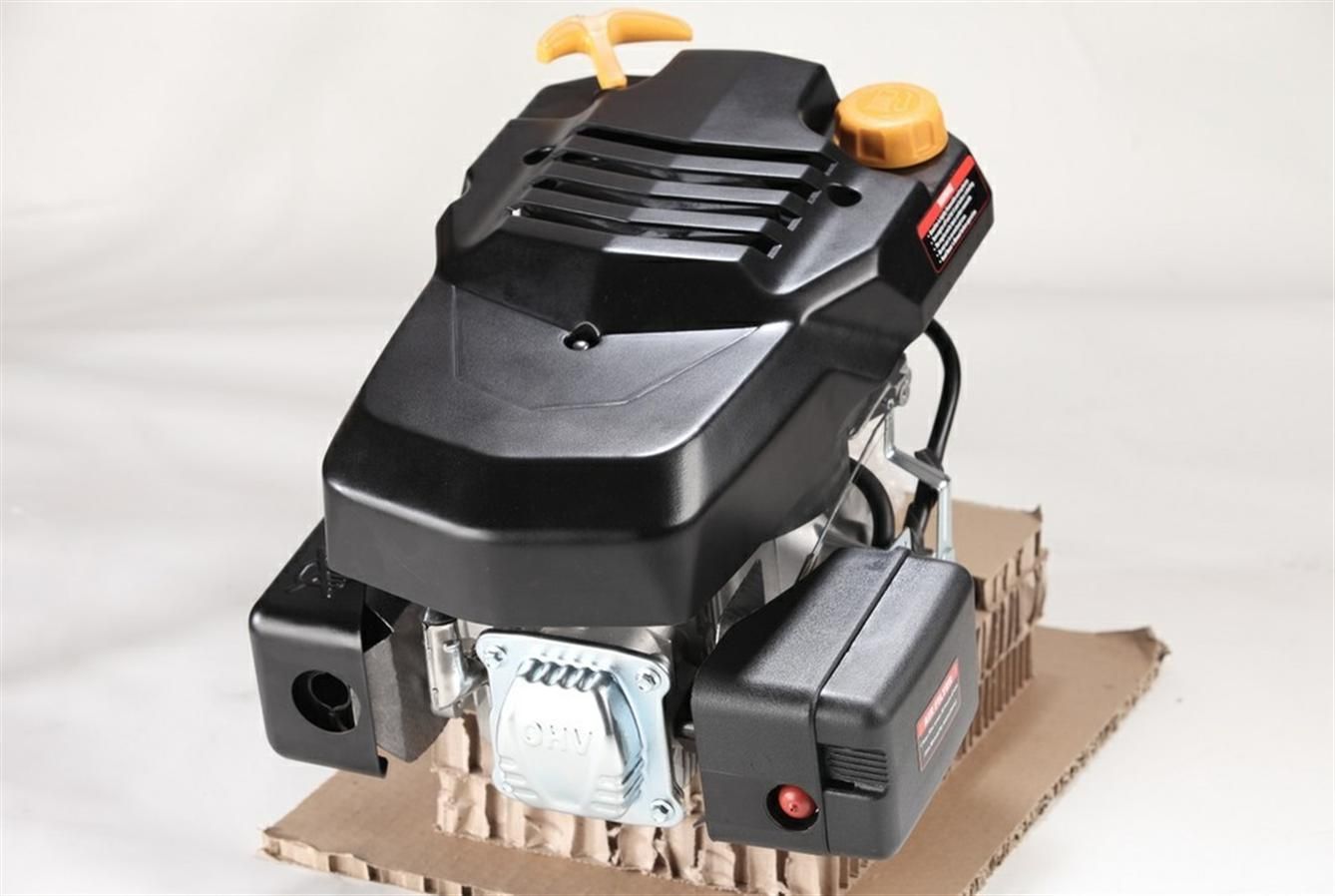

Air cooled 4 stroke vertical shaft engine
1. Fast Delivery
2. Best price
Air cooled 4 stroke vertical shaft engine
Features of vertical shaft engine
1. Easy and fast staring
2. The Max output up to 6hp
Specification of vertical shaft engine
Engine type
Single cylinder, 4-stroke, air cooling, OHV
Displacement
196cc
Bore× Stroke
70*51
Compression ratio
8.5: 1
Max output
6.0HP/3600rpm
Max torque
10N. M/28000rpm
PTO shaft rotation
Counterclockwise(see from PTO)
Noise(≤ 7m)
68dB
Ignition system
Transistorized Magneto
Starting system
Recoil start
Oil capacity
0.6l/0.16gal
Fuel tank capacity
0.9l/0.32gal.
Net weight
14KG(31lb)
Dimension
420× 360× 390mm
20FT Qty
300
40FT Qty
900
40HQ Qty
900
Chongqing Kaerbo General Machinery Co., Ltd. is located in Chongqing, a heavily industrialized city in West China. We specialize in manufacturing and exporting gasoline engines, generators, water pumps, tillers and welders.
Our company, providing satisfying products with high cost performance and efficient after-sale service, focuses on the innovation of products, aiming at improving efficiency and cost reduction. All products are strictly checked and fully tested before being packed, and have obtained certifications as follows: CE, EMC, LVD, EC, EURO-II, SONCAP and ISO9001.
Besides, we have experienced professional engineers who had worked in JIALING-Honda over 10 years.
Our target is to be international. We have cooperated with other famous brands such as AKSA, Einhell, Power-horse, King-Canada, Denzel, Alimar, EMEL and Homage. We continue with our efforts to export our products with attractive prices and good quality to the world.
