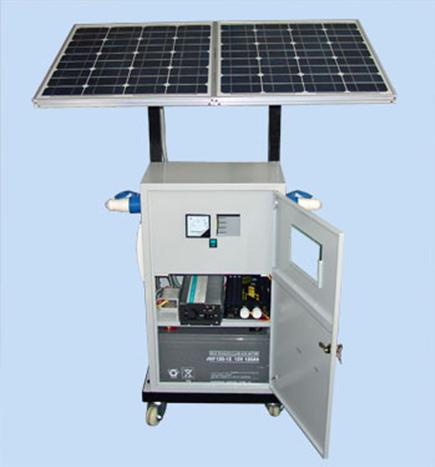

Home Generator Products 200W Domestic Solar Generating System (VSS-01)

200W Domestic Solar Generating System (VSS-01)

200W Domestic Solar Generating System (VSS-01)
Price: Negotiable
Min Order: 1
Equipment disposition:
1. Solar cell module: 200Wp
2. Exempt-maintain accumulator: 100AH/24V
3. Control inverter: 24V, 300W
Control inverter union (revision since wave)
*solar panel can be extend to 300W
(Electricity generated by this system may be differ a little for the sunlight irradiance and daily average illumination time are different in install section.
We take the daily 5 hour average effective sunshine time as our basis to disposition. This time is a pretty good sunshine time, which can be reached in Northwest area of China and some African country. )

Specification:
With strict test, our solar generating system meets standards as follows:
Solar panel:
* We adopt mono-crystalline silicon or poly-silicon; Transformation efficiency up to more than 15%; Follow BOBS. BOS IEC 61212: 2005 related national standard, such as PV-GAP, IEC 62257-7-1

Generating performance:
Our solar cell board tested in standard luminous intensity or under the mock standard luminous intensity condition, ie, testing environment for the solar radiation is 1000w/m2 and the air quality is 1.5
Mechanical performance:
*Solar battery adopts 3.5mm ultra-thin transparency steeled glass with disposable lamination seal, and fixed with 5mm aluminum alloy material all around the frame.
*Solar cell board with anti-wind and rain function, and the protection rank is IP56.

Environmental performance:
*Can work under 0 to 45 centigrade as what settled operating parameter
*Can operate under environmental temperature -10 to 70 well, and will not harm to cell panel to worse the performance.

Battery:
* The accumulator cell we use is the deep circulation to exempt the maintenance lead-acid battery, which follow national standard like BOS IEC 61056-1
* Under the 20 centigrade, low self-electric discharge and 90% charges is allowed within a month.
* We guaranteed that electric quantity released still achieved or surpasses the initial discharge capacity 80% after 300 completely circulation.
* Packing is the non-corrosiveness and protection range should be IP64

Controller and Inverter Union:
* Inverter adopts pure wave or revision sine wave according to load require.
* controller and inverter union has over-low protection function
* Security protection includes counter extremely, short-circuits, over-flow and adverse current protection.
* With temperature compensation function
* With against thunder protection device
* With LCD screen to display system's running state
* Implements of the long-distance monitor can be allowed in correspondence according to the requirement.
Prod Model: VSS-01
Shenzhen V-SunTech Co., Ltd is a high-tech enterprise, professional in R&D, manufacture and sales of solar photovoltaic application products as well as undertaking various solar photovoltaic projects. The main products include various kinds of photovoltaic application products like solar chargers, solar mobile power boxes, solar traffic lights, solar power generation systems, solar lamination and solar landscape lights and so on. Moreover, Our products have passed the FCC, RoHS and CE certification.

Our company is strong in R & D and marketing. We are conatsantly adding to our inventory to insure that our customers are always ahead.

We offer a competitive price, excellent quality, prompt delivery and great after sales services.

For sucess and profit, contact us right away. We are always by your side.
