Home Generator Products 200W/300V/400W Small Wind Turbine Generator

200W/300V/400W Small Wind Turbine Generator

200W/300V/400W Small Wind Turbine Generator
Price: US $ 150-250/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
small wind turbine generator: 200W, 300W, 400W
Angle series:
1. Wind turbine startup wind speed 1.5-2m/s
2. Small wind turbie used for road light
3. Wind turbine only 7kg
4. CE&ISO certificate
5. Wind generator warranty 5 years.

Angel Series (200W-400W), small windmill with magnetic saturation patent technology.Its easy to install, and generator is  small volume only weight of 7-8.5kg, this weight is half of other same power product . It's very suitable for make a power system or hybrid systme for lighting(LED light).

Low start up wind speed,only 1.5--2m/s.and low rated wind speed design .only 7--8m/s

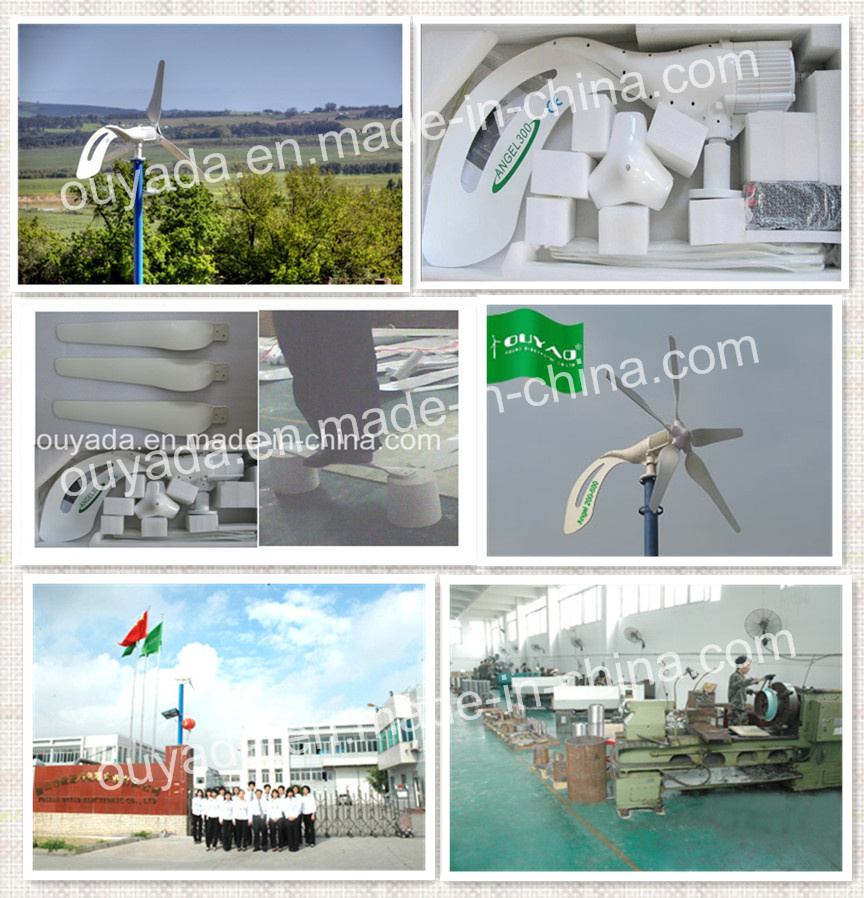

Pictures for reference:

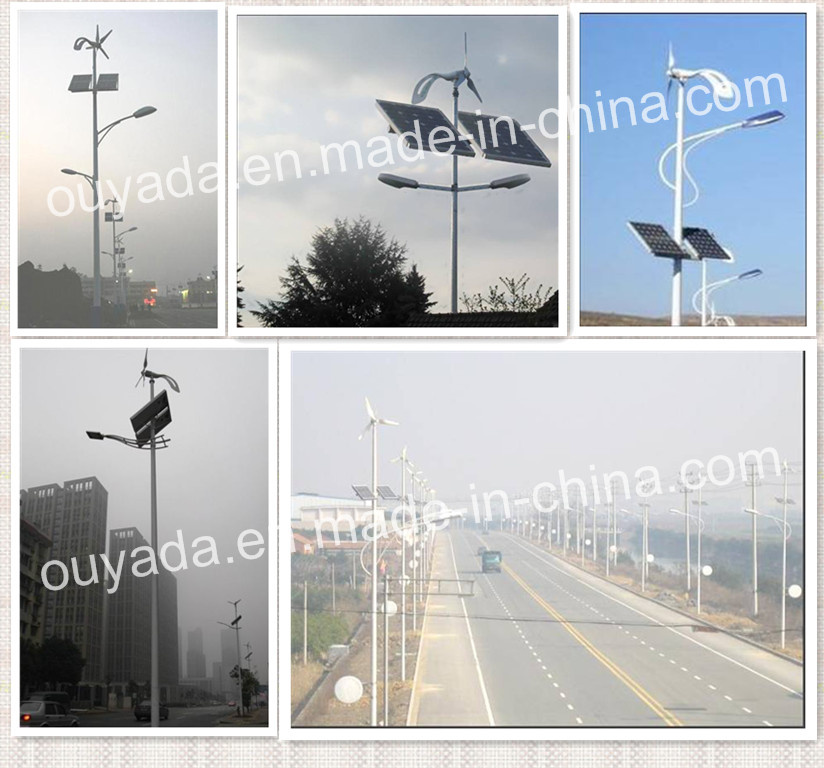

Angel series wind turbine use for led light

Descriptions:
This type of wind turbine is our small type wind turbine, it include 200W, 300W, 400W wind turbine. It is mainly use for the LED street light, landscape, hybrid system, small-size home equipment. It have so many
Advantages and it also have a special design.

Features of Angle 200W, 300W and 400W wind turbine:

1. 2m/s start-up wind speed under low torque starting technique (0.7n/m).
2. Light generator about 7kgs, easy to install. The generator was casted by aluminum, so it can endures high temperature, all together it has 27 slots, and its slots is skew. So it can lower the logging torque, what's more, the gap between stator and rotor is very small. So it is not only lower the start-up wind speed, but also guaranteed the electricity's efficiency. Our generator have a long life span, it is more than 20 years.
3. The blade casted into molding at one time with balance up to 99%. It has a stong ability to resist the strong wind.
4. The tail processed with reinforced rib.
5. Matched controller with PWM charging, electronic and manual brake, and numeral panel display.
6. We use carbon brush to prevent twisting, it can be use more than 100000 times.

CE&ISO certificate:

ModelAngel-200Angel-300Angel-400
Rated power200300400
Rated voltage242424
Roter diameter1.441.441.44
Start-up wind speed2.52.52.5
Cut-in wind speed 333
Rated wind speed 8810
Safety wind speed 353535
Yawing typeMechanism
Rated rotating rate 450450450
Genetator work waymagnetic saturation
Generator materialAluminium
Blade materialEngineering Plastic
Blade quantity3& 53& 53& 5
Tower height666
Tower diameter484848
Suggested battery capcity  12V150AH
2pcs
Matched inverter type  sine wave

Prod Model: Angel 200W, 300W, 400W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificatie: CE&ISO
Package: Carton/Plywood
Warranty: 5 Years
Protection: Electronic and Manual Brake
Yawing Type: Mechanism Yawing
Color: White
Rated Voltage: 12V/24V
Application: Small House, Street Light Hybrid System, etc.
Life Span: 20 Years
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Foshan Ouyad Electronic Co, Ltd was founded in 1998, covering an area of more than 20, 000 square meters. We have our own independent wind turbine manufacturing plant and R&D department of wind turbine generator control system, solar panel, grid tie inverter, off grid inverter, battery, etc. The headquarters are located in Guidan Road, Nanhai district, Foshan city with convenient transportation. At an early time, our company was famous for producing a variety of inverters at home and abroad. In 2005, we began to R&D and produce new energy products, and set up R&D center in Shenyang, R&D generator and brushless DC generator, and obtain great success, with 15 terms of new patents have been reported. Depending on powerful technical strength and many years manufacturing experience, Ouyad has rapidly developed into a new energy production manufacturer with a core of wind turbine system research. Our company established marketing sales and service center in Washington State in 2010. Ouyad was CE certified and has passed ISO9001 international quality management system certification, and UL certified is being tested. Our company has possessing a large of professional, and we have advanced production facility and professional inspection(testing)equipment.

The main products include the main classes:

1. Wind turbine 500W to 200KW (generator+ blades+ tower), etc.

2. Controller: (PWM&MPPT, optional)

3. Inverter: Solar inverter, off grid inverter, on grid inverter, home UPS, inverter.

4. Battery: Deep cycle(solar) battery, gel battery, sealed lead acid battery.

5. Solar panel, complete specifications from 5W to 300W (include both mono and poly crystalline)
