Company information
Weifang Huaquan Power Machinery Co.Ltd is in economic technical development area of Weicheng Shangdong Province ,professsional produing, running,developing terrestrial and marine diesel generator, natural gas generator and automatic pumps.The series of our product including lots of famous brand in the world,such as Cummmins, Steyr,deutz, Volvo,Ricardo ect.The kilowatt is from 8kw to 1500kw.Alternator are chosen as Stanford,Leroy Somer,Engga,Qianghui, and we have already registered as the name of Huaquan Diesel Generator set.We also pay attention to building after-sale service ,solved lots of customers' problems .Our product are sold to more than 30 countries and areas such as Africa ,Europe ,West Asia and Southeast Asia.
Product information
ProductsGroup By BrandSteyr Diesel Generator
HOME > Products > Group By Brand > Steyr Diesel Generator >

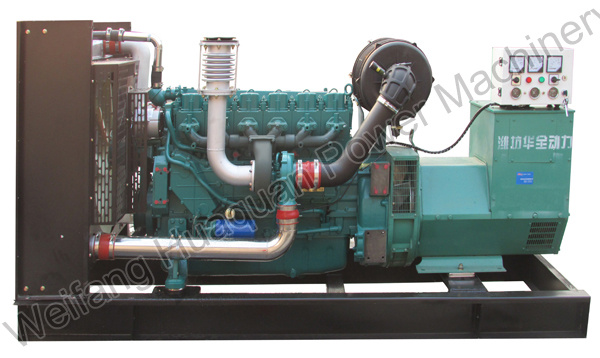

Weifang Huaquan Power Steyr series diesel generator adopt Weichai Power Steyr WP10,WP12 series diesel engine.WP10 ,WP12 series engine is the mature products after improvement on the base of Austria Steyr diesel engine.
Joint developed by Weichai European research center and AVL, WP13 series engines hand down from the advantage of high reliability and adopt new design concept, to form special optimization, then form 150kw to 400kw newest power products.
Diesel Engine Features:
1.Engine adopt gantry framework structure body, single cylinder head, with advanced performance, high reliability, convenient operation, low fuel consumption, low noise and easy to start.
2.All adopt pege down turbo charger, compact structure, concise and smooth, easy to install and transport.
3.All adopt three level nanny filter, cleaner fuel can protect the injector and injector pump , so as to prolong the unit life.
4.All adopt high pressure pump connected by the flange, improve the connection strength and reduce the vibration caused by clutch, to improve the reliability and reduce the noise.
Steyr Diesel Generator Details:
| Model | Diesel Generator | Diesel Engine | Alternator | Size
L×W×H
(mm) | Weight(KG) | Detailed |
Prime Power
(KW/KVA) | Max Power
(KW/KVA) | Model | Power
(KW) | Model | Power
(KW/KVA) |
| HQT144GF | 144/180 | 158/198 | WP10D200E200 | 150 | UCI274G | 144/180 | 2450×850×1516 | 1815 |
|
| HQT160GF | 160/200 | 176/220 | WP10D200E200 | 165 | UCI274H | 160/200 | 2540×945×1550 | 1874 |
|
| HQT184GF | 184/230 | 202/253 | WP10D200E200 | 235 | UCI274J | 184/230 | 2540×945×1550 | 2020 |
|
| HQT200GF | 200/250 | 220/275 | WP10D238E200 | 235 | JCI274K | 200/250 | 2540×945×1550 | 2080 |
|
| HQT240GF | 240/300 | 264/330 | WP10D264E200 | 281 | HCI444D | 240/300 | 3150×1120×1630 | 2970 |
|
| HQT260GF | 260/325 | 286/358 | WD12D317E200 | 281 | HCE444ES | 260/325 | 3100×1100×1635 | 3198 |
|
| HQT280GF | 280/350 | 308/385 | WD13D385E200 | 368 | HCI444E | 280/350 | 3100×1100×1635 | 3198 |
|
| HT304GF | 304/380 | 334/418 | WD13D385E200 | 368 | HCI444FS | 304/380 | 3250×1190×1700 | 3200 |
|
| HQT320GF | 320/400 | 352/440 | WD13D385E200 | 368 | HCI444F | 320/400 | 3300×1150×1700 | 3260 |
|
| HQT350GF | 350/437.5 | 385/481 | X6170ZD440-4 | 368 | HC544CF | 350/437.5 | 3300×1150×1700 | 3260 |
|
| HQT400GF | 400/500 | 440/550 | X6170ZD540-4 | 401 | HCI544C | 400/500 | 3500×1375×1980 | 3950 |
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
Company strength
Huaquan power implement the concept "quality is the survival of the foundamental ".The company has passed the ISO9001-2000 quality system certification and also has independent import and export right. And also has passed the advanced HSJF-3 auto alternator performance testing equipment which has a strict test to each performance index of diesel generator to insure 100% ex factory pass rate.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
