1. Introduction

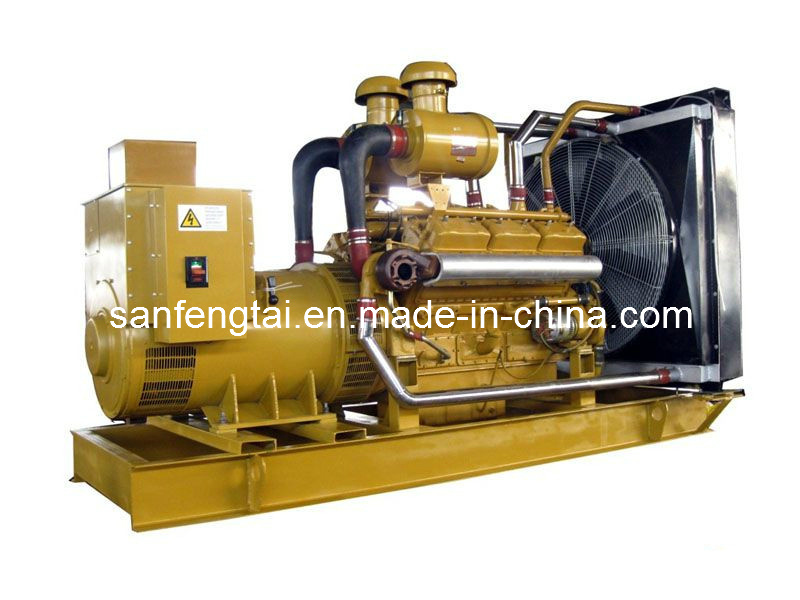

1)Shangchai series diesel generator adopts the famous China-made engine Shangchai diesel engine. It has the advantage of low oil consumption, high reliability, high performance, low price etc has win a good reputation in the China market and overseas. The quality is the same as the famous brand cummins, but price is more competitive and attracting!
2)This sets are designed for using in towns, fishing ports, high buildings, railways, sites, ships etc as an electric power source or as reserved power for using on emergent case.
3)The main technical data of GF series all meet the national standard of GB/T2820-1997, this item work out specially for the industrial using diesel generating sets.
2. Generator set standard configuration
1) Direct injection internal combustion engine (Diesel);
2) AC synchronous generator(Single bearing);
3) For the environment 40 º C -50 º C radiator, belt-driven cooling fan, fan safety cover;
4) Power output air switch, standard control panel;
5) Common steel base unit (including: Unit damping rubber pad);
6) Dry air filters, fuel filters, lubricating oil filters, starting motor, and self-charging generator;
7) Starting storage battery and connecting cable;
8) Industrial 9dB muffler and connection standard parts;
9) Files: Engine and generator original technical documentation, generating set manual, test report.
3. Optional accessories:
1) Oil, diesel, water jacket, anti-condensation heater;
2) Battery float charger;
3) Self-protection, self-starting unit control panel;
4) with the "three remotes" unit control panel;
5) ATS automatic load converter;
6) Split daily fuel tank, integrated base fuel tank;
7) Rainproof unit (cabinet);
8) Silent unit (cabinet);
9) Mobile station(cabinet trailer);
10) Silent mobile station(cabinet trailer).
4. Commercial Conditions:
1) Port of loading: Qingdao port
2) Port of destination: To be informed
3) Delivery time: 15-40 days after down payment
4) Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5) Insurance: 110% of total amount
6) Failure Remedy: Free spare parts due to failures cause by the quality
5. Standard:
ISO9001: 2000; CE
6. Warranty:
1) 12 months after commissioning unit or 1, 000 hours of cumulative operation due to the first maturity;
2) Free repair or parts for the product quality problems and paid services for life;
3) Wearing parts, used parts, man-made damage, negligent maintenance are not in the warranty;
If the origin factory makes adjustments, execution will be done in accordance with the warranty ordinance of origin factory!
7. Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Cummins power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Genset Model |
GFSD-XZ200 |
SET |
Genset model |
GFSD-XZ200 |
Output power |
200KW |
Power factor |
0.8(lagging) |
Rated Output voltage |
400V/230V |
Rated current(Standard/prime) |
360/396A |
Rrted Freguency |
50hz |
Rated Rotating speed |
1500rpm |
Starting Controlling Mode |
Hand Movement |
The grade of fuel |
(standard)0#light diesel (normal) |
Dimension |
2950*1080*1680(L*W*H mm) |
Genset weight |
1970kg |
Voltage Regulation steady state(%) |
≤±1 |
Voltage fluctuation rate(%) |
≤±0.5 |
Voltage regulation transient state(%) |
+20~-15 |
Voltage stability time(s) |
≤1 |
Reguency regulation steady state(%) |
≤±1 |
Requency fluctuation rate(%) |
≤±0.5 |
Requency regulation transient state (%) |
+10~-7 |
Reguency stability time(s) |
≤3 |
Fuel consumption at 100% load |
≤207g/kw*h |
Nose(LP7m) |
100dB(A) |
ENGINE |
Place of origin/brand |
DongFeng |
Diesel engine model |
G128ZLD2 |
Number of cylinders |
6/L model |
Bore*stroke |
135*150 mm |
Compression ratio |
17:1 |
Starting method |
DC24V Electrical starting |
Cooling system |
Closed water circulation cooling |
Oil way |
Direct injection |
Intake way |
Turbocharge |
Overload capacity |
110% |
Rotating speed |
1500rpm |
ALTERNATOR |
Place of origin/brand |
JiangYue |
Alternator model |
Y838A |
Rated power |
200Kw |
Rated voltage |
400V/230V |
Insulation class |
H class |
Protection class |
IP22 |
Connecting type |
3phase4wires Y type |
Accommodation type |
AVR |
Output frequency |
50hz |
Output factor |
0.8(lagging) |
|
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
