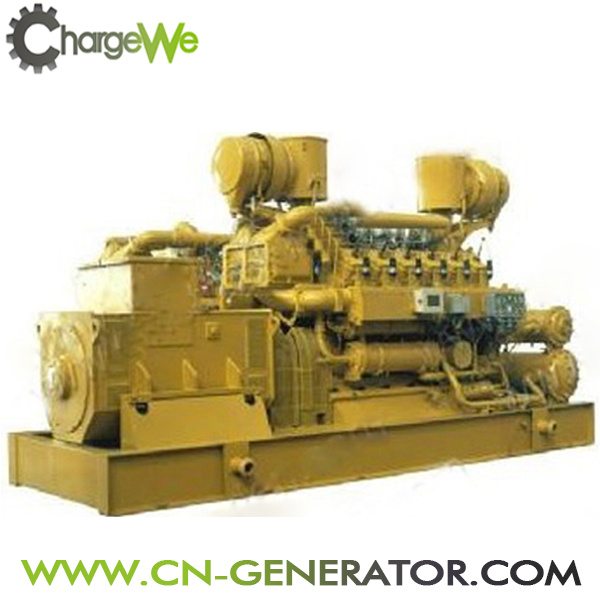

200kw Gas/Electric Motor Nature Gas Generator Set

Nature Gas Generator Set
Nature gas is mainly composed by CH4 which occupies almost 90% of total gas. The by-product of nature gas combustion(nitrogen oxide, HCHydrogen Carbonide and carbonic oxide) is much lower than the state standards and environmental friendly. The thermal transformation efficiency is 65%, same as LPG's and higher than coal's. The price of nature gas is lower than coal and petroleum in each unit of calorific value. Nature gas can be used in home application, electricity generation, industrial chemical and industrial fuel etc. It is a great substitution of coal and petroleum which can be used in civil coal gas, as nitrogenous fertiliser, as ethylene of naphtha, as the car engine fuel etc.

Model No.	CW-200GFT
Engine No.	CW12V135
Rated Power	200kw
Rated Power Factor	0.8
Rated Speed	1500r/min
Rated Frequency	50hz
Rated Current	360A
Heat Consumption	≤11.5mj/kw.h
Pression	3-20kpa
Cylinder Quantity	12
Stoke Distance	150mm
Cylinder Diameter	135mm
Compression Ratio	10:1
Intake Mode	Nature Intake
Sparking Mode	Sparking Plug
Voltage Regulation Mode	Automatic
Speed Regulate Mode	Electronic Speed Regulate
Lubricating Mode	Press and Plash
Cooling Mode	Circulating Water Cooled
Starting Mode	24V Electric Moter
Overhaul Time	≥2500
Noise	≤105
Exhaust Temperature	≤650ºC
Displacement	25.4L
Size	6000×1900×2170
Weight	4000Kg

Requirements for Nature gas generator set:
1.Within 1m from pressure regulating valve of gas intake
2. The ratio of CH4 in nature gas ≥70%
3. Pressure of nature gas :80~200kpa ,rate of pressure change ≤1kpa/min .
4. H2S≤20mg/Nm3
5. Moisture content ≤ 40g/Nm3
6. Impurity particle size ≤5um,impurity contect≤30mg/Nm3

Noted: If there is excessive sulphur and ammonia in the fuel, the pole of sparking plug would be seriously corroded.The increase of acid value will directly results in corrosion of the equipment with precipitates.

Application: 1.Oil field 2.Industrial zone 3.Petroleum chemical plant 4.Standby power source 5.Supply power for the auxiliary engine which work in oil well




Shandong Chaiwei Power Equipment Co.,Ltd is a comprehensive high-tech enterprise, engaged in developing, manufacturing and selling new type of environmental protection generators. We own a brand named CHARGEWE for the generator set we produced classified by separate fuel such as diesel, biogas, nature gas, biomass etc. from 20kw -1000kw with CE&ISO9001:2008 quality control system certification.

A self-developing engineering team and a complete quality inspection system is concentrated on design and improvement during the productive process to meet different requirements. Thereafter, a professional after-sale service department is duty-bound to guarantee the generator set to be correctly installed and running normally. Also, the OEM and ODM service are available.

With the tremendous strength and good prestige,  CHARGEWE can offer you excellent service and be your best partner in generate electricity field with the most reasonable price.

Please feel free to contact us with any questions or concerns you may have.

Charging, we do!!




Shandong Chaiwei Power Equipment Co.,Ltd uphold the principle of " a full range, high quality, fast " service standards, customer satisfaction as the goal, to the public commitment.
1.Our company has set up a number of excellent emergency service team, experienced engineers and senior technicians, to solve in the fastest time for any problems, maintenance and accessories replacement.
2.After product delivered, after-sales service department staff would phone tracking until customers' satisfication.
3. Over the warranty period of the product, our company promises lifelong inspection and maintenance.
The service commitment to the final interpretation of the Shandong Chaiwei Power Equipment Co., Ltd. all.
