| Price: | US $ 21000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
MODEL | R-V250 |
PRIME POWER (KVA/KW) | 250/200 |
STANDBY POWER(KVA/KW) | 275/220 |
Rated voltage(V) | 400/230 |
Rated speed(rpm) | 1500 |
Rated frequency(Hz) | 50 |
Power factor | 0.8 |
Ambient temperature(°C) | 40 |
Altitude(m) | 1000 |
Connection type | 3 phase 4 wires |
ENGINE MANUFACTURER | VOLVO |
Model | TAD734GE |
Rated Power(kW) | 213 |
No. of cylinders & configuration | In-Line 6 cylinders |
Method of operation | 4-stroke |
Speed regulation | Electric governor |
Starting system | DC 24V Electronic start |
Cooling method | Closed-circuit cooling system |
Total displacement(L) | 7.15 |
Compression ratio | 17:1 |
Bore×Stroke(mm) | 108×130 |
100% Load fuel consumption(L/h) | 48 |
ALTERNATOR MANUFACTURER | STAMFORD |
Number of Phase | 3 |
Connection Type | 3Phase and 4Wires |
Number of Bearing | 1 |
Power Factor | 0.8 |
Protection Grade | IP23 |
Terminal | 12 |
Winding/ Pitch | 100% Copper 2/3 Pitch |
Cooling Fan | Cast alloy aluminum |
Exciter Type | Brushless, Self-Exciting |
Insulation Class, Temperature Rise | H/H |
Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
Voltage Regulation, Steady State | ≤±1% |
Sustained Short-Circuit Current | 300%(3 in):10s |
CONTROL SYSTEM | DSE SERIES |
| Prod Model: | R-V250S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

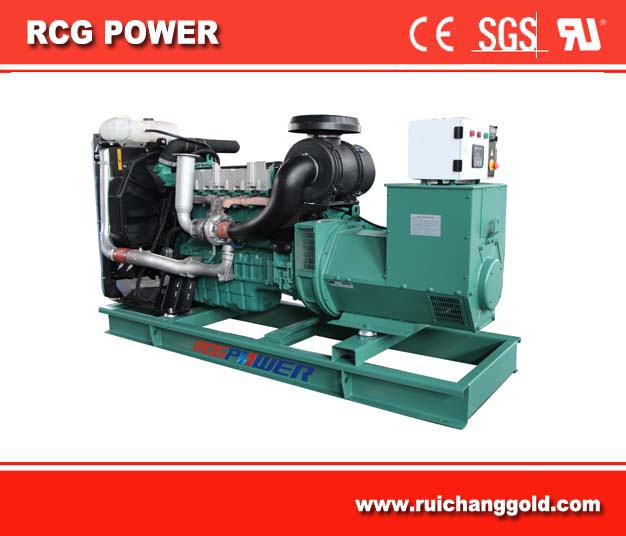

| Product Name: | 200kw/250kVA Volvo Generator |
| Frequency: | 50Hz /60Hz |
| Engine: | Model |
| Control Panel: | Deep Sea |
| Fuel Tank: | at Least 8h |
| Cooling Type: | Water Cooling |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
