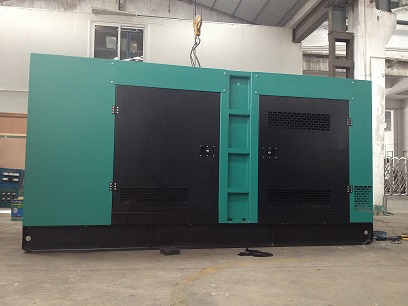

200kw / 250kVA Low Noise Cummins Diesel Generator (6LTAA8.9-G2)
Price: |
US $ 19500/Piece |
Trade Terms: |
FOB,EXW,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Description-200KW Silent,soundproof genset with cummins engine
1.Powered by Cummins Engine2. With Stamford / Leateck Alternator3. With CHINT / ABB MCCB & Electronic Components4. Electric Start with Battery5. Base Integrated Fuel Tank6. ATS, Deepsea / ComAp / Smartgen Controller7. Comply with CE/SGS/ISO8. After-sale ServicesModel No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
KVA | KW | KVA | KW |
OCL-275 | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | LTG274L1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wires Generator set specificationsGovernor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous(0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr) | 210(53.72) |
Starting Battery Capacity ,A/hrhhr | 200*2 |
Total Coolant Capacity ,L | 41 |
Fuel Capacity (base tank),L | N/A |
Engine DataModel | 6LTAA8.9-G2 |
Type | In-line 6 Cylinder,4 Cycle |
Displacement ,L | 8.9 |
Compression Ration | 16.0:1 |
Aspiration | Turbo, Air / Air Cooling |
Fuel System | P7100 type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 114*145 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 27.6 |
Coolant Capacity, L | 41 |
Alternator DataProtection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF) | <2% |
Exhaust SystemExhaust air flow | 35m3/min |
Exhaust Temperature | 470ºC |
Max Back Pressure | 10.1kPa |
Air Intake SystemMax Intake Restriction | 6.2kPa |
Burning Capacity | 13m3/min |
Air Flow | 326m3/min |
Lubricant System Total Lubricant Capacity | 27.6L |
Lubricant Consumption | ≤4g/kwh |
Engine Oil Tank Capacity | 24L |
Oil Pressure at Rated Speed | 276-414kPa |
Our Advantages
Short time delivery within 15-20 days.
8 hours strict continuous testing before delivery
OEM manufacturer of Cummins Company
Sinopec Group's designated Generator manufacturer
17 years of experience in production generators
According to customer demand for customized processingOur Services
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, ORIPO POWER will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, ORIPO POWER provides cost spare parts maintenance of alternator.
ORIPO - Power supply best after-sales service.Payment term
1, TT(30% advance,the balance is paid before dispatch)
2, L/C(100% irrevocable L/C at sight.)Delivery time
Within 15-20 days after receiving T/T 30% advance or L/C at sight.
Prod Model: |
OCL-275 |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Dimension: |
3700*1300*1887mm |
Alternator: |
Leateck/Stamford |
Controller: |
Smartgen/Deep Sea |
Insulation Grade: |
H |
Protection Grade: |
IP21-23 |
Start System: |
Electric Start |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
