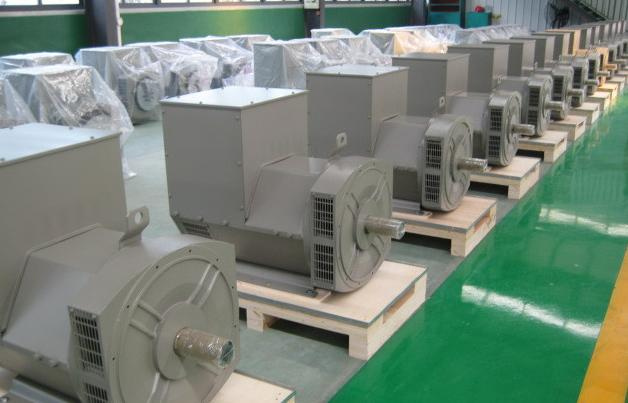

200kVA Three Phase Brushless AC Alternator to Generator

Specifications
1) Power range: 100-312.5kVA(80-250KW).
2) Brushless Synchronous A. C. Alternator,
3) Stamford Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3 pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other genetator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,

Parameters
1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3) 50Hz/1500rpm and 60Hz/1800rpm for option
3) Drip-leak-proof structure: IP22/23 protection class
4) Insulation class H
5) Adjusting rate of stable voltage≤ 1%
6) Transient state voltage≤ -15% - +20%
7) Wave aberration rate of voltage THD≤ 3%
8) Telephone harmony wave factor of telephone THF≤ 2%

Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, IEC 34,
2) GODLIKE generators are Certified of CCC, CE, ISO9001, SGS

Solutions
1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Perkins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc

Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.

Catalogue    of  JDG  series  alternators
Model	50hz  /  1500rpm/3  phase				60  hz/  1800rpm/  3  phase
	190  -  454V				110-240V/230-690V
	KVA		KW		KVA		KW
JDG  164A	8.1		6.5		10.2		8.2
JDG  164B	11		8.8		13.8		11
JDG  164C	13.5		10.8		16.9		13.5
JDG  164D	16		12.8		20		16
JDG  184E	22.5		18		30		24
JDG  184F	27.5		22		35		28
JDG  184G	31.3		25		37.5		30
JDG  184H	37.5		30		46.9		37.5
JDG  184J	42.5		34		50		40
JDG  224C	42.5		34		55		44
JDG  224D	50		40		65		52
JDG  224ES	56.25		45		70		56
JDG  224E	60		48		75		60
JDG  224F	72.5		58		93		74.4
JDG  224GS	80		64		100		80
JDG  224G	85		68		103		82.4
JDG  224H	94		75		115		92
JDG  274C	100		80		125		100
JDG  274DS	120		96		146		117
JDG  274D	125		100		150		120
JDG  274ES	140		112		178		142
JDG  274E	150		120		187.5		150
JDG  274F	160		128		206		165
JDG  274G	190		152		225		180
JDG  274H	200		160		255		204
JDG  274J	230		184		300		240
JDG  274K	250		200		312.5		250
JDG  314C	250		200		320		256
JDG  314DS	275		220		344		275
JDG  314D	300		240		375		300
JDG314ESS	312.5		250		387.5		310
JDG  314ES	325		260		419		335
JDG  314E	350		280		440		352
JDG  314FS	380		304		475		380
JDG  314F	400		320		500		400
JDG  354C	450		360		594		475
JDG  354D	500		400		644		515
JDG  354ES	562.5		450		703		562.5
JDG  354E	600		480		750		600
JDG  354FS	625		500		738		590
JDG  354F	670		536		825		660
JDG  354G	700		560		862.5		690
JDG  404B	750		600		938		750
JDG  404C	800		640		1000		800
JDG  404D	910		728		1138		910
JDG  404E	1000		800		1250		1000
JDG  404F	1125		900		1390		1112
JDG  404G	1250		1000		1513		1210
Parameter
Frequency:	50Hz				60Hz
Power  range:	8-1250kva  at  50Hz				10-1500kva  at  60Hz
Rotational  speed:	1500rpm  at  50Hz				1800rpm  at  60Hz
Rated  voltage:	110-690V
Insulation  class:	H
Temperature  class:	H  (can  meet  class  F  working  and  standby  working)
Bearing:	single  bearing				two  bearing
Protection  class:	IP23
Features:	4  poles; AVR  controlled; 12  wire  reconnectable  winding; 100%  famous  brand  copper  wire; 2/3  pitch  windings  avoid  excessive  neutral  currents; dynamically  balanced  rotor  and  sealed-for-life  bearings; 110%  loading  can  work  1  hour  every  12  hours; Permanent  Magnet  Generator(PMG)  is  available  as  an  option;
Terms
MOQ:	2  units
Packing:	in  strong  plywood
Color:	standard  BAL7030  (according  to  the  customer' s  request)
Load  Port:	Shanghai  Port,   China
Lead  time:	about  7days(1  week);
Warranty:	2  years
