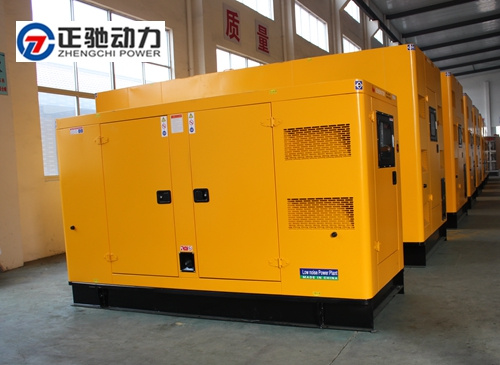

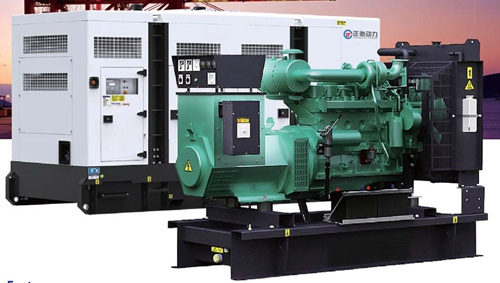

200kVA Silent Generator with Perkins Engine
| Price: |
US $ 20012/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
200KVA Silent Generator with Perkins Engine, used as prime /standby power for factory, bank...| Diesel Generator Specifications |
| Manufacturer: | Yangzhou Zhengchi Power Equipment Co.,Ltd. |
| Model: | ZCDL-P176 |
| Prime Power: | 160KW / 200KVA |
| Standby Power: | 176KW / 220KVA |
| Frequency: | 50HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F(COS¢): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 288A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler |
| Altitude: | ≤1000m |
| Engine Specifications |
| Brand and Model: | Perkins 1106A-70TAG4 |
| Aspiration: | Turbocharged |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 7.01L |
| Bore and Stroke: | 105×135 mm |
| Compression Ratio: | 16.0:1 |
| Rated RPM: | 1500rpm |
| Maximum Output Power: | 192KW |
| Governor Type: | Electronic |
| 100% Load Fuel Consumption: | 205g/Kw.h |
| Total Lubrication Capacity: | 16.5L |
| Total Coolant Capacity: | 21.0L |
| Cooling System: | Forced water cooling cycle |
| Alternator Specifications |
| Manufacturer: | Mecc Alte Alternator (Haimen) Ltd |
| Model: | ECO38-2SN/4 |
| Rated Capacity: | 200KVA |
| Winding: | 100% Copper Wire |
| Frequency: | 50HZ |
| Speed: | 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Alternator Warranty: | 2 Year No Time Limited |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Voltage Regulation: | ≥±5% |
| Control System Specifications |
| Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
| Model: | DSE6020 |
| Type: | AMF Automatic Operation |
| Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
| Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive
Shutdown, Charge Failure |
| Size and Weight |
| Open Type Overall Size: | 2850mm*850mm*1350mm |
| Weight: | 1400 KG |
| Soundproof Type Overall Size: | 3400mm*1130mm*1950mm |
| Weight: | 2360 KG |
| Prod Model: |
ZCDL-P176 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Silent Noise: |
65db at 7 Meter |
| Engine Powered: |
Perkins Engine |
| AC Alternator: |
Mecc Alte Alternator |
| Fuel Tank: |
Base Fuel Tank |
| Color: |
Engineer Yellow |
| Fuel: |
Diesel |
| Stroke: |
Four Stroke |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Three Phase |
| Excitation Mode: |
Self Excitation |
We, Yangzhou Zhengchi Power Equipment Co., Ltd., are located in Yangzhou City, Jiangsu Province, which is the central part of manufacturing generator industrial zone in Southeast China. Our company is specialized in manufacturing diesel generating sets and supplying various power products, like engine parts, controllers, ATS, etc. We manufacture OEM generators powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. Our product specifications range from 7KW to 2400KW and from 50Hz to 60Hz frequency, with open type, silent type, trailer type, containerized type, etc. All products are manufactured in accordance with ISO8528 production standard to ensure the best quality.
Besides manufacturing OEM diesel generators, we also supply various power products to meet customers' One-stop solutions demands, such as transformers, power cables, control panels, generator spare parts, field services, etc.
Our commitment is to provide power products to meet customers' Requirements, create more value for users and make contributions to social development by providing power. Open, efficiency, and cooperation are values of our company. We keep an open mind and emphasize operational efficiency, advocate teamwork, and respect for professional accumulation. We are committed to building a professional, first-class brand in electrical products and engineering equipment.
