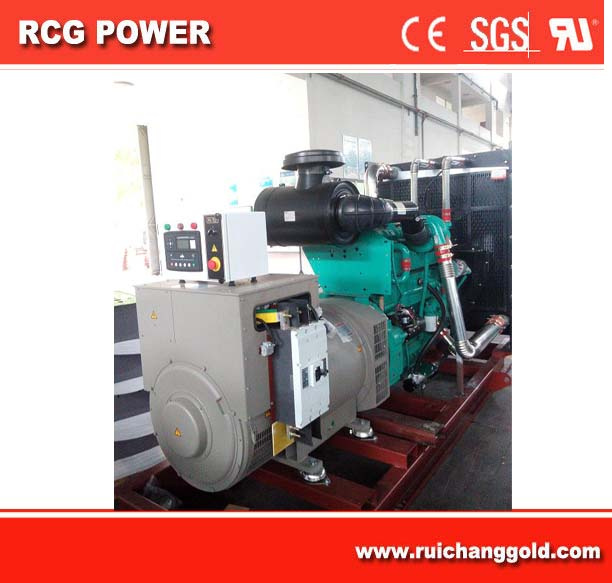

Product: 160KW / 200KVA Cummins Generator
Rated Power(KW): 160kw / 200KVA
Engine Model: Cummins 6CTAA8.3-G2
Rated Power(KW): 166
Max Output(KW): 207
Displacment: 14l
Fuel Consumption(G/KW. H): <200
Intaking Method: Turbocharged
Governing Method Electronical
Cylinder Numbers: 6 In Line
Cooling Starting Method Water Cooled/Elctric Starting
Rated Voltage(V) 400, 415, 440/200, 208, 220
Frequency(Hz) 50/60
Power Factor(COS? ) 0.8 Lagging
Phase/Connection 3-Phase 4-Wire Y Type Connection
Alternator: Stamford HCI444F
Excitation Brushless Excitation
Voltage Regulation Automatic/A. V. R
Net Weight(Kg): 3000
Packing Size LWH(mm) 3300*1150*1900
Option: Soundproof, AMF, ATS
RUICHANG
Generating Set Model |
RC-480GF |
|
Prime |
Standby |
|
Power(kW) |
160 |
176 |
|
Capacity(KVA) |
200 |
220 |
|
Current(A) |
282 |
282 |
|
Rated voltage(V) |
400/230 |
|
Rated speed(rpm) |
1500 |
|
Rated frequency(Hz) |
50 |
|
Power factor |
0.8 |
|
Ambient temperature |
40 |
|
Altitude(m) |
1000 |
|
Connection type |
3 phase – 4 wires |
|
Engine Manufacturer |
CUMMINS |
|
Model |
KTAA19-G6 |
|
Power(kW) |
483 |
570 |
|
No. of cylinders & configuration |
In-Line 6 cylinders |
|
Method of operation |
4-stroke |
|
Speed regulation |
Electronic governor |
|
Starting system |
DC 24V Electronic start |
|
Cooling method |
Closed-circuit cooling system |
|
Total displacement(L) |
18.9 |
|
Compression ratio |
13.5:1 |
|
Bore×Stroke(mm) |
159×159 |
|
100% Load fuel consumption(L/h) |
≤136.2 |
|
In-let gas flow(L/min) |
692 |
|
Exhaust gas flow(L/min) |
1855 |
|
Exhaust gas temperature |
450 |
|
Lube oil capacity(L) |
50 |
|
Noise(dB) |
≤105 |
|
Alternator Manufacturer |
Wuxi Newage Alternators Ltd. (STAMFORD) |
|
Alternator model |
HCI5E |
|
Exciting method |
Brushless |
|
Voltage regulation |
AVR |
|
Short circuit protection |
MCCB |
|
Steady state frequency regulation ratio |
≤5% |
|
Range of voltage regulation at no load |
≥95%~105% |
|
Steady state voltage regulation ratio |
≤±1% |
|
Insulation class |
H |
|
Enclosure class |
IP23 |
|
Phone interference |
THF≤2% / TIF≤50 |
|
Overall dimension (NET)(mm) |
3500×1250×1950 |
|
Weight(kg) |
5000 |
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
