Item
No.
Ozone Output (g/h)
Concen
Tration(mg/L)
Rated power(kw)
Air
Flow rate
(m3/h)
Cooling water
Flow
Rate
(m3/h)
Working pressure(Mpa)
Air dew point(° C)
Relative humidity
Power supply (V/Hz)
Power consumption (kwh/KGO3)
Weight (Kg)
Dimensions
(mm)

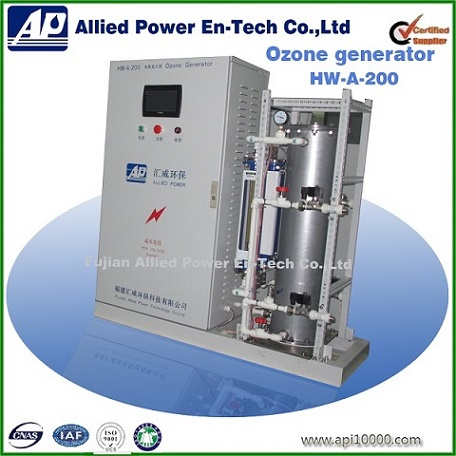

HW-O
-200
200
120
1.8
1.7
0.4
0-0.2
-45
≤ 60%
220V
/50Hz
8.5
100
1000*600*800
Description:
1. Ozone generation concentration 0-230mg/L adjustable
2. Microcomputer automatic control, human-machine interface display, a key type operation, easy And convenient
3. Stable and reliable system, Low power consumption, produce 1 kg average power Consumption just 7 KW*H
4. Group control function, a host control platform machine, digital remote monitoring and control, Real-time analysis and diagnosis system failure
5. Ozone production adjustable
6. Time switch machine Settings, realize unattended
7. Adopt cooling water system. It do not scaling moss
8. Ozone gas outlet own 0.2 Mpa pressure, it could transport gas without any external Equipments during certain scope
Application:
1. Pharmaceutical factory clean area, cosmetic workshop clean area, disinfection sterilization, no Secondary pollution, instead of traditional ultraviolet disinfection
2. Food beverage factory processing water, animal husbandry and aquaculture water sterilization Disinfection
3. Swimming pool sea family house, disinfection sterilization except algae
Remark:
1. Pharmaceutical factory clean area, cosmetic workshop clean area, disinfection sterilization, no Secondary pollution, instead of traditional ultraviolet disinfection
2. Food beverage factory processing water, animal husbandry and aquaculture water sterilization Disinfection
3. Delivery time: 30 days after everything confirmed and receive 30% deposit.
Based on ozone technology, we are a new high-technology enterprise which specializes in the line of ozone generation mechanisms, ozone application, ozone material research and ozone equipment making. We cater to diversified industries and applications, which include drinking water treatment, sewage treatment, swimming pools, public fields in hospitals, pharmacy, paper making, printing and dyeing, etc.
