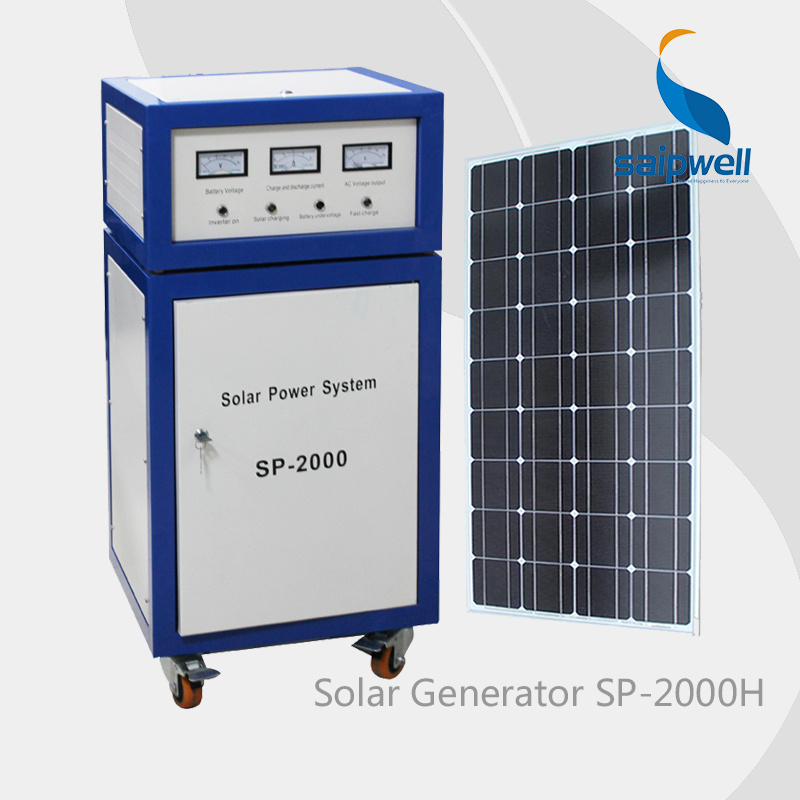

2000W Solar Energy System for Home (SP-2000H)
Product Introduction:
Solar technologies are broadly characterized as either passive solar or active solar depending on the way they capture, convert and distribute solar energy. Active solar techniques include the use of photovoltaic panels and solar thermal collectors to harness the energy. Passive solar techniques include orienting a building to the Sun, selecting materials with favorable thermal mass or light dispersing properties, and designing spaces that naturally circulate air.
Packaging&Shipping:
Packaging detail: Standard export packing
Shipping detail: Within 5 days after getting payment
Our service:
Inquiry: Always reply in 24 hours.
Shipment: Sea transportation, air transportation or express, fast delivery.
Payment: T/T Advance, L/C 100% Payment if total amount less than $10, 000USD.
Warranty: 1~3 years.
We provide best OEM service.
About us:
Saipwell Electric Group Co., Ltd is an enterprise specialized in design, production and sales of electric equipments. Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called"the Electric Equipment Capital of China", next to Shanghai and Ningbo Ports.
Saipwell has Five specialized branches, over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
More details, please contact with us.
Tel: 0086-021-56026033-8052 Mob: +86 15026900836
We're Professonal, as always~
|
Technical data: |
|
Item No. |
SP-2000H |
|
Capacity |
2000VA |
|
System voltage |
110VDC |
|
Best output power everyday |
3378WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
7.2A(220V) /14.5A(110V) |
|
Precision of output voltage |
± 3% |
|
Precision of output frequency |
± 0.1% |
|
False output wave of AC |
< 3% |
|
Overload ability |
120%, 30 seconds |
|
Invert efficiency |
> 85% |
|
Solar panel |
Pmax |
900W |
|
Vmp |
157.5V |
|
Imp |
5.7A |
|
Battery |
Capacity |
108V100AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
550*575*320 |
45 |
28 |
70 |
|
Solar panel |
1200*850*425 |
102 |
|
Solar panel bracket |
2270*85*225 |
56 |
|
Battery |
1108*630*275 |
260 |
|
Battery bracket |
2270*85*75 |
35 |
|
Load reference: |
|
Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
|
Color TV |
65W |
1 |
6 |
3 days |
|
Satellite TV Receivers |
25W |
1 |
6 |
|
LCD Computer |
100W |
1 |
2.5 |
|
Energy-saving lamp |
11W |
6 |
6 |
|
Printer |
30W |
1 |
1 |
|
Electrograph |
150W |
1 |
1 |
|
Water Pump |
200W |
1 |
1 |
|
Refrigeratory |
100W |
1 |
24 |
|
Washing machine |
300W |
1 |
0.5 |
