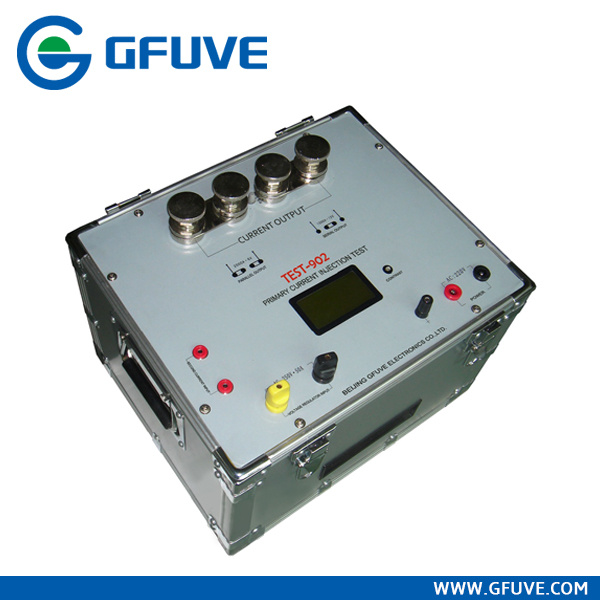

TEST-902 2000A Large current injection generator
Product Description
TEST-902 primary current injection test set use ARM chip to control the output process and large capacity of toroidal transformer, and equipped with LCD screen display current meter, also showed primary current value, second current value, turn ratio and the action time. Equipped with aluminum alloy chassis, PC panel, which has the advantages of beautiful appearance, large output capacity, small volume, light weight etc...It is mainly applied to test CT turn ratio in the power system and the contact resistance etc, which need large current.
Specifications
| Electrical parameters |
|---|
| Accuracy | ±0.5% |
| Power Supply (AC) | 220V±10%·50A, 50Hz/60Hz or
110V±10%·100A, 50Hz/60Hz |
| Current Output (AC) | 2000A·6V or 1000A·12V |
| Capacity | 12KVA |
| The current output waveform distortion | ≤5% |
| Primary current |
|---|
| Range | 0-2200A |
| Resolution | 0.1A |
| Accuracy | <0.5% |
| Secondary measurement |
|---|
| Range | 0-6A |
| Resolution | 0.001A |
| Accuracy | <0.5% |
| Current duration |
|---|
| 2000A range | 2000A 2-3minutes
1000A 3-6minutes |
| 1000A range | 1000A 2-3minutes |
| Mechanical parameters |
|---|
| Dimensions (W×D×H) (mm) | 360×300×295 |
| Weight (kg) | Host 35kg,
External voltage regulator weight 15kg |
| Environmental conditions |
|---|
| Temperature | -10°C to 40°C |
| Relative humidity | ≤80% |
Primary Current Injection Test Set max current output 2200A, it can test current transformer turn ratio, and as large current generator.
