Features Benefits
1. Excellent cooling system, reliable operation under harshest
2. Comditions function stability credibillty, service convenience
3. GU621 control panel with AMF function
4. Low operating cost results in optimal economy
5. With sound attenuated enclosures available with high protectionagainst and dust
6. Gets the job done whereever you are
7. Designed with safety in mind earth leakage protection
8. Ease of installation, operation, and maintenance
|
Product name |

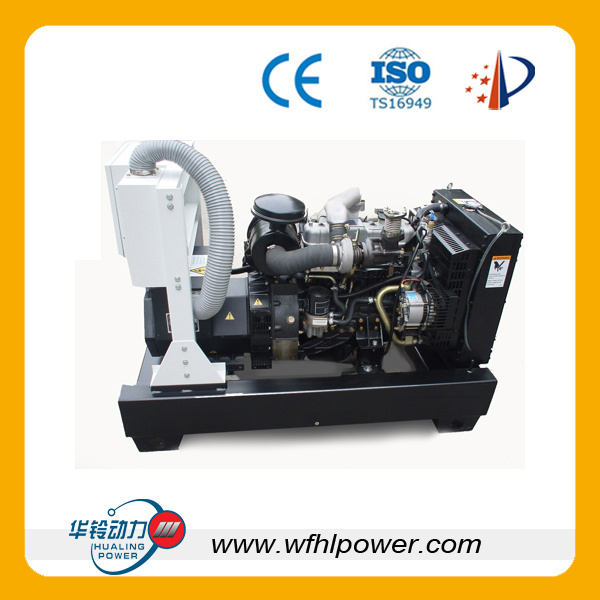

Fuel Gas Electric Generator System 25kw-125kw |
|
Model |
HL25GF-493M-09 |
|
Type |
Four stroke, inline four-cylinder, Water cooling, dry-type thin-wall cylinder liner |
|
Fuel |
Natural gas or Biogas |
|
Number and layout of cylinders |
4-cylinder, In line |
|
Bore and Stoke |
93X102mm |
|
Compression ratio |
12: 1 |
|
Rated power |
25KW-125KW |
|
Rated speed |
1500r/min |
|
Idling speed |
800± 50 r/min |
|
Lowest Gas consumption |
≤ 0.22m 3 /kW@ h |
|
Cylinder firing order |
1-3-4-2 |
|
Noise |
≤ 90Db(A) |
|
Ignition model |
EUC electronically controlled ignition |
|
Generator Type |
Marathon, Stamford |
|
Phase and connection |
3-phase 4-wire system |
|
Way of the generator excitation |
brushless |
|
Rated Voltage |
400V |
|
Rated Frequency |
50HZ |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
