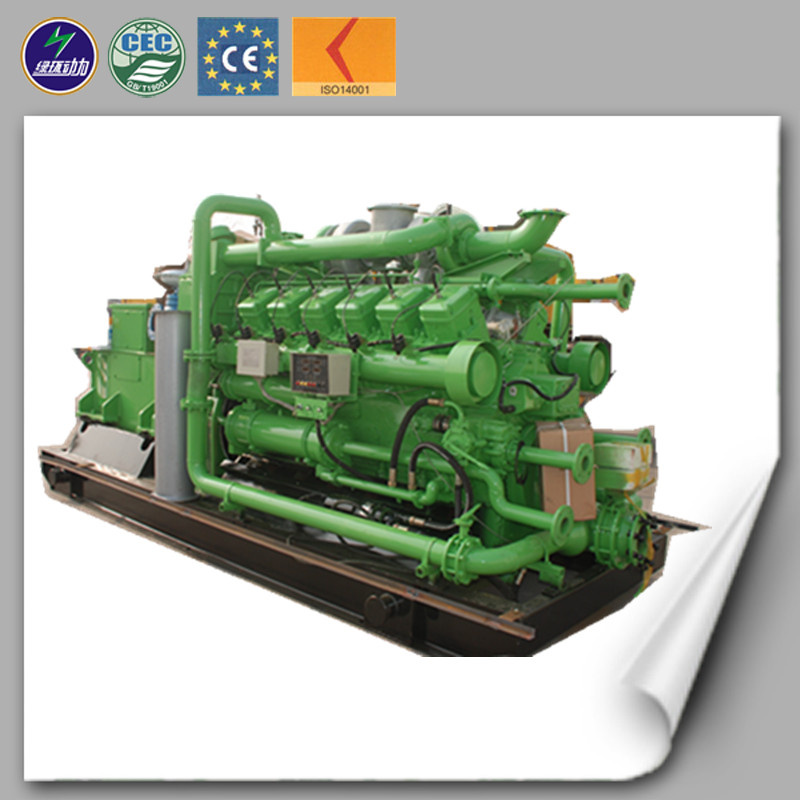

20-500kw Biomass Generator Set for gas of Wood waste Power Generator Set CE&ISO with 12V190 Engine LVHUAN
We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.
1. Requirements For Biomass Gas Genset Working Condition:
Within 1m from pressure regulating valve of gas intake
Gas temperature ≤ 40ºC
Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
H2S ≤ 200mg/Nm3
NH3 ≤ 20mg/Nm3
Tar Contecnt ≤ 20 mg/Nm3
Heat value ≥ 4.2MJ/Nm3
Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3
2. Advantage:
Strong structure & Strengthen accessories.
Super performance of electric speed governer & Gas pressure regulation system.
Auto voltage regulation & Stable working condition.
Long using life and low-operation cost.
Easy Start & Auto start.
High quality & imported & accurate gas control system.
Low requirement on gas heat value for easy generation.
Strong control system anti-interference ability.
3. Technical Parameters:
Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LHBMG20~LHBMG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 20KW~500KW |
| Rated Speed | 1500/1000RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/6300V/10500V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 3.61~71.4L |
| Cylinder Number | 4~12-V |
| Cylinder Bore | 100~190mm |
| Stroke | 115~210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 1650x720x1250mm/6200x2100x2800mm |
| Weight | 750~12500kg |
4. Service:
4.1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
4.2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
4.3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
5. Accessories:
5.1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.
5.2.All parts were from original factories or professional factories,complete in specification,keep good quality.
6.Company Introduction:
Since 2008.
Factory area over 40000m2.
Starff over 260 employees.
Technicians over 100 people.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
