1, AVR control
2, IP22, Insulation Class H
3, 2/3 pitch winding
4, Single or double bearing option
5, ISO9001-2008, CE certificate, SGS
6, 100%copper, 100%output
7, warranty 12 months
Features:
1. Optional permanent magnetic alternator, provide invariable excitation in any situation.
2. Easy to be connected with power network or other alternators. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial standards.
|
Jiangsu Farrand Alternator Technology Co.,Ltd |
|
|

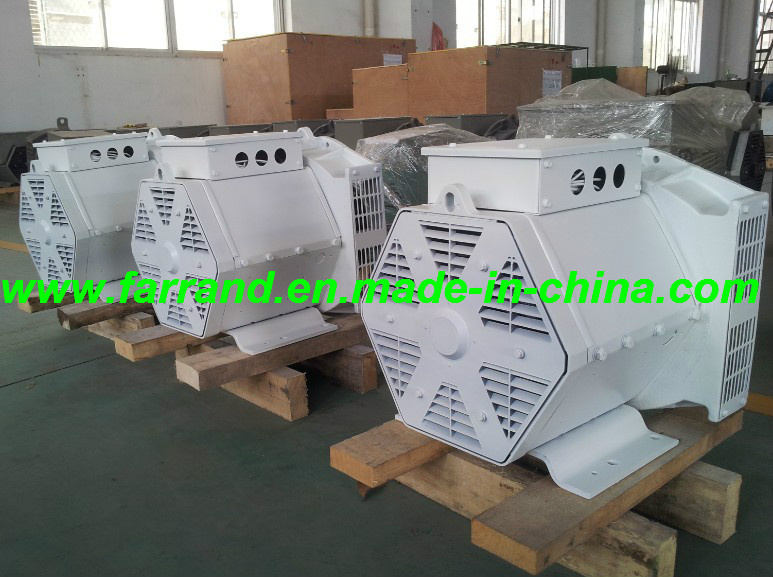

2-pole Farrand brushless alternator specifications 1/3 phase H Class Temperture-rise(125°C) |
|
Rating Power Factor |
0.8/1 |
|
Altitude |
1000m |
|
Insulation Class |
H |
Excitation System |
Shunt |
|
Lead Number |
12 |
A.V.R Model |
SX460/MX321/MX341/SX440/SX440T/AS440 |
|
Winding Pitch |
2 / 3 |
Voltage Regulation |
±1% |
|
Ingress Protection |
IP 22 / 23 |
Transient Voltage Recovery Time(s) |
≤1.0 |
|
Waveform:NEMA-MG1 |
≤50 |
Waveform:IEC-THF |
≤2% |
|
Ambient Temperature |
40° C |
40° C |
40° C |
40° C |
|
Temperature Rise |
125° C |
150° C |
125° C |
150° C |
|
Phase / Insulation |
3 Phase / H Class |
3 Phase / H Class |
|
Frequency |
50Hz(3000rpm) |
60Hz(3600rpm) |
|
Voltage ( V ) |
170v-454v |
110v-240v/230v-460v |
|
Type |
Capacity |
Capacity |
|
Rated capacity/kva |
Rated power/kw |
Rated capacity/kva |
Rated power/kw |
|
FLD162D |
12.5 |
10 |
15.6 |
12.5 |
|
FLD162E |
15 |
12 |
18.8 |
15 |
|
FLD162F |
17.5 |
14 |
21.9 |
17.5 |
|
FLD162G |
25 |
20 |
31.3 |
25 |
|
FLD182H |
30 |
24 |
35 |
28 |
|
FLD182J |
35 |
28 |
40 |
32 |
|
FLD182K |
37.5 |
30 |
46.9 |
37.5 |
Jiangsu Farrand Generator Technology Co., Ltd is a professional manufacturer of self-excited synchronous generator integrating researching, designing, producing, selling all by ourselves. We only produce FLD series generator with power between 5KW~1000KW, frequency 50Hz, 60Hz, rotating speed 1500 rpm, 1800rpm, 3000rpm, 3600rpm, voltage110V~690V, all interface according to international standard, matching all generators in the world. Such as Cummins, deutz, MTU, perkins, Volvo.
There are more than 200 staff collecting dozens of top intra-industry technical experts who make us strong research and manufacturing ability. We carry out high standard technical regulation, techniques, strict quality inspection and mature quality guarantee system in order to manufacture world-class high quality motors.
We adopt strict and scientific enterprise management and aim at higher, faster and newer in a leapfrog development to provide high quality products and service for customers at home and aboard in order to lead the competitors and grow to be famous modern enterprise, Sincerely wish to cooperate with friend all over the world.
