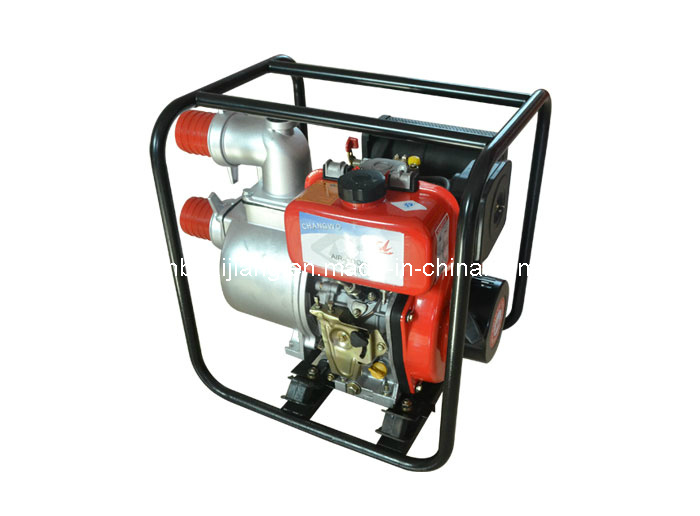

Features and benefits:
1, Self-suction structure
2, Powered by super light CHANGWO diesel engine
3, Big fuel tank optional, assured of hours continuous operation
4, Mainly used in gardening, irrigation & other water supply fields
5, Die-casted aluminum pump with qualified mechanical sealing device
MODEL
|
CW50 B/L/LE
|
CW80 B/L/LE
|
CW100 B/L/LE
|
Pump Type
|
Die-casting Aluminum Self-Priming Pump
|
Engine Model
|
CW170F(E)
|
CW178F(E)
|
CW186FA(E)
|
Displacement(L)
|
0.211
|
0.296
|
0.406
|
Inlet Diameter(mm)(in)
|
50(2)
|
80(3)
|
100(4)
|
Outlet Diameter(mm)(in)
|
50(2)
|
80(3)
|
100(4)
|
Maximum Flow(m³/h)
|
36
|
60
|
96
|
Maximum Lift Head(m)
|
22
|
22
|
16
|
Maximum Suction Head(m)
|
8
|
8
|
8
|
Rotation speed (rpm)
|
3600
|
Rated Power(KW)
|
2.8
|
4
|
6.3
|
Dimension(L× W× H)mm
|
490x405x480
|
558x450x520
|
650x510x560
|
Packing Size(L× W× H)mm
|
515x430x510
|
585x475x550
|
665x510x620
|
N. W. /G. W (kg)
|
39/41
|
49/51
|
63/66
|
Loading Quantity
(20GP/40GP/40HQ)
|
236/480/600
|
192/384/384
|
140/280/280
|
Starting system
|
B: Small fuel tank; L: Large fuel tank; E: Electric start
|
