Generator Manufacturers and Factories

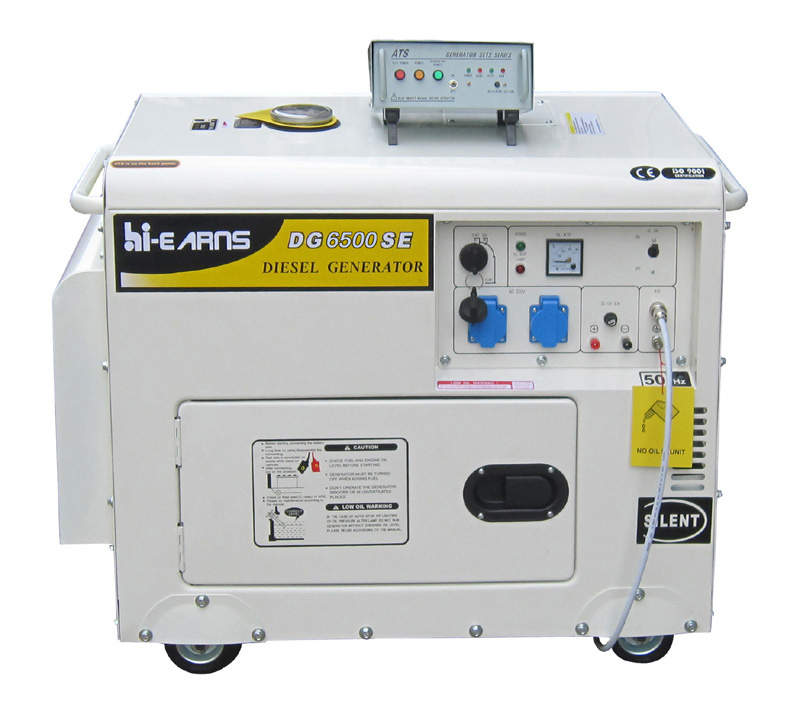

Home Generator Products 2-5kw Silent Power Diesel Generator Set (DG6500SE New Type)

2-5kw Silent Power Diesel Generator Set (DG6500SE New Type)

2-5kw Silent Power Diesel Generator Set (DG6500SE New Type)
Price: US $ 455-465/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union


Warranty policy:

Guarantee for one year or 1000 hours whichever reach first from ex-factory date.

During the guarantee period, Hi-earns Power will provide the free easy-damageable spare parts of diesel

engine caused by our  quality of production or raw material.  After expiration, Hiearns Power  provides cost

spare parts maintenance of gensets.

Our service:

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free uncder

   the condition of this spare parts are not intentionally damaged.
GENERATORModelDG6500SE
Frequency(HZ)5060
Max. output(kw)55.5
Rated output(kw)4.65
Rated. AC voltage(v)120, 220, 230, 120/240
Power factor(cosΦ )cosΦ =1
DC output (v)12V/8.3A
PhaseSingle phase
Alternator typeself-excited, 2-pole, single phase alternator
Starting systemElectric
Operating noise level(at 7m)68~72
Fuel tank capacity(L)16
Continues work(hr)8.57.8
ENGINEModelHR186FA
Engine typeSingle-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm)86× 72
Fuel0# or -10#light diesel oil
Lubricatiom oil volume(L)1.65
Combustion systemDirect lnjection
STANDARD FEATURESVoltmeteryes
AC Output Socket2
AC circuit breakeryes
Oil warning lightyes
Oil alertyes
OPTIONAL FEATURESDC circuit breakeroptional
Calculagraphoptional
Big Wheeloptional
Three phase voltageoptional
Current meteroptional
ATSoptional
Remote controloptional
Weldingoptional
DIMENSIONSDimension(L× W× H)(mm)950× 560× 710
Net  weight(kg)155
20FT72
Prod Model: DG6500SE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model: Hr186fa
Engine Power: 10 HP
Generator Output: 5kw
Noise Level: 72 DBS
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Oil Cooling
Output Type: AC Single Phase
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.

Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.

"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
