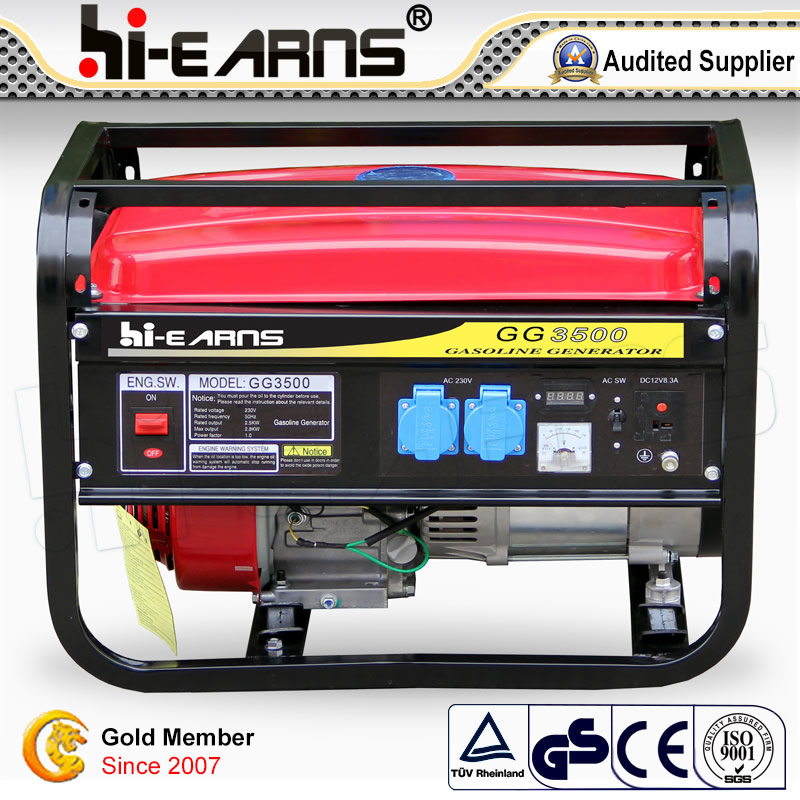

Gasoline Generator (GG3500)
Industrial Gasoline Generator (Four-Stroke, Air-Cooled, OHV Gasoline Engine)
Model: GG1500, GG2500, GG3500
Frequency (Hz): 50, 60, 50, 60, 50, 60
Max. Output(kw): 1.0, 1.1, 2.0 2.2, 2.5, 2.8
Rated output (kw): 1.1, 1.5, 2.2, 2.5, 2.8, 3.0
Rated. AC voltage (V): 120, 220, 230, 120/240
Power factor (cosΦ ): COSΦ =1
DC output (V): 12V/8.3A
Phase: Single phase
Alternator type: Self-excited, 2-pole, single phase alternator
Starting system: Recoil
Operating noise level(at 7m): 60, 61, 65, 69, 67, 69
Fuel tank capacity(L): 4.2, 15
Continues work(hr): 6, 5.5, 13, 11, 11, 9
ENGINE
Model: HR154, HR160, HR200
Engine type: Four-stroke, air-cooled, OHV gasoline engine,
Bore*stroke (mm): 52x48, 68x45, 68x54
Fuel: Unleaded gasoline
Lubricatiom oil volume (l): 0.37, 0.6
Combustion system TCI: (transistor ignition)
STANDARD FEATURES
Voltmeter: Yes, yes, yes
AC Output Socket: Yes, yes, yes
AC circuit breaker yes: Yes, yes
Oil warning light: Yes, yes, yes
Oil alert yes: Yes, yes
OPTIONAL FEATURES
DC circuit breaker: Optional, optional, optional
Oil warning light: Optional optional optional
Calculagraph: Optional, optional, optional
Wheel and handle: No, no, no
Current meter: Optional optional optional
Dimension
Dimension(L*W*H)(mm): 430x345x315, 590x425x435
Dry weight (kg): 26, 41, 43
20FT: 580, 230, 230
| generator | model | GG3500 |
| Frequency (HZ) | 50 | 60 |
| Max. Output (kw) | 2.8 | 3 |
| Rated output (kw) | 2.5 | 2.8 |
| Rated. AC voltage (V) | 120, 220, 230, 120/240 |
| Power factor (cosΦ) | COSΦ=1 |
| DC output (V) | 12V/8.3A |
| Phase | Single phase |
| Alternator type | self-excited, 2-pole, single phase alternator |
| Starting system | recoil |
| Operating noise level(at 7m) | 67 | 69 |
| Fuel tank capacity(L) | 15 |
| Continues work(hr) | 11 | 9 |
| engine | Model | HR200 |
| Engine type | Four-stroke, air-cooled, OHV gasoline engine |
| Bore*stroke (mm) | 68*45 |
| Fuel | Unleaded gasoline |
| Lubricatiom oil volume(l) | 0.6 |
| Combustion system | TCI(transistor ignition) |
| standard features | Voltmeter | yes |
| AC Output Socket | yes |
| AC circuit breaker | yes |
| Oil warning light | yes |
| Oil alert | yes |
| optional features | DC circuit breaker | optional |
| Oil warning light | optional |
| Calculagraph | optional |
| Wheel and handle | no |
| Current meter | optional |
| dimensions | Dimension(L*W*H)(mm) | 590*425*435 |
| Dry weight(kg) | 43 |
| 20FT | 230 |
