2.5kw Inverter Generator - Tiger Manufacturer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
TIGER Intelligent design, Reliability quality, Rapid service, We bring you better life!!! Since 1995 year

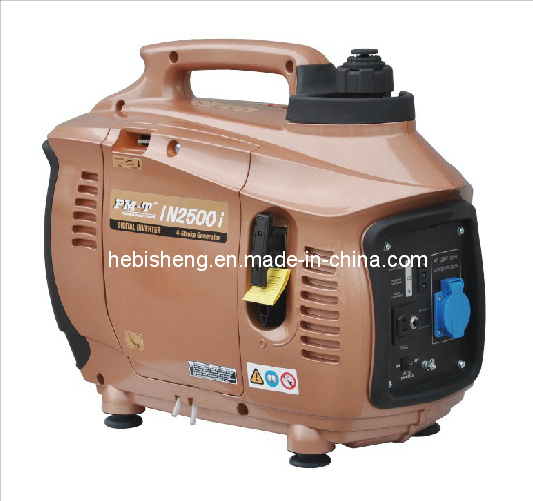

TIGER / PM-T DEGITAL INVERTER GENERATOR
FUEL CONSUMPTION LOWER , NOISE QUIETER , USE FOR SAFER , WEIGHT LIGHTER THE MOST SMARTEST OF GENERATORS
Designed for better life!!!
Advanced Inverter Technology Provides Reliable Power, Ideal for sensitive equipment computers, TV etc.
It's durable , lightweight, compact design with built-in handle offers portable power for the outdoors , An emergency,
Construction , the home, Events ,Heating and Cooling.
Lightweight and compact up to 40% lighter than a standard generator of equal watts .Built-in-handle-move with minimal effort.
Super Quiet and campground friendly full enclosure drastically reduces noise.
Operation high throttle - for large loads or battery charging immediately,
Eco throttle helps to reduce fuel consumption, operating noise and exhaust emissions level.
Electronic Overload protection circuit breaker protected. Shuts the engine down if oil reaches an unsafe operating level and Prevent engine damage from overheating due to lack of oil.
At-a-glance status Lights LED lights on the control panel indicate system status.
Model number
|
IN2500i
|
GENERAL FEATURES
|
Voltage
|
230V
|
Maximum power LTP
|
2200@4000-4500rpm
|
Continuous power COP
|
2000@3800-4300rpm
|
Nominal Current
|
8.7A
|
Power factor
|
1
|
Frequency
|
50Hz
|
Phases
|
SIN WAVE
|
Battery Charger
|
High idel/Lower idel: 10-15V/15-20V
|
ENGINE
|
Engine Model
|
TGF120
|
Bore x stroke
|
φ62mmx42mm
|
Fuel
|
Unleaded gasoline#93
|
cylinders
|
Single
|
Displacement
|
127cc
|
Air intake
|
Natural Aspiration
|
Start system
|
Manual start
|
Speed
|
3000-4500rpm
|
Oil capacity
|
0.6L
|
Fuel consumption full load
|
1.16L/H
|
Oil deficiency shut-down
|
Yes
|
Fuel tank capacity
|
3.6L
|
Running time at 1/2 load
|
6h
|
Noise Level (2000/14/EC)
|
68dB(A)
|
ALTERNATOR
|
Poles
|
27
|
Alternator type
|
Permanent Magnet Alternator
|
Type of protection
|
CLASS F (IP23)
|
Speed
|
3000-4500rpm
|
Continuous power
|
2000W
|
Power factor
|
1
|
Active continuous power
|
2000W
|
DHT
|
≤3%
|
Maximum overload
|
2200W
|
Voltage regulation system
|
Closed cycle control
|
Protective swith
|
Electronic overload protection
|
OVERALL DIMENSIONS AND WEIGHT
|
Net weight
|
22.5KGS
|
Gross weight
|
25KGS
|
Dimensions LXWXH
|
567x300x466mm
|
Dimensions packing LxWxH
|
597x330x496mm
|
Accessories & Tool-kit
|
1.Double-head screwdriver
2.Spark plug socket spanner
3.8-10 socket spanner
4.12 volt charging leads
Spark wrench,Spanner,manual
|
| Prod Model: |
IN2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Power: |
2.5kw |
| Rated Voltage: |
220V/230V/240/110V/120V |
| Engine Type: |
4-Stroke |
| Color: |
Yellow,Orange, Blue , Green etc |
| Noise: |
47dba - 57 Dba |
| Dry Weight: |
22.5kgs |
| Fuel Consumption At Full Loaded: |
1.8L/Hour |
| Fuel Tank: |
3.6L |
| Displacement: |
127cc |
| Certificate: |
CE,TUV , EPA, Carb |
| Output Type: |
AC Single Phase |
Jiangsu Tiger Yacht Manufacture Co., Ltd is the first and one of largest manufacturer on Outboard motor, Gasoline generator and Inverter generator item.
Head office in Suzhou city center, Jiangsu, Factory location in Haimen city, Nantong, Jiangsu China.
Our group company have SAIL outboards, inflatable boat, RIB boat, aluminum boat, PMT inverter generator and all brands of outboards propeller full size etc.
SAIL 4-stroke outboard motor size: F2.5, F4, F5, F6, F9.9, F15, F9.9E, F15E; 2-stroke outboard motor size: OTH9.9, OTH15, OTH30, OTH40, OTH30E, OTH40E.
Tiger generator series: TG950, TG2700, TG4700, TG6700.
PMT and Tiger Inverter generator is: IN800(0.75KW), IN1800(1.6KW), IN2500(2.2KW), INF2800(2.5KW), INF3800(3KW), INF6800(5KW).
SAIL Inflatable boat S shape and E shape: 2.3m, 2.7m, 3m, 3.3m, 3.6m, 3.8m, 4.3m, 4.7m, 5m, 5.5m, 6m, 6.5m, 7m, 8m.
Available on plywood, aluminum, air deck etc floor.
SAIL RIB boat: RIB270, RIB300, RIB330, RIB360, RIB420, RIB470A, RIB470B, RIB470C, RIB520C, RIB580B, RIB580C, RIB680(with twin engine ), RIB730C (single engine ), RIB730B (twin engine ).
New model developing plans further:
Outboard motor: 4-stroke 20HP to 100HP range.
New inverter generator with our own core technology and copyright, It's first generation in this world new technology. The new inverter generator from 1KW to 20KW will be releasing into the market further soon.
Our sail outboards are built with high quality standards and we have thrived to exceed the expectations of the export markets.
Our aim is "To continuously develop new products and improve quality, to shorten the gap with international level and create famous Chinese outboard motors brand".
SAIL / Tiger / PM-T productions with intelligent design, reliability quality, rapid service, bring you better life.
