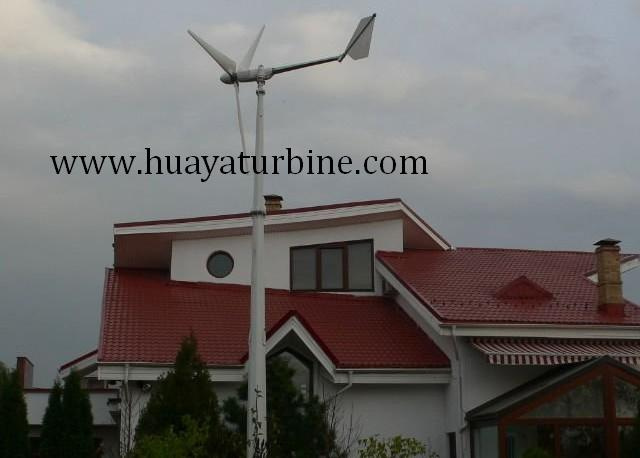

FD3.8-2.5kw wind turbine
On grid working system
Off grid working system
We have FD4-2.5kw, for lower average wind speed place
Rotor Diameter (m) 3.8
Material and number of the blades Reinforced fiber glass*3
Rated power/maximum power 2500/3600w
Rated wind speed (m/s) 10
Startup wind speed (m/s) 2.5
Working wind speed (m/s) 3~35
Survived wind speed(m/s) 50
Rated rotate speed(r/min) 350
Working voltage DC24V/48V/120V/240V/300V
Generator style Three phase, permanent magnet
Charging method Constant voltage current saving
Speed regulation method Yaw+ Auto brake
Weight 90kg
Tower height (m) 9
Suggested battery capacity 12V/200AH Deep cycle battery 8pcs
Life time 15years
Ningjin huaya industry Co., Ltd. is specialized manufacture of small wind turbine generator.
Form the first 50W, 100W wind turbine to 300W-20kw wind turbine, we past 15 years. Now we have the steady off-grid working system, 1kw, 2kw, 3kw, 5kw, 10kw, 20kw on-grid working system. To provide the steady system is our aim.
Blades:
The blade form is chosen by wind tunnel test. The aerofoil with the highest wind speed utilization ratio is used. The wind energy transfer efficiency can reach 0.42.
Generator:
ND-fe-b permanent magnet. Packaged type tangential grinder magnetic circuit rotor; High magnetic flux density, small cubage, good manufacturing technics and high capability.
Adopt Sweden SKF bearing.
Close transmission slip ring, the cable will not enlace
Tower:
Tower with guy wires, tilting up tower, hydraulic tower, independence tower. It can be designed according to your request.
Now the wind turbine system is working in more than 30 countries. To provide the good, steady system is our aim.
For more products details, pls contract with us! We will provide you quickly and professional feedback.
