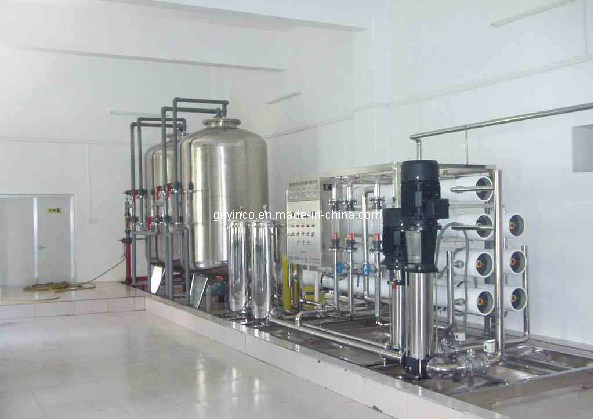

Reverse Osmosis/Water Treatment Equipment/RO System/Water Treatment
Packaging & Delivery
Packaging Detail: Wooden case, according to the customers' requirements.
Delivery Detail: 30days or depends on yours' ordering quantity.
Specifications
Water treatment:
1, desalt rate over 99
2, capacity: 500-50000LPH
3, material: 304 S. S
4, Conductivity below 20
Water treatment:
1, desalt rate ≥ 99
2, capacity: 500-100000LPH
3, material: 304 S. S
4, Conductivity≤ 20
RO Pure water treatment plant is for producing drinking water, foods factory, beverage factory, fruit&vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.
It's simply operation and has long lifespan.
--------------------------------------------------------------
Main complonents:
RO membrane(Hydecanme),
High pressure pump(South. China)
Electricity conduction meter
Over high or over low pressure protection failities
304 Stainless steel
Suitable for investment for MID-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
Bacter no.: Not more than 20
----------------------------------------------------------------
Installation:
Raw water pump+silica sand filter+active carbon filter+softener + micron filter+high pressure pump+RO system.
-------------------------------------------------------------------
Plant process:
1. Raw water pump-- provide the pressure to silica sandfilter/active carbon filter
2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water
4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
| Model No. | Capacity (M3/h) | Power (kw) | Recovery Rate (%) | Size: LX W X H (mm) |
| RO-500 | 0.5 | 1.5 | 50 | 2500X1000X2800 |
| RO-1000 | 1 | 2 | 50 | 3500X1200X2800 |
| RO-2000 | 2 | 4 | 50-60 | 6500X1500x2800 |
| RO-3000 | 3 | 4.5 | 55-65 | 7500X1500X2800 |
| RO-4000 | 4 | 6.5 | 55-65 | 7500X1500X2800 |
| RO-5000 | 5 | 11 | 60-70 | 10000X2500X3500 |
| RO-6000 | 6 | 11 | 60-70 | 10000X2500X3500 |
| RO-8000 | 8 | 18 | 60-70 | 10000X3500X3500 |
| RO-10000 | 10 | 20 | 60-70 | 10000X4000X3800 |
| RO-20000 | 20 | 30 | 70-75 | 15000X5000X5000 |
| RO-30000 | 30 | 40 | 70-75 | 20000X6000X5000 |
| RO-50000 | 50 | 50 | 70-75 | 30000X8000X5000 |
