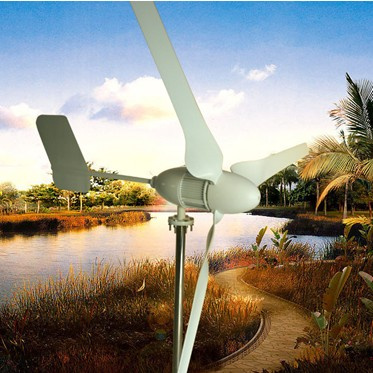

1. Characteristics; Nacelle: Adopting nodular cast iron, high structure strength and excellent durability.
2. Generator: Rotor adoptNdFeB quality permanent magnet material, and stator using red copper coiling, high temperature resistance, good conductive performance and high efficiency.
3. Blades: Fiberglass-Reinforced Plastic surface with Polyurethane fill inside, two pieces of reinforced fiberglass rib goes from top to bottom, high construction strength and water proof.
4. Control system: PLC intelligent control, adopting international famous electrical components, humanization design, all ofthe operation data displays on touch screen interface
5. Protection system: Dump load and electronic brake, double protection ensure the security.
6. GPRS (option): Remote monitoring andcontrol, easy to detecting system operating situation anytime and anywhere even by mobilece
|
Parameter |
|
Model |
GuangMang |
|
Rated power(W) |
1000 |
|
Rated voltage(V) |
24/48 |
|
Rated current ( A ) |
41/20 |
|
Rotor diameter(m) |
1.96 |
|
Start-up wind speed (m/s) |
2.5 |
|
Rated wind speed(m/s) |
12 |
|
Survival wind speed(m/s) |
35 |
|
Working form |
permanent magnet synchronous |
|
Rotating direction |
Clockwise |
|
Blade NO.( piece ) |
3 |
|
Blade material |
Nylon |
|
Tower height (m) |
6 |
|
Suggest supporting capacity battery |
12V200AH * 2 |
|
Supporting inverter type |
Single-phase sine wave |
