Home Generator Products 1kw Vertical Axis Wind Generator for Rooftop (FDV-1KW)

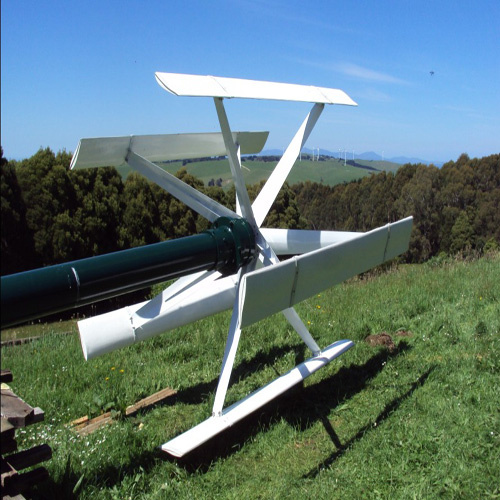

1kw Vertical Axis Wind Generator for Rooftop (FDV-1KW)

1kw Vertical Axis Wind Generator for Rooftop (FDV-1KW)
Price: US $ 1560-2593/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
 1kw Vertical Axis Wind Turbine (FDV-1KW)

- 1KW, 2KW, 3KW  Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.


-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop

PS: if you want to know  clearly  and completely   the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the  "view video " buttom below the main picture, then you will see the FDV-1KW wind turbine complete installing steps and working conditions.



Numbers of Blade
5  pcs
Material of BladeFRP Complex Resin
Diameter of Wind Rotor2m
Start (out-in) wind speed1.8m/s
Wind Rotor height2.4m
Security wind speed45m/s
Rated wind speed8m/s
Wind energy ratio45%
Generator rated power1kw
Max output power1.5kw
Generator TypeThree phase Permanent magnet generator
Power Output from Generator0-200V
Charging voltage48Vdc
Output voltage of InverterSingle phase 220-240Vac/50HZ  or 110-130Vac /60HZ
Stop methodMechanism or Electron for selection
Tower typeGalvanized tower
Tower height6m
Charging controlIntelligent control full-automatically (with overcharge protection)
Inverter power supplyPure sine wave
Battery Matching   (off-grid system)4Pcs 12V-150AH Lead-acid or colloid batteries
Grid tied inverter matching2KW grid tied inverter
Time of charging (off-grid type)About  8 hours


Packing
Details
Parts' NameDimensionGross Weight
Blades and connection pole2300× 800× 520mm108kgs
Tower and accessory6500× 155× 103mm48kgs
  Wind Turbine & accessory1700× 600× 600mm18kgs

Prod Model: FDV-1KW
Markets: North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Rated Power: 1kw
Blade Number: 5PCS
Diameter Of Wind Rotor: 2meters
Wind Rotor Height: 2.4meters
Phase: Three Phase
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.

The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:

- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)

-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)

-FDV series Vertical Axis Wind Turbine (300W-5KW)

-Wind & Solar Hybrid Street Light System (500W and 800W)

-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)

These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries

In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;

There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.

If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
