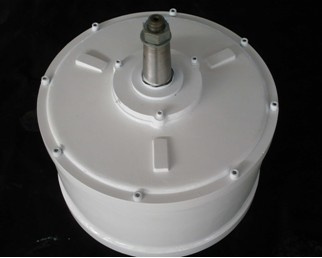

Generator type: Synchronous permanent magnet 3 phase AC
Magnetic steel material: 38SH NdFeB class of insulation: B
Housing material: Cast iron / aluminium shaft material: 45# steel
Rated rotate speed: 50 RPM
Rated voltage: 24VAC/48VAC/96VAC/120VAC/220VAC/240VAC
Grade of protection: IP54 weight: 96kg (cast iron) / 84kg (aluminium)
Start up torque: 8.82Nm (cast iron)/ 10.78Nm (aluminium)
Rated torque at rated speed: 315Nm
Remark: The design load electric resistance of above data is 2.3 Ω .
| 1KW50RPM 48V Vertical Generator Design Data |
| rpm | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 |
| no-load voltage ( Vac ) | 8 | 16 | 24 | 32 | 40 | 48.2 | 56 | 64 | 72 | 80 | 88.3 |
| load voltage (Vac) | 5 | 9.9 | 15 | 19.8 | 24.7 | 29.5 | 34.3 | 39 | 43 | 48 | 52.7 |
| load current (A) | 1.2 | 2.5 | 3.7 | 5 | 6.2 | 7.4 | 8.6 | 9.8 | 11 | 12.1 | 13.2 |
| output power(W) | 10.1 | 42 | 95 | 167 | 260 | 373 | 505 | 654 | 820 | 1001 | 1197 |
| torque (Nm) | 37 | 70 | 102 | 135 | 166 | 198 | 228 | 258 | 287 | 315 | 341 |
