Home Generator Products 1kw Inclined Jet Hydro Turbine System

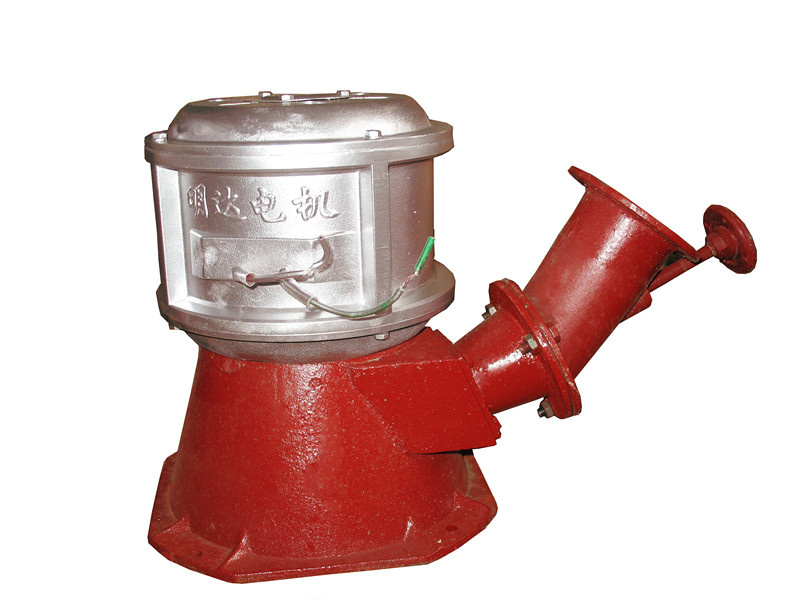

1kw Inclined Jet Hydro Turbine System

1kw Inclined Jet Hydro Turbine System
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Our Inclined-jet hydro turbine generator unit  is a new generation of single phase alternating current (AC) generator, which is suitable for hot and humid environment, with automatic voltage controller regulator (A.V.R.). It applies to inland waterways, household lighting or standby electric power for motors.
Working Principle
Water from the pressure forebay flows into the turbine nozzle through pipe. Its potential energy is converted to kinetic energy by the nozzle. The high speed water jet comes out from the nozzle strikes at the buckets (blades) at a certain angle (not in a tangential direction) against the rotating surface of the runner. The water flows into the buckets (blades) from one side and flows out from other side. Inclined-jet turbine generator only has single buckets (blades). It is applicable for the small-size and medium-size power station with water head ranges from 20m to 400m.
Structure and advantages
Our generators are in protected horizontal structure, whose protection degree is IP22, with rotating magnetic field and steerable excitation. Small in size but high in accuracy. Its frame and cover are all casted by iron, strong and durable. The iron coil of generator stator is laminated with 0.5mm thickness high-quality silicon -steel sheets. The pole coil is laminated by 1mm thickness electric steel. Conductor wire is made of high strength enameled wire with insulation grade B, and has went through special treatment of anti-mold, anti-moisture and anti-salt, etc. All of the materials are of high quality with low mammalian toxicity. The whole set is simple in structure, strong and durable and easy to be maintained.
styleWater head
(m)
Flow Rate
(m3/s)
Power
(kW)
Speed
(r/min)
Diameter
(mm)
XJ13-L-12/1x2.810-250.009-0.0151500-150090


Prod Model: XJ13-L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Type: Pelton
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
