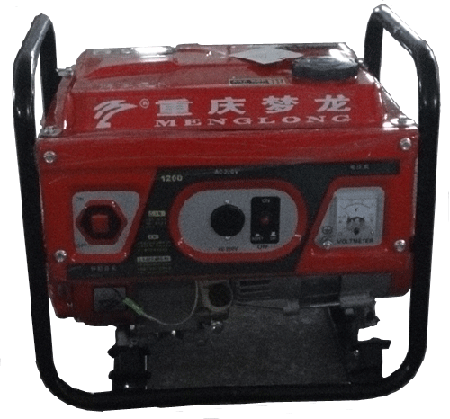

1kw gasoline generator QF1200
|
|
Gasoline generator |
QF1200 |
|
Engine |
Engine model |
152F |
|
Engine type |
Single cylinder, 4-stroke, air-cool, side valve, OHV25° tilt |
|
Bore*stroke(mm) |
52*46 |
|
Displacement(ml) |
97 |
|
Compression ratio |
5.6: 1 |
|
Max power(Hp/kw/rpm) |
2.5/1.9/3600 |
|
Oil capacity(L) |
0.35 |
|
Min fuel consumption(g/kw. h) |
≤ 450 |
|
Ignition |
Transistorized magneto |
|
Generator |
Rated voltage(V) |
110V/115V/120V/220V/ 230V/240 |
|
Rated current(A) |
3.2 |
|
Max power(kw) |
0.9 |
|
Rated power(kw) |
0.75 |
|
Rated frequency(Hz) |
50/60 |
|
Noise(≤ 7m) |
≤ 75dB(A) |
|
Generator working |
Has brushes, single phase |
|
Voltage regulation way |
AVR |
|
Starting system |
Recoil |
|
Fuel tank capacity(L) |
9 |
|
Handle and wheel |
Available |
|
Packing |
Dimensions(mm) |
455*355*415 |
|
Net/gross weight(kg) |
23/24 |
|
20FCL(set) |
≈ 340 |
|
40FCL(set) |
≈ 700 |
|
40HQ(set) |
≈ 840 |
Chongqing Smooth Engine Industry Co., Ltd. is founded in 2006, located in Guihua industrial zone Banan district Chongqing. The company covers an area of 4 acres and has over 30, 000 square meters of modern plant with convenient transportation.
The company mainly produces various types of gasoline engines, gasoline generator, gasoline water pumps, etc. With the manufacturing experience of 5 years, the company is one of the best manufacturers in Chongqing.
