Specifications

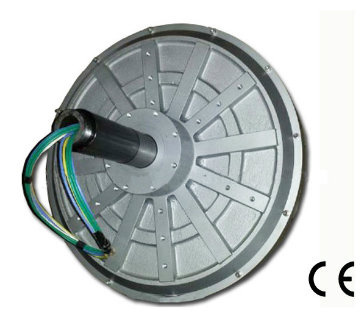

Low start torque Disc Coreless Magnet ac Generator low rpm
no need speed increaser low speed high output voltage Generators are free 3 years warranty, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Model | GDG-0.5KW-200 | 1KW-180 | 1KW-200 | 2KW-120 | 2KW-180 |
Rated Power | 0.5KW | 1KW | 1KW | 2KW | 2KW |
Rated Rotate Speed | 200 RPM | 180RPM | 200RPM | 120RPM | 180RPM |
Rated Voltage | 56VDC | 84vdc | 56vdc | 115dcv | 115dcv |
Rated Current | 9 | 12A | 17.9A | 10 | 17.4 |
Efficiency | >85% |
Wending Method | Y |
Insulating Resistance | 100Mohm Min(500V DC) |
Leakage Level | <5 ma |
Start Torque | <0.1N/M | <0.3 N/M | <0.3 N/M | <0.5 N/M | <0.3 N/M |
Phase Type | 3 Phase |
Structure | Out rotor |
Stator | Coreless wire coil |
Rotor | Rare Earth Permanent Magnet |
Generator Shell Diameter | 320 | 380 | 380 | 550 | 450 |
Generator Shell Length | 232 | 241 | 241 | 330 | 258 |
Weight | 20 | 32 | 32 | 75 | 51 |
Shaft drameter | 45 | 50 | 50 | 78 | 59 |
Generator shell material | Aluminum alloy |
Shaft material | Carbon steel |
Bearing | Deep groove ball bearing |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
