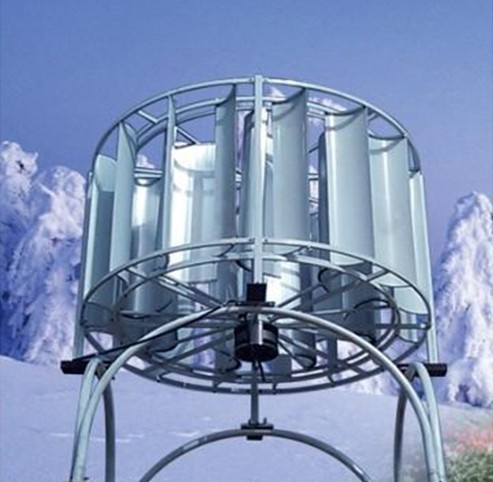

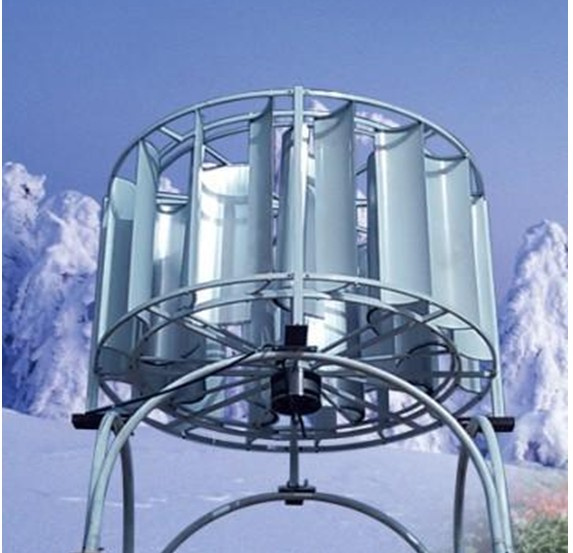

1kw-10kw Vertical Axis Wind Turbine Generator

1kw-10kw Vertical Axis Wind Turbine Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Small and medium-type wind turbine grid system solutions

The wind power station wind environmental conditions:

General requirements for the annual average wind speed of 3m / s or more, the annual 3-20m / s, the effective wind speed cumulative number of hours 3000h above.

Reference Platform:

(No need of using your sate electricity) wind power systems, power changes DC electricity by MPPT, then to charge the battery. Battery provides DC electriciy to MPPT. MPPT changes the DC electricity into AC electricity, provides power to the electricity load. Therefore, the stand-alone wind power system includes wind generator systems, MPPT and battery system.

Configuration:

50KW wind turbine: N pieces
Total capacity: N * 50KW
Tower: N sets
Control MPPT: N sets
Battery: N units
Supporting cables and materials: N sets
Installation and test cost: N USD.

Reference Platform NO. 2:

How to incorporate into the local power grid, the NO. 2 program can save a lot of cost of investment.

50KW wind turbine: N pieces
Total capacity: N * 50KW
Tower: N sets
Transformers: N sets
Rectifier: N sets
Supporting cables and materials: N sets
Installation and test cost: N USD.

Generating capacity is calculated as follows:

2000-3000 hours per year greater than 3 m / sec according to the local wind resource, power generation time of wind generator according to the time value is estimated at 2200 hours. Wind turbines in the wind conditions would not have been full-load power, the power rating of 30% of the conservative calculation. Generating capacity of this program should be: N × 50 × 2200 × 0.3 = N × 33000Kwh.
Calculated in accordance with industrial electricity prices X yuan / kWh, the annual direct benefits of X × N × 33000. Wind generator design life is 20 years, overall revenue: 20 × X × N × 33000.

Small and medium-type wind power generator system main components:

N pieces small and medium-type wind turbines connects together, they can make of certain high-capacity power supply, have formed themselves into a unit to the grid by grid-connected inverter in a wind turbine single and a single square wave 50Hz. Connect a reator into the grid from Three-phase AC output termination, it can be trimmed away harmonic, and it can automatically control the power grid and wind turbine energy reasonable match.

Compared with other wind generator, our advantages as following:


1). The same wind generator is installed at the same location, the average annual power generation of our wind turbines  wind power annual average generating capacity of more than 1/3 than others.

2). Wind energy conversion efficiency of wind power wind energy conversion is 42%, others efficiency is 25%

3). Our Wind generator is very safe, adapt tower structure installation. Can bear heavy wind, be able to withstand winds of more than 10 grade, others 5-6 grade.

4). It is made Aluminum alloy material, it is very firm.

5). Long working life. We have advanced assembly supply and develop their own lubrication system. The case of normal maintenance, service life of at least 25 years.

6). Advanced management system. We wind turbines can achieve more than wind turbines and grid composed of advanced network systems, network grid intelligent distribution and regulation.


Note: Large Capacity Power Supply, we suggest you buy Vertical Axis Wind Turbine Generators in parallel.
For example: 1MW=50KW*20Units Vertical Axis Wind Turbine Generator.









Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Blade: Multiple-Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Changzhou Jiaxue International Trade Co., Ltd. Limited It is located in the south of Changzhou city, it has very convienent transportation not only by air or by sea. It is only need one hour to Shanghai by train.

We are the professional supplier for CCTV Camera in China. Such as high speed dome camera, mini speed dome camera, IP dome camera, IR intelligent Pan/Tilt camera, Laser Pan/Tilt camera, Thermal Pan/Tilt camera, Network speed dome camera, Intelligent control keyboard and other security products. Our products have been certified by CE, FCC and RoHS, meanwhile, every component of our product come from the top brand in the world. We also provide 1-year warranty and life-long maintenance service.

Besides Security products, we also export all kinds of high quality Auto Lamp/Bumper/Grille, Vertical Axis Wind Generator, BBQ Grill, Mobilephone Car Holder, Disposable Skin Stapler, TV Satellite Finder, TV Wall Socket, TV Antenna Amplifier, and other products.

Make our customers enjoy the most satisfactory service and protect the client's market, which have been our company's constant aim. We have a keen desire to creating additional value for your global security business, supporting your company's better and more rapid development.

Every year we export many products to foreign countries, now our sales volume is increasing because we always pay more attention to the quality of the products and offer the most competitive price to our every customer.

Welcome to send us your enquiry, we must give you the best service and best quality with most competitive price, we believe we will have good cooperation under our perfect service.
