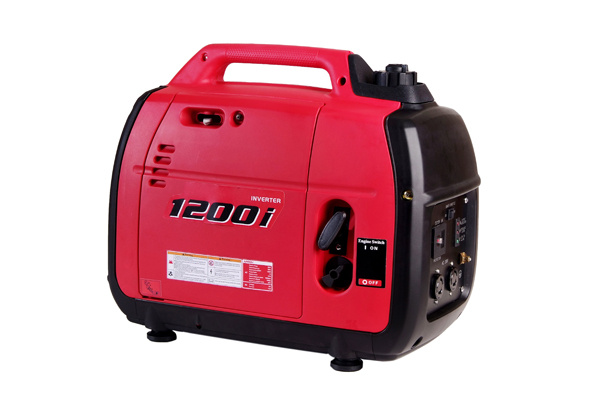

1. Inverter
2. Gasoline
3. Small type, suit for residential use, hotel
4. Easy to operate
|
Engine |
4stroke, OHV single cylinder |
|
Displacement |
105cc |
|
Bore× Stroke (mm) |
60× 37 |
|
Compression |
7.5: 1 |
|
Rated rev |
5000r/min |
|
Ignition system |
Non-contract transistorized ignition |
|
Start system |
Recoil hand-operated |
|
Fuel tank capacity |
1.06Gallon(4L) |
|
Fuel |
Unleaded gasoline |
|
Oil capacity |
0.106Gallon(0.4L) |
|
Oil |
SF or higher grade |
|
Rated AC frequency |
50Hz |
60Hz |
50Hz |
|
Rated AC voltage |
230V |
120V |
240V |
|
Rated AC current |
8.3A |
|
|
|
Rated AC output |
1, 900VA |
|
Surge AC output |
2, 000VA |
|
DC output |
12V 8.3A |
|
Total Harmonic Distortion |
≤ 3% |
|
Power factor cos |
1.0 |
|
Frequency stability |
± 0.1Hz |
|
Voltage stability |
± 4V |
|
Operating Noise Level |
58dB(7m) |
|
Continuous Operation at 1/2 Rated Load |
6.5h |
|
N. W/G. W (kg) |
20.6/23.5 |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
