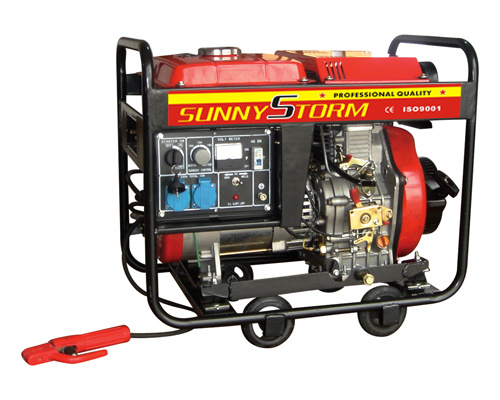

Engine Model: 5DF-4
Model: 186F
Type: Forced air-cooled 4-stroke OHV single cylinder, diesel engine
Displacement(ml): 406
Max output(hp): 10
Starting System: Recoil and hand-operated, Electric-operated
Deameter*Stroke(mm)DxS: 86x70
Rated rotation speed(r/min): 3000
Rated power(kw/ps): 5.7/7.75
Fuel consumption(g/kw/h): ≤ 4.08
Crank cumgyrate direction deasil: Viewed from flywheel
Lubricate mode: Pressure splash
Fuel Tank Capacity(l): 12.5
Continuous Operating Hours(h): 12
Engine Oil Capacity: 1.66
Operating Noise at 7m(db): 74-77
Generates Electricity
Phase Number: Single phase
Rated Frequency(hz): 50
Rated Voltage(v): 230
Power Factor: 1
Rated output(kw): 4.5
Rated(AC)(A): 11
DC Output(DC)(V): 14.5/24
Electric Welding
Empty load electric welding voltage(DC)(V): 65
Rated welding electric(DC)(A): 180
Electric welding work voltage(DC)(V): 25-30
Electric welding load persist rate: 50%
Electric welding adjustment scope(A): 80-210
Rated rotational speed(r/min): 3000
The way of excitation: Can control other
Work way: Persist run with 12hour
The way of joins: Transmission shaft iron connecting
Dimension LxWxH(mm): 750x490x655
Packing: Brown carton
N. W. /G. W. (kg): 120/123
20GP/40GP: 99/207
