180A 5kw Honda Engine Welding Gasoline Generator with CE
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |

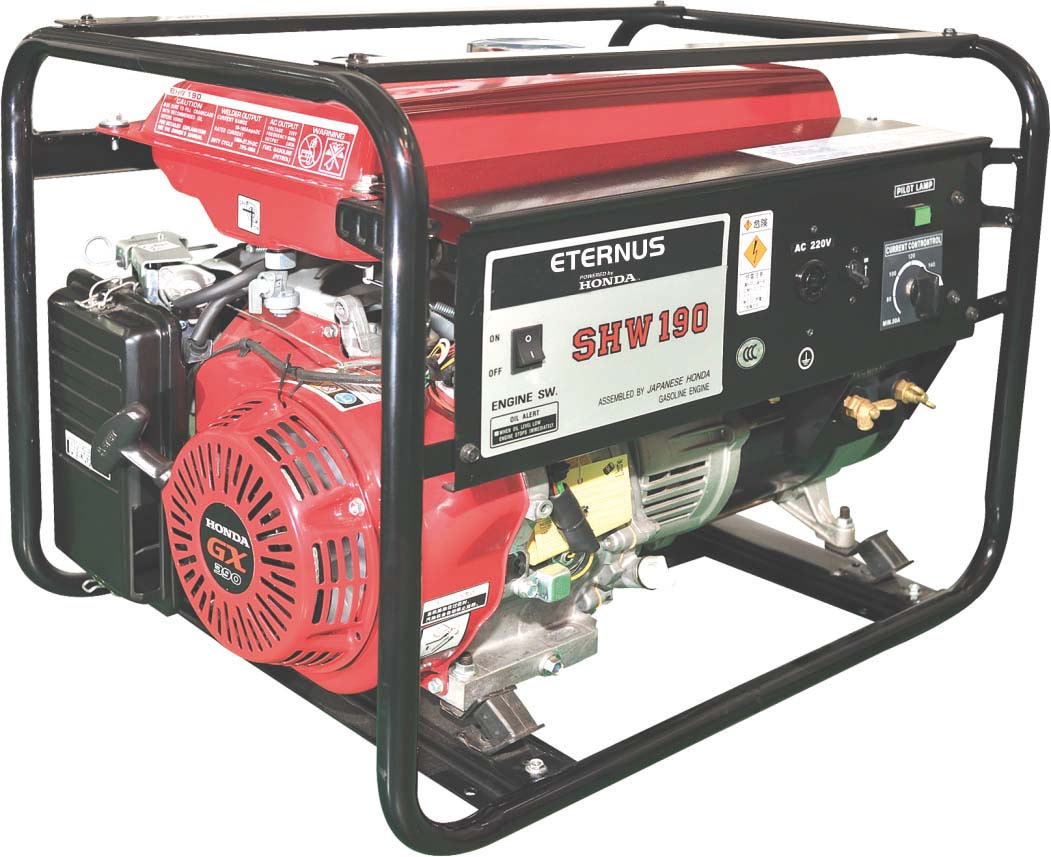

PRODUCT DETAILS180A 5kW Honda Engine Welding Gasoline Generator with CE
1) Engine: Honda GX390
2) Engine type: Air-cooled, 4-stroke, OHV, single cylinder
3) Starting system: Recoil start ( Electric start available)
4) Displacement: 389.2CC
5) Frequency: 50Hz/60Hz
6) Rated Voltage: 220V, 240V/120V, 120V both available
7) Rated power: 5.0KW(AC)
8) Rated Max. Current: 180A
9) Load voltage: 27.2V
10) Fuel tank capacity: 17L
11) Current range: 50-180
12) Wire: 100% copper coil
13) Max. Current duty cycle: 20%
14) Applicable welding rod diameter: 2.5mm-5.0mm
Be your nice engineer construction assistant.
Model | BHW190 | BHW210R | BHW300E |
| Engine |
| Model | GX390 | GX670 |
| Type | 4-Stroke OHV 1 cylinder | 4-Stroke OHV 2 cylinders |
| Displacement | 389 c m³ | 670 c m³ |
| Bore x Stroke | 88 x 64 mm | 77x72mm |
| Cooling system | Air cooling |
| Ignition system | Transistorized magneto ignition |
| Starting system | Recoil / Electric | Electric |
| Generator |
| Rated voltage | 220V(AC) | 220V(DC) |
| Rated frequency | 50Hz / 60Hz | 60Hz |
| Rated current | 9.1A(AC) | 15A(AC) | 10.0A(DC) |
| Rated output 50Hz | 5.0kVA(AC) | 5.0kVA(AC) | 5kW(DC) |
| Rated output 60Hz | 5.0kVA(AC) | 5.0kVA(AC) |
| Rated power factor | CosΦ = 1.0 |
| Phase | Single |
| Type | 2-pole,rotating type | 24-pole,rotating type |
| DC Welder |
| Rated Max.current (A) | 180 | 200 | 300 |
| Load voltage(V) | 27.2 | 28 | 32 |
| Current range(A) | 50-180 | 60-190 | 60-300 |
| Max.current duty cycle(%) | 20 | 32 | 20 |
| Applicable welding rod diameter | 2.5mm-5.0mm | 2.5mm-5.0mm | 2.5mm-6.0mm |
| Rated revolution | 3600r/min |
| No-load voltage(A) | 70 | 52 | 82 |
| Idle control | Automatic |
| Rectifier type | Six phase half wave rectifier | Three phase full wave rectifier |
| Other |
| Fuel tank capacity | 13L | 27.5L | 23L |
| Length x width x height(mm) | 690x510x 520 | 690x535x 540 | 953x617x622 |
| Net weight(kg) | 86 | 88 | 180 |
COMPANY PROFILEJIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing. The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable. BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on. The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc. Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc. Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
| Prod Model: |
BHW190 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Name: |
180A 5kw Honda Engine Welding Gasoline Generator W |
| Generator Set: |
Yes |
| Engine: |
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine |
| Fuel: |
Gasoline/Diesel |
| Output Power: |
0-30 Kw |
| Frequency: |
50/60 Hz |
| Cooling System: |
Forced Air Cooling |
| Current: |
AC/DC |
| Certificate: |
CE, ISO 9001:2008, Saso, Tlc |
| Lead Time: |
30 Days |
| Output Type: |
AC Single Phase |
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY Co., Ltd. is a HONKONG-funded enterprise, which is located in the Pearl River Delta of Guangdong nearby HongKong, Macao and Taiwan with convenient transport service.
BAODELI is specialized in research, developement, manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems. BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001: 2008, CE, SASO, 3C and JB/T 10304-2001
Our company was established in 2004, in generator manufacturing industry has 10 years of technical research, specializing in the production of gasoline and diesel generators, water pumps and various kinds of garden tools.
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for Honda, VANGUARD, MITBISHI and KOHLER engines with professional comprehensive performance test systems, the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with Honda, KOHLER and VANGUARD engines. And 8 KW ~20KW diesel generator sets Wits MITSUBISHI, Cummins and Changzhou diesel engines. The units are professional design, light, low noise, durable.
BAODELI strictly implements Japanese technoloogies, process assembly, compact units, powerful output, electric AVR adjustment, stable voltage, simple operation, convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon, bank, railway, oil field, construction, army, security systems etc.
Our products had sold in domestic market and exported to Europe, South America, Southeast Asia, Hongkong and Taiwan etc.
Science and technology as guide, strive for survival on the basis of quality as the tenet of BAODELI, which are offering the environment protection and high quality products.
