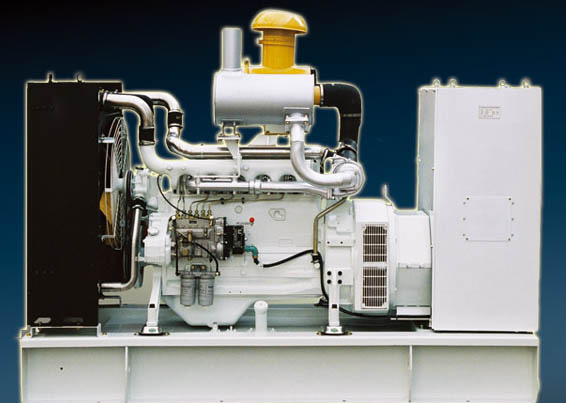

1650kVA Deutz Diesel Genset (BDEX1320)

1650kVA Deutz Diesel Genset (BDEX1320)
Price: Negotiable/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T
1650kVA Deutz Diesel Genset

GENSET Specification of China genset
Model: BDX1320
1. DEUTZ GENSET specification:
GENSET main specifcaiton
Continuous Output 1200KW / 1500kVA
Standby Output 1320KW / 1650kVA
Rated Power Factor COSΦ =0.8(lagged)
Rated Output Voltage 400V/230V
Rated Current(Continuous/Standby) 2164.8A/2381.3A
Rated Speed 1500rpm
Rated Frequency 50Hz
Starting Control Method Auto Start/Handle Start
Dimension(mm) 4920*1710*2280
Genset Weight(KG) 8570kg
Fuel Consumption(100% Load)(g/kwh) 198g/kwh
Noise(LP7m) 95dB(A)

2. Engine Specification
Brand Deutz
Model No. TBD620V12
No. Of Cylinder 12
Bore*Stroke 170*195mm
Starting Method 24V DC Voltage Bearing Starting Motor
Cooling Method Close Circuit Water Cooling
Speed 1500rpm

3. Alternator
Brand Faraday (Engga, Marason, Leroy-somer, Stamford optional)
Model No. FD7A-4
Rated Power/Capacity 1200KW / 1500kVA
Rated Voltage 400V/230V
Output Factor COSΦ =0.8(lagged)
Insulation Class H Class
Protection Class IP21
Wiring Methods 3 Phases and 4 Wires
Voltage Adjustment Methods AVR
Output Frequency 50Hz

4. Control System
Brand DeepSea From England
Model DSE7320

Our company is a professional manufacture of generator set. We can provide our customer diesel generator set, gas genset, power generator, mobile trailer genset, silent generator set, biogas genset. We also support all kings of genset brands such as Cummins diesel genset, mtu genset, perkins diesel generator set, DEUTZ genset
Prod Model: BDX1320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Prime Power: 1200kw/1500kVA
Standby Power: 1320kw/1650kVA
Rated Voltage: 400/230V
Rated Frequency: 50/60Hz
Power Factor: 0.8(Lagging)
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
