1. High conversion efficiency based on innovative photovoltaic technologies
2. High reliability with guaranteed +-%power output tolerance
3. Withstands high wind-pressed and snow load, and extreme temprature variatons
4. 25 years power output transferable warranty(80% of minimum output power)
5. 5 years products warranty

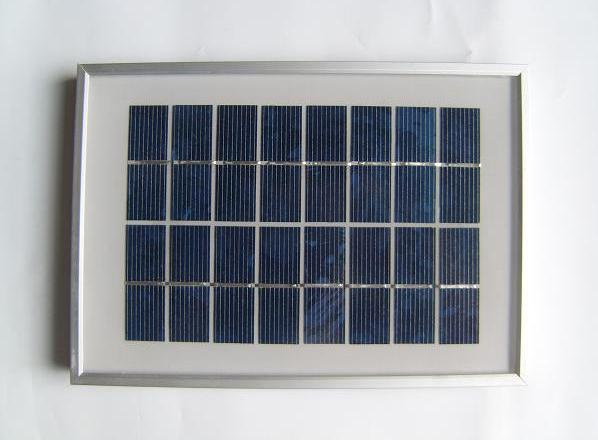

Solar module: 15w
Model
Solar module: 15w
Maximum Power at STC
15w
Power tolerance
± 3%
Eff. Of cells
Above16%
Kind of cell
Polycrystalline silicon
Maximum power voltage (VMP)
18.00V
Maximum power current(IMP)
0.84A
Short cuircuit voltage(ISC)
0.91A
Open circuit voltage(VOC)
21.24V
Dimension
420*350*25mm
Warranty
5years warranty, 90% for 10years
80% for 25years
Solar module: 20w
Model
Solar module: 20w
Maximum Power at STC
20w
Power tolerance
± 3%
Eff. Of cells
Above16%
Kind of cell
Polycrystalline silicon
Maximum power voltage (VMP)
18.00V
Maximum power current(IMP)
1.12A
Short cuircuit voltage(ISC)
1.22A
Open circuit voltage(VOC)
21.24V
Dimension
535*350*35mm
Warranty
5years warranty, 90% for 10years
80% for 25years
Henan Qinyang Sanwei Guangfu CellL Co., Ltd estabished by may, 2009, which located at shanwangzhuang town industrial park, qinyang city, henan province, it is professional company that engaged in the solar cell component development, production and sales. Mainly produces various specifications silicon solar cells with high, middle, low efficiency, and the yearly capacity is 50MW.
We have first-class processing equipment, modern and standard processing workshop, as there have the technical back from the famous industry experts and scientific research institutions experts,
It make sure the continuity of prodution quality.
We insisting in the business philosophy of concentration, profession, absorption. The company policy is to win the market in good faith, to create a brilliant company in good qaulity. Wish with friends to work together to make efforts to create a better human living environment.
It is our honor that you visit us.
