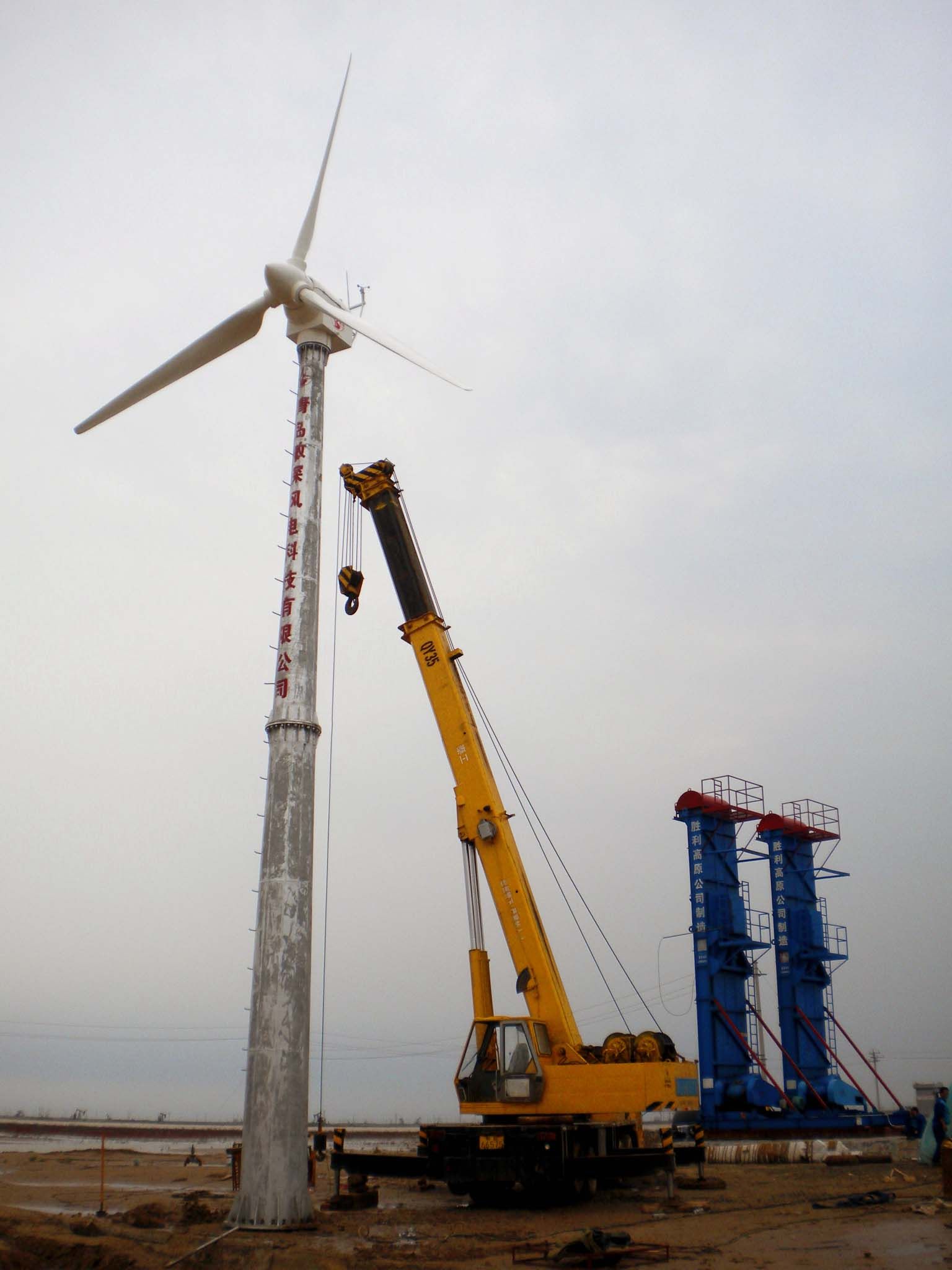

15KW horizontal axis wind turbine systems
This wind turbine with Air pitch function,
This wind turbine Introduction as below;
1, Features:
1). High power efficiency: Increase 10%-30% than traditional
2). Pitch controlled
3). Active brake
4). Maintenance free
5). Low start-up wind speed
6), OMORON PLC controller
7). CE certificate (CE NO. NO110726QMW513)and ISO9001: 2008 quality management system
2, 20KW wind power generator technical parameters;
Rated power (W): 15000
Max power (W): 17000
Cut-in wind speed: 2.5 M/S
Rated wind speed: 10 M/S
Cut-out wind speed: 25 M/S
Survival wind speed: 45M/S
Operating wind speed: 2.5-25M/S
Rated rotating speed(RPM): 200
Rated voltage (V): 384/560V AC
Inverter out-put voltage (V): 220/380V
Frequency: 50/60Hz
Protect grade: IP54
Blades material: FRP
Blade diameter: 8.2M
Pitch system: Variable Pitch by Air
Type of tower: Free standing tower
Height of tower: 15M(optional)
3, Pitch controlled element
The Air pitch PLC control program adjust blade angle to reduce the wind pressure on wind rotor when rotating speed of wind rotor achieves the rated rotating speed. Then wind turbine rotating speed slow down.
PLC control program is sensitive, intelligent, and can be used in variable environments.
4.15KW Wind Power Generator technology:
Direct drive 3-phase permanent magnet synchronous generator,
Ultra-low star-up wind speed. Low noise
Brushless and no slip ring generator, maintenance free
Pls feel free to contact me if you're interested in it.
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
